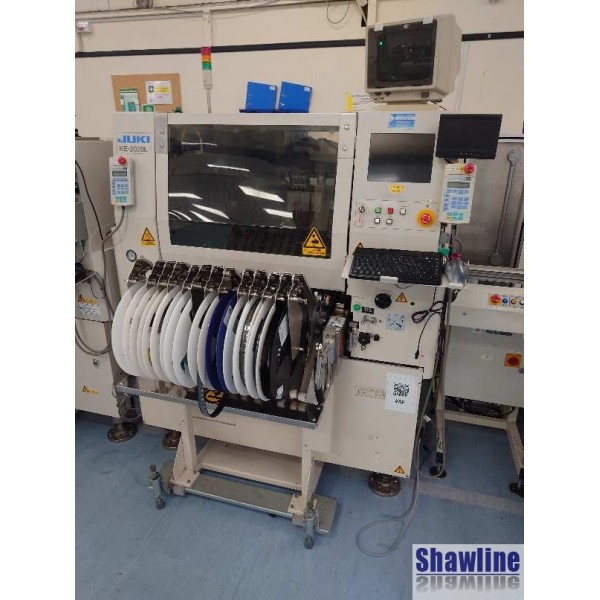

JUKI KE-2020L Flexmounter
USED, JUKI KE-202L Flexmounter, 2001
Categories
- Single Head with Four (4) placement nozzles
- 11,000 cph manufacturer's rated speed
- 0201 chips through to 74mm² capability with MFOV fine pitch grayscale analysis
- CyberOptics 'on-the-fly’ laser centering up to 33mm²
- FAST CHANGE detachable front and rear feeder banks
- Selection of feeders available at extra cost
- SMEMA upline/downline comms
- Service contract maintained from new
|
Manufacturer: |
JUKI Corporation, Tokyo, Japan www.jas-smt.com |
|
UK Support From: |
Etek Europe Ltd., Prestwick, Scotland http://etek-europe.com/ |
|
Model: |
KE-2020L |
|

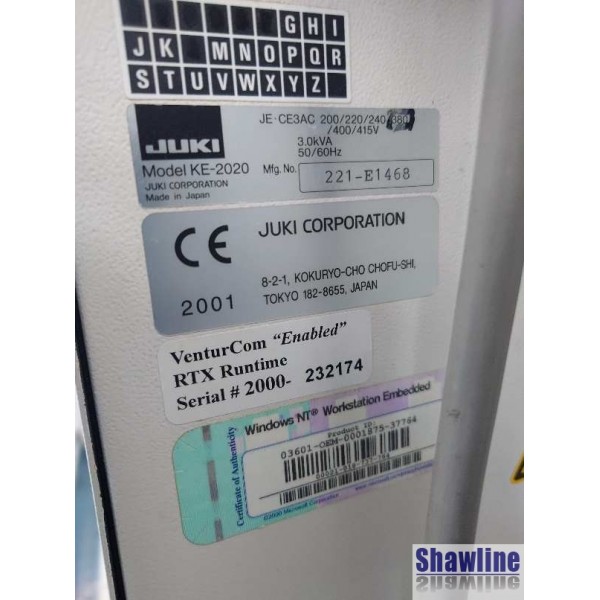

Serial No: |
221-E1468 |
|
Date of Manufacture: |
2001 |
|
Software: |
tbcf in Windows NT |
|
Production Hours: |
2/3 shifts - service contract maintained |
|
Description: |
High speed multi-functional assembler |
|
SMD Range: |
0201 Chip to 50mm sq SFOV fine pitch down to 0.4mm pitch |
|
Placement Accuracy: |
± 0.08mm @ 3 sigma |
| 8mm Feeder Capacity: |
80 (all sizes available) |
|
Placement Speed: |
11,000 cph (laser), 1,800 cph (vision) |
|
Min. / Max. Board Size: |
50 x 30mm to 410 x 360mm (L x W) |
|
Component Clearance: |
Topside 12mm fly height, underside 40mm |
|
Power Supply: |
380v 3 phase 50/60 Hz 3 kVA |
|
Air Supply: |
5 BAR, 0.49 ±0.05 MPa @ approx. 250 L/min (8.8 cfm) |
|
Approx. Dims (L x D x H): |
1.50 x 1.71 x 2.05m (incl. light tower) |
|
Approx. Weight: |
1,510kgs (without feeders) |
|
Availability: |
EXW West Country from Q4-2026 |
