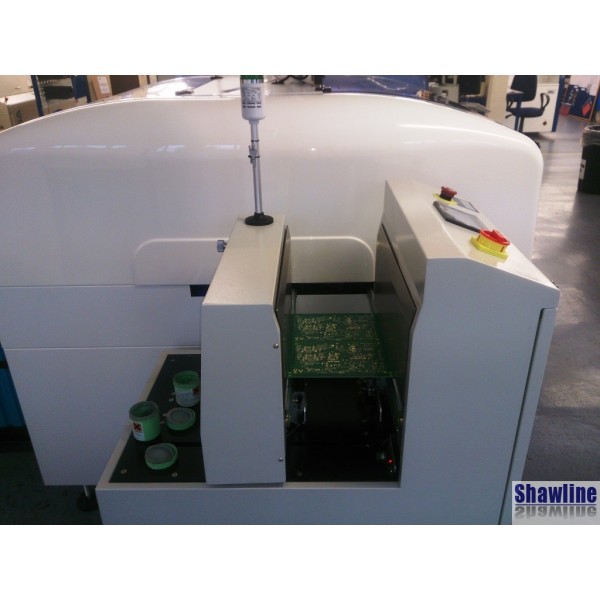

NUTEK Bare Board Destacker

USED Vac pickup type Bareboard Loader, requires attention

More details

Please Login to view our prices

  • Some functionality but requires some attention
  • Fully adjustable vacuum pickup
  • Smooth and parallel width adjustment (lead screw)
  • Pass thru' mode
  • SMEMA compatible
  • Left to right running
  • Front fixed rail
  • Keys for PLC cabinet misplaced



Manufacturer:

Nutek Singapore PTE http://www.nutek.com/

UK support from:

  Nutek UK Ltd., Colchester www.nutek-uk.com

Model:

  NTM210BLBP

Serial no:

  8381B

Date of manufacture:

22/09/1997

Production hours:

Very low, single shift

Description:

Automatic bareboard destacker

Board transfer height:

950 +/- 25 mm L to R fron fixed rail

Board length:

80 - 400 mm

Board width:

80 - 400 mm

Board thickness:

  0.6 - 2.5 mm

Max. board capacity:

  400 pieces (0.6mm)
Board edge clearance:

3 mm

Cycle time:

  10 secs

Power Supply:

230v single phase 0.4kVA

Air Supply:

4-6 BAR (120 l/min approx.)

Approx. Dims (L x D x H):

  1.4 x 1.4 x 1.5m

Approx. Weight:

160 kgs dry weight

Availability:

Ex-stock
