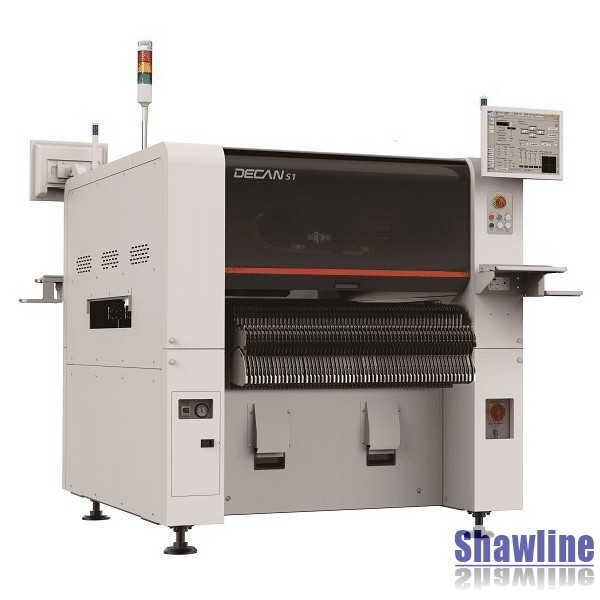

HANWHA Decan S1
NEW Hanwha Decan S1 (2025) unused in crate
Categories
- Single gantry with 10 placement spindles
- Linear motors (quieter, less maintenance)
- Auto nozzle changer
- Fly camera with FOV 16mm ‘on-the-fly’ centering ('Flying Vision')
- Fixed camera with FOV 42mm (55mm MFOV) believed to be fitted (may require license)
- Auto width SMEMA conveyor (fixed front, L to R)
- Complete with TWO (2) docking feeder carts
- Two Decan's supplied against an insurance claim. One Decan found to offer more than enough capacity so this one is surplus to requirements.
|
Manufacturer: |
Hanwha Semitech, Seoul, Korea https://www.hanwhasemitech.com/en/ |
|
UK Support From: |
Elite 7 Group, Bradford, UK https://www.elite7group.com/ |
|
Model: |
Decan S1 |
|
Serial No: |
tba |
|
Date of Manufacture: |
2025 (still in shipping crate) |
|
Production Hours: |
Zero |
|
Description: |
Fully automatic pick and place system |
|
SMD Range: |
03015 Chip to 16mm square with 10mm 'fly' height |
| 8mm Feeder Capacity: |
112mm (56 per docking cart, front and rear) |
|
Placement Speed: |
47,000 cph (fully optimised, manufacturer's rated speed) |
|
Placement Accuracy: |
±28μm @ Cpk≥ 1.0 (Chip), ±35μm @ Cpk≥ 1.0 (IC) |
|
Min. / Max. PCB Size: |
50L x 40mmW to 510L x 510mmW |
|
Min. / Max. PCB Thickness: |
0.38 to 4.2mm |
|
Power Supply: |
3 Phase AC200 / 208 / 220, Max. 3.5kVA |
|
Air Supply: |
5-7 BAR 5.0-7.0kgf/cm2, 50Nl/min (Vacuum Pump) |
|
Approx. Dims (L x D x H): |
1.43L x 1.74D x 1.49mH |
|
Approx. Weight: |
1,600 kgs (without feeders) |
|
Availability: |
Ex-stock USA |
