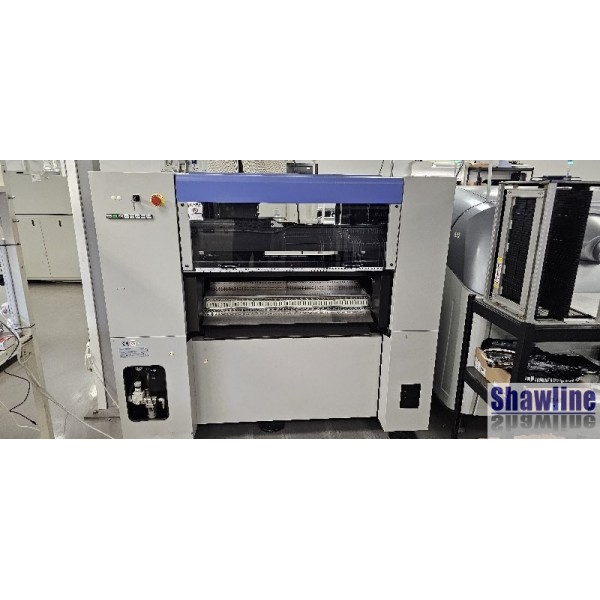

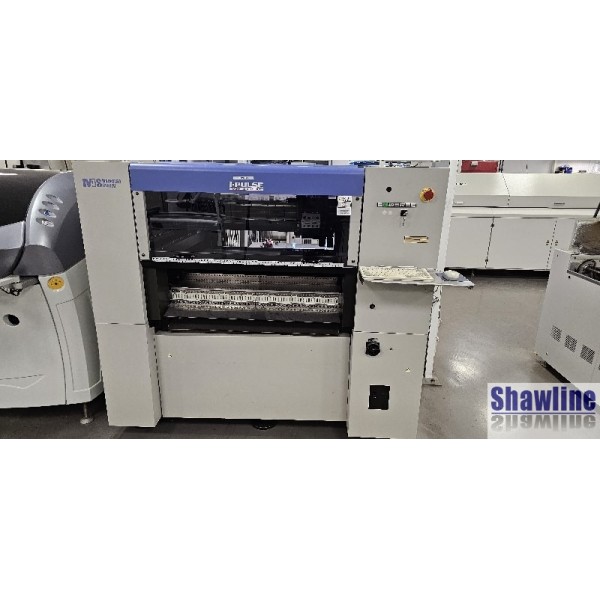

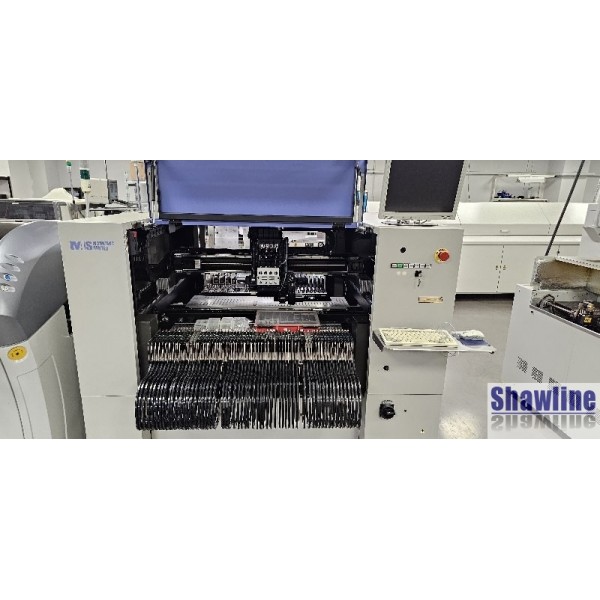

i-Pulse M4S
USED i-Pulse M4S, 2008
Categories
- 4 Placement Heads
- Auto nozzle changer
- Line Scan 'on-the-fly’ component centering
- Fixed upward camera
- Optional secondary downward camera (to view all feeders)
- In machine PCB buffering
- WindowsXP Pro operator interface
- Working demonstrations can be arranged
- Serviced and maintained by Blundell
- Used feeder package available (at additional cost)
|
Manufacturer: |
i-PULSE Co., Shizuoka, Japan http://www.ipulse.co.jp/ |
|
UK Support From: |
Blundell Production Equipment http://www.blundell.co.uk/ |
|
Model: |
M4S (LC1-300) |
|

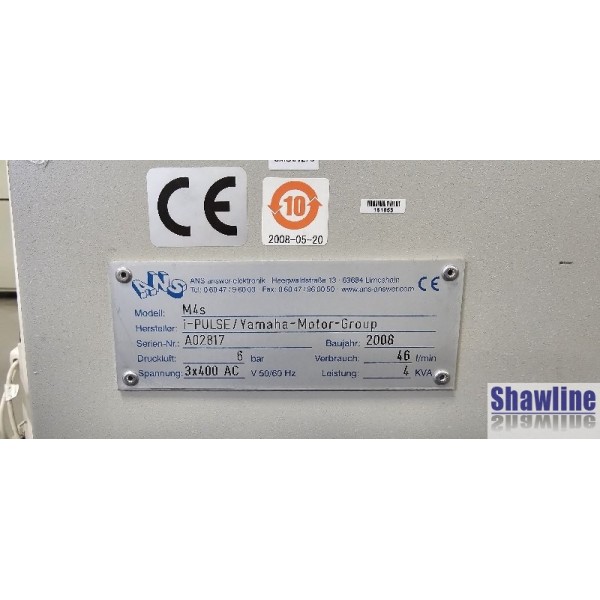

Serial No: |
A02817 |
|
Date of Manufacture: |
2008 |
|
Hours: |
tba (well maintained condition) |
|
Software Version: |
tbcf M3.79-C3.79-GV412 |
|
SMD Range: |
0201 Chip to 50mm BGA/QFP and microBGA - max height: 15mm |
|
Lead Pitch: |
QFP's 50mm square (0.5mm pitch) |

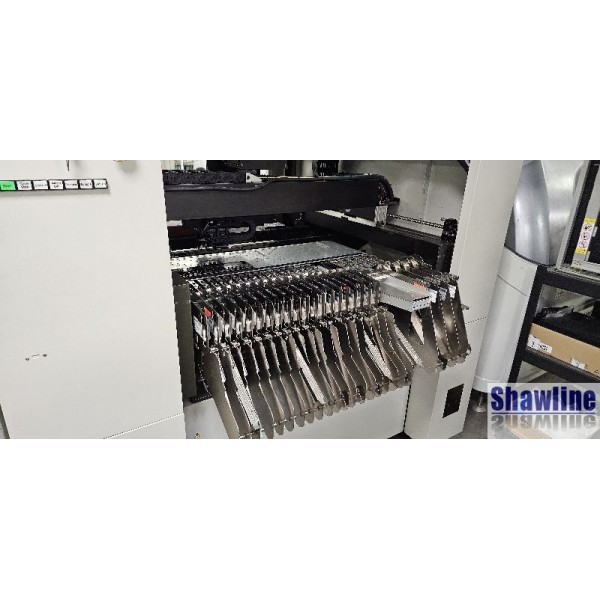

| 8mm Feeder Capacity: |
120 (most sizes available at extra cost) |
|
Rated Placement Speed: |
0.22sec/chip, 0.56sec/IC, 0.82sec/QFP - c. 12,000 cph |
|
Min. / Max. Board Size: |
50 x 50mm to 460 x 410mm |
|
Power Supply: |
400v three phase 50/60 Hz Consumption: 4 kVA |
|
Air Supply: |
6 BAR min. 85 psi clean and dry @ approx. 46 l/min |
|
Approx. Dims (wxdxh): |
1.75 x 1.52 x 1.85m |
|
Approx. Weight: |
1,950 kgs (without feeders) |
|
Availability: |
Ex-stock UK Northwest |
