HELLER 1936EXL Mk5 10 Zone Reflow

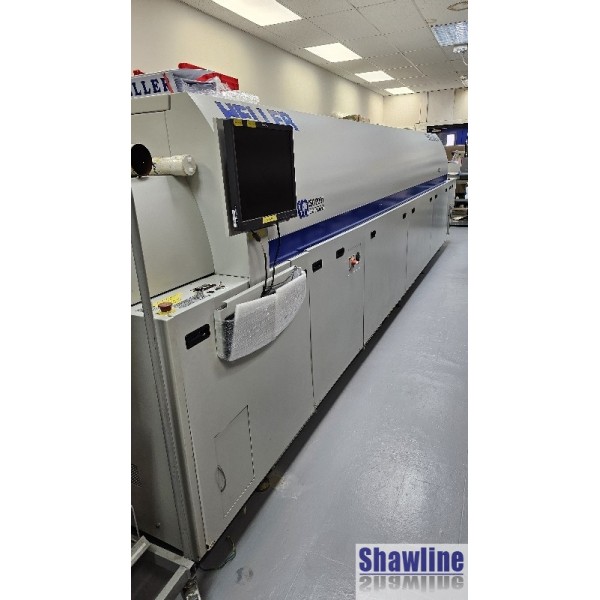

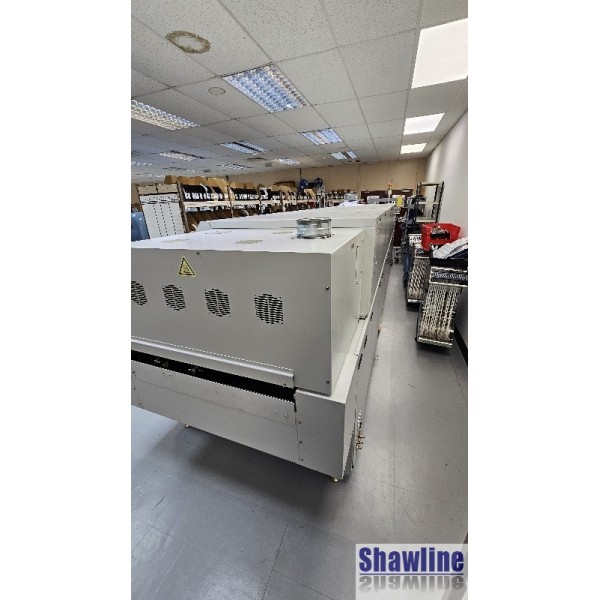

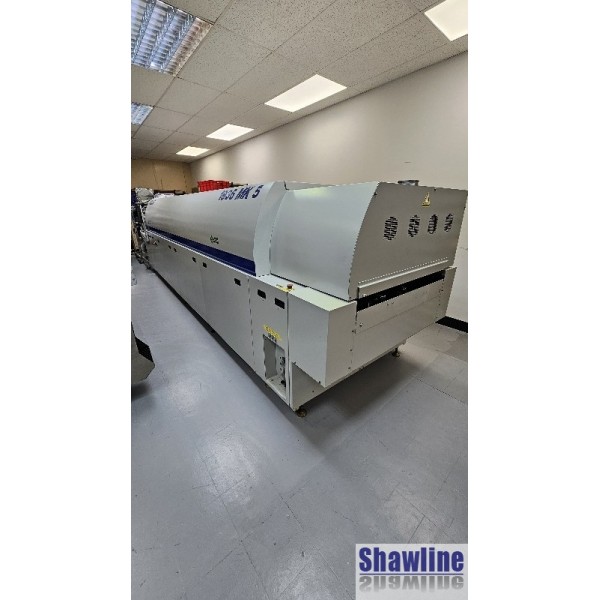

USED Heller 1936EXL Mk 5 Reflow Oven, 2014
Categories
- Pb free reflow
- Good condition (never installed by current owner!)
- 10 vertical heated zones + 3 forced cooling zones (closed loop internal water supply)
- Edge pin conveyor with RETRACTABLE centre board support (CBS)
- LEFT TO RIGHT running direction with fixed front rail
- Win XP PC controller software
- Manufactured by Heller in China

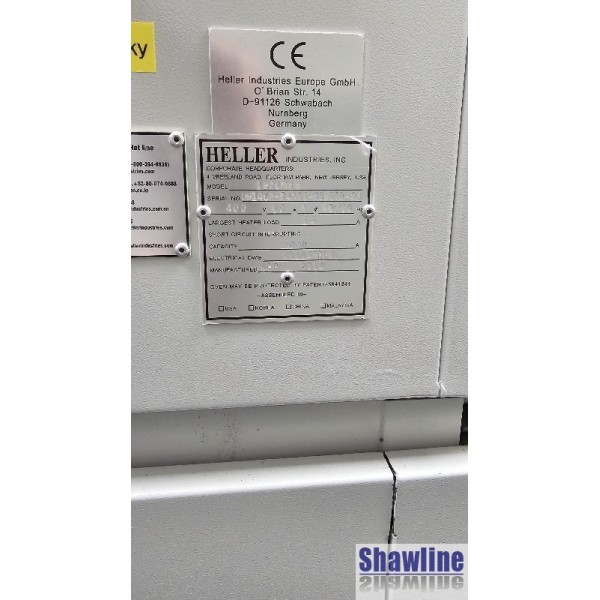

- Fully CE marked
- Awesome!
|
Manufacturer: |
Heller Industries Inc., NJ 07932, USA www.hellerindustries.com |
|
UK Support From: |
ZEN-SMT SERVICE LIMITED zen-smt.co.uk |
|
Model: |
1936 EXL Mk 5 |
|
Serial No: |
0934G3-BANGS-805600-03 |
|
Date of Manufacture: |
Sep 2014 |
|
Production Hours: |
tba |
|
Software: |
v8.0.0.67 on Win XP (tbcf) |
|
No of Heated Zones: |
10T + 10B with linked zone fan velocity control |
|
Total Heated Length: |
348cm |
|
Temp. Control Accuracy: |
±1°C via closed loop PID control |
|
Delta T: |
±2°C |
|
Cooling: |
3 zones, closed loop recirculating water |
|
Conveyor Type/Speed: |
Edge Pin, power width adjust, L to R with CBS, 188cm/min |
|
Conveyor Width: |
Max. 550mm - Min. 90mm (due to CBS) |
|
Power Supply: |
415V three phase, max. 60A, run 30-35A, 9 - 15kW |
|
Air Supply: |
Required for CBS only 6-7 BAR 6mm dia pipe |
|
Extraction: |
Single 20cm (8") dia lip vent for 550 SCFM exhaust |
|
Approx. Dims (L x D x H): |
5.89 x 1.57 x 1.60m (L x D x H) excluding light tower |
|
Approx. Weight: |
2900 kgs |
|
Availability: |
EXW UK South East |
