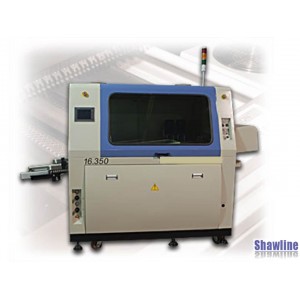

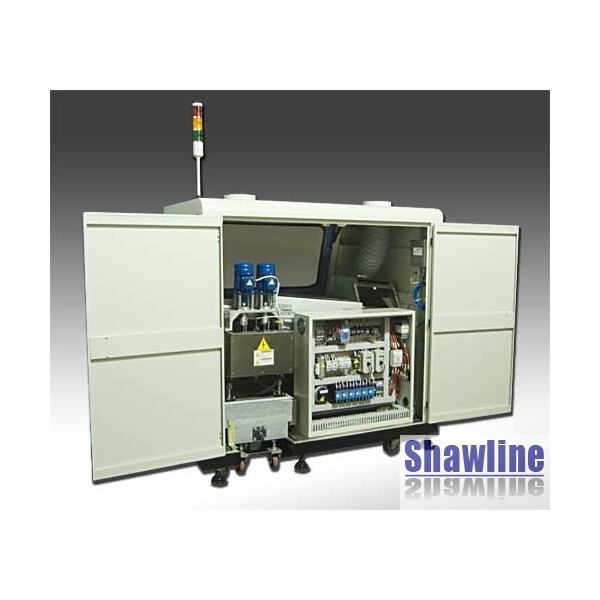

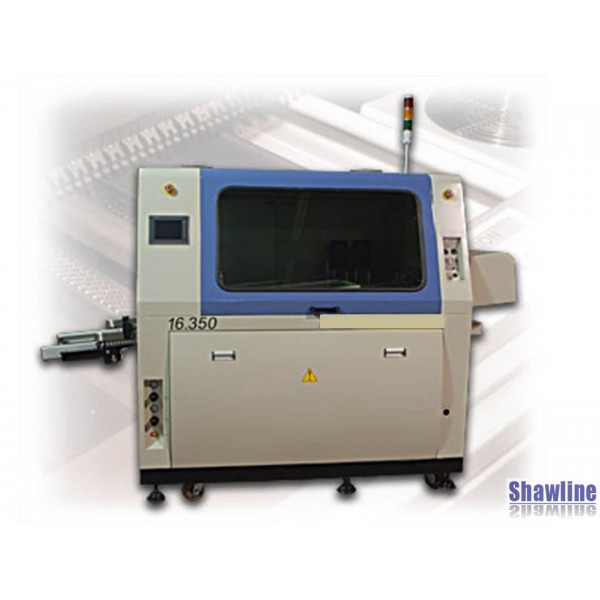

06D.350 Lead Free Wave Soldering Machine
NEW (BUILT TO ORDER) 06D.350 Compact Wave Solder Machine
Categories
- Compact footprint - 2.55m machine length
- Dual Waves 10mm wave height
- Energy saving mode - board detection sensor with wave motor time out

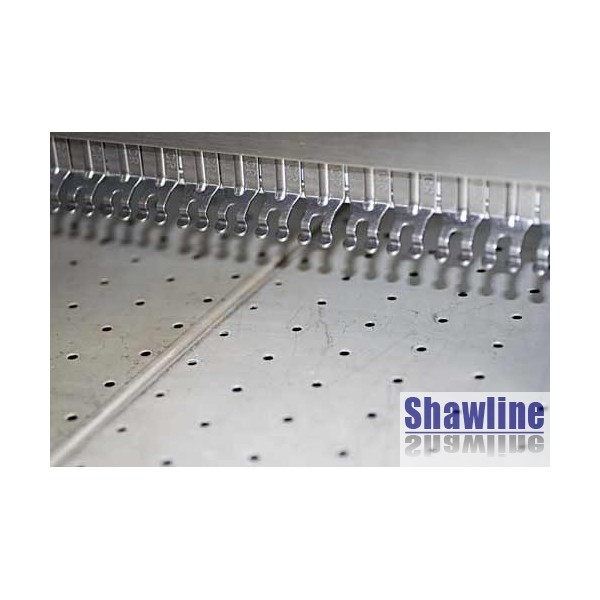

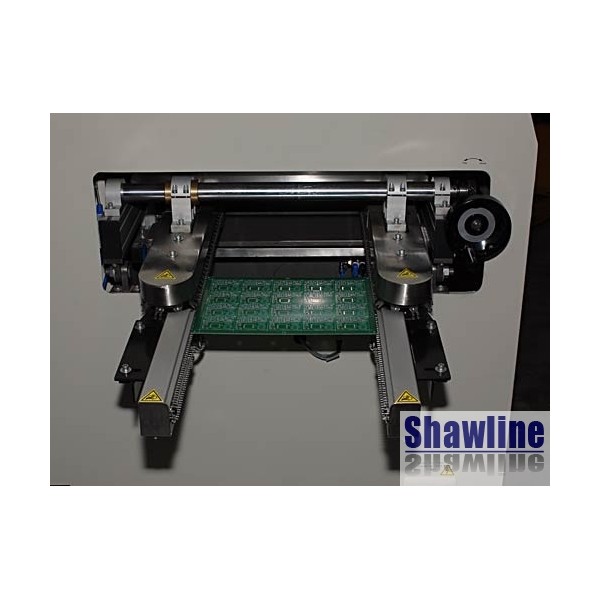

- Titanium Alloy Finger Conveyor with manual width adjust

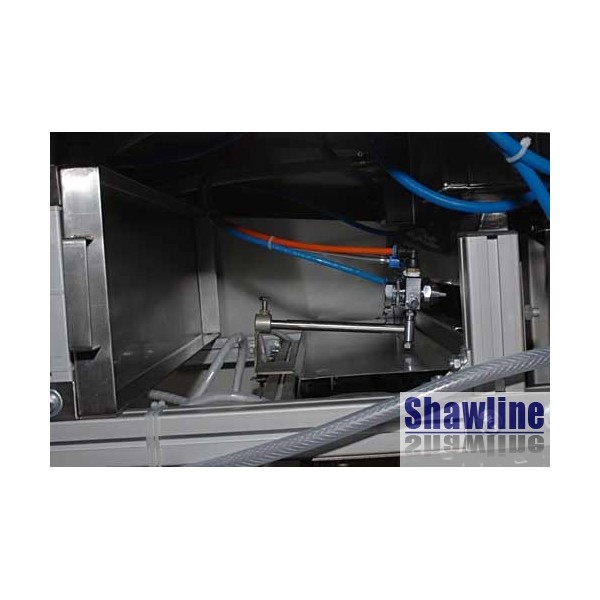

- Integral spray fluxer with optional 2nd jet

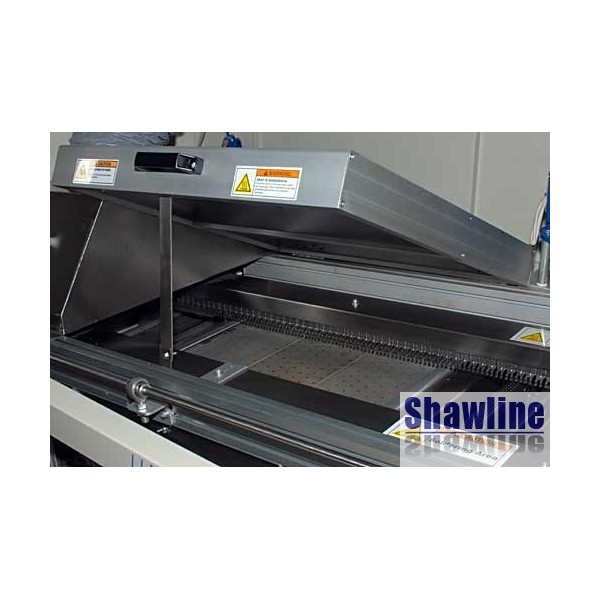

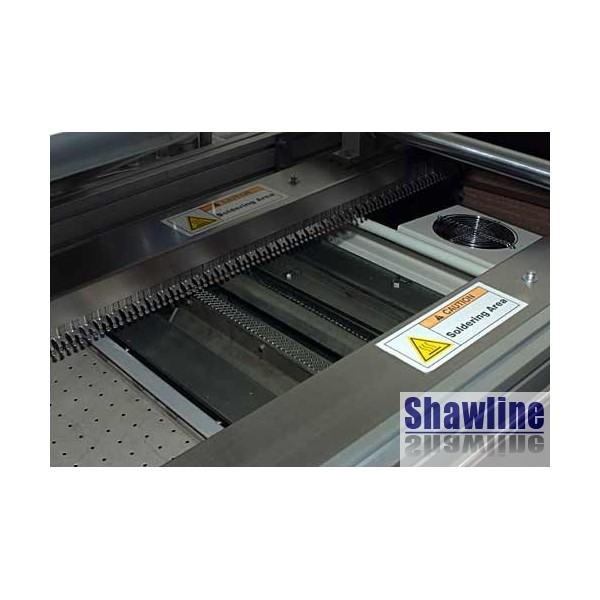

- Energy conserving forced convection pre heat

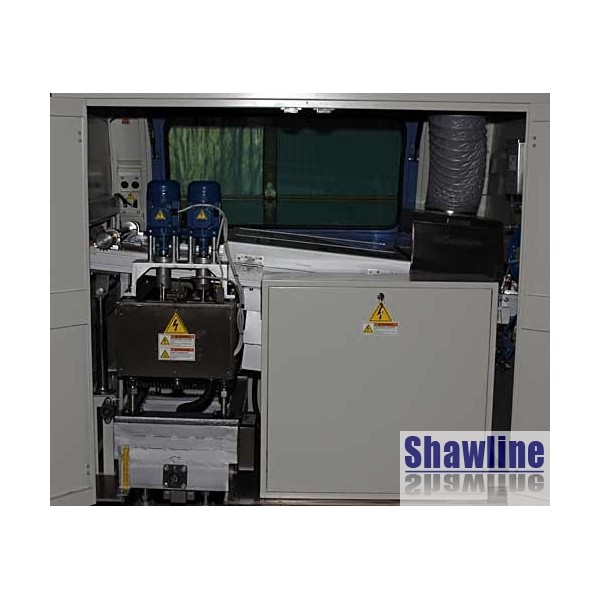

- Low Volume Solder Pot for reduced start-up and running costs
- Titanium Alloy Solder Pot and wave nozzles
- Wind out solder batch for easy access

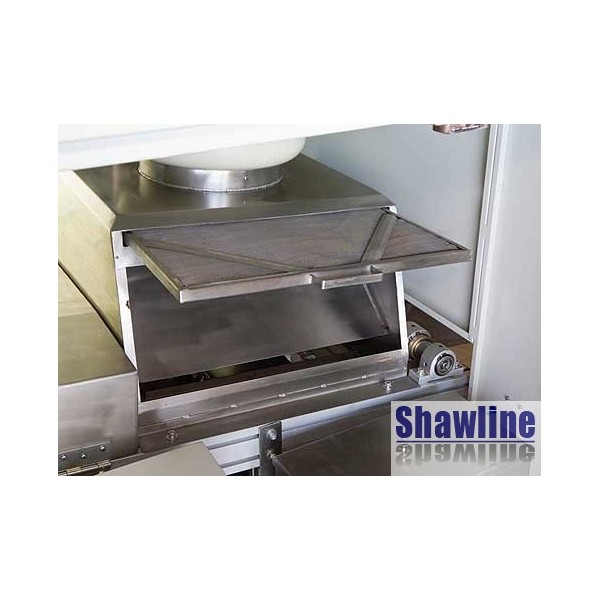

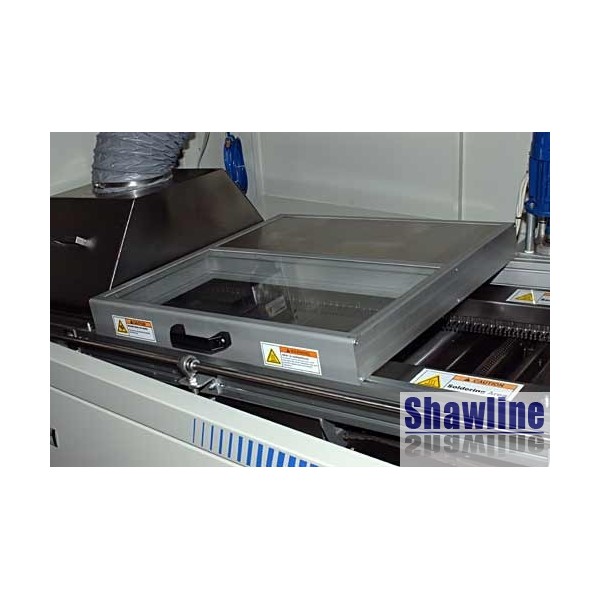

- Fume hood and flux filter

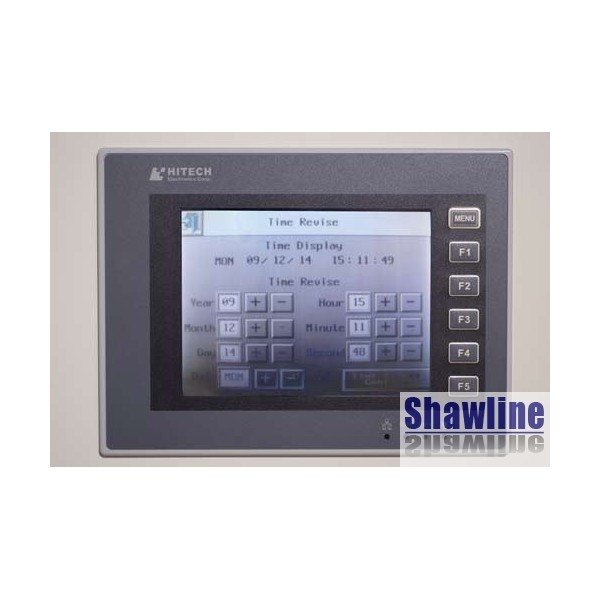

- Touchscreen LCD control
- 24 months parts warranty
- CE Compliance
|
Manufacturer: |
Global CRE Shenzhen, China |
|
UK Support From: |
Shawline, Weymouth UK www.shawline.co.uk |
|
Model: |
06D.350 |
|
Conveyor Type: |
Titanium spring finger |
|
Conveyor Width: |

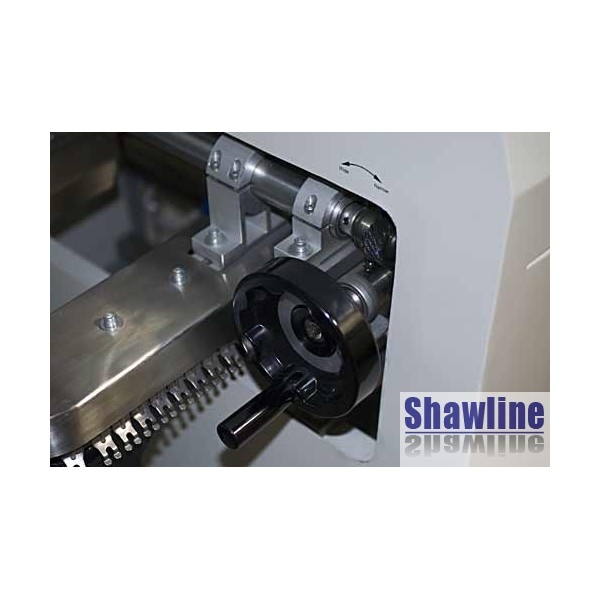

Min. 50mm - Max. 350mm (hand wheel adjustment) |
|
Conveyor Speed: |
50 to 220cm/min (19.6” to 86.6”/min) |
|
Conveyor Angle: |
4° to 7° (adjustable) |
|
Conveyor Entry Height: |
750mm ±20mm (29.5” ±0.75”) |
|
Fluxer Type: |
Auto spray nozzle with cleaning unit (optional 2nd flux nozzle) |
|
Pre Heat: |
600mm underside convection (optional addntl topside) |
|
Pre Heat Power: |
9 KW (6 x 1.5 KW elements) |
|
Solder Pot Type: |
Titanium incl. solder nozzles and pump impellers |
|
Solder Pot Capacity: |
220 kgs (wind out for easy access) |
|
Wave Width: |
350mm (twin waves as standard) |
|
Wave Height: |
10mm (optional independent adjustment) |
|
Solder Temperature: |
Ambient to 300°C |
|
Solder Pump Power: |
Twin 180W Motors |
|
Power Requirement: |
380V 3 phase 50/60 Hz Peak Current:50A/phase Max 18KW |
|
Air Supply: |
4 kfg/cm2 |
|
Integral Exhaust Fan: |
45W - 6" |
|
Approx. Dims (L x D x H): |
2.55 x 1.15 x 1.65m (5.4' x 3.8' x 5.4') |
|
Approx. Weight: |
800 kgs dry weight |
|
Availability: |
4/6 weeks manufacture plus 4/6 weeks shipment |
|
Incoterms Delivery Point: |
DDP UK Mainland |
