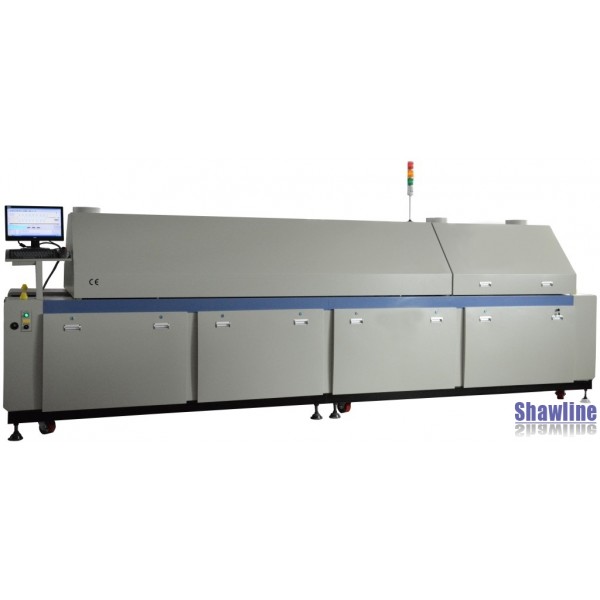

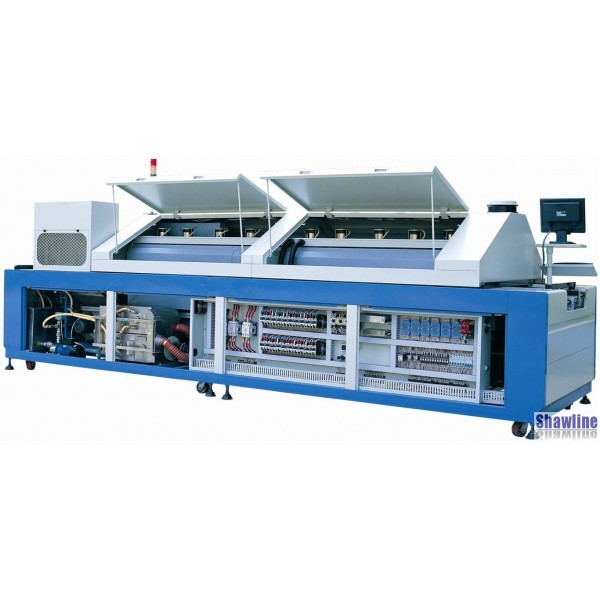

Low Energy 8 Zone Reflow Oven
NEW, 8 zone Low Energy Convection Reflow Oven
Categories
- Max. 43A per phase SOFT START capability to full Pb free profile in 30 mins
- 7 - 12A per phase (9 - 13KW overall power) average running
- RoHS Capable
- Fully CE Compliant
- 16 Independently PID controlled top and bottom heating
- ± 1 deg. C temperature stability
- ± 2 deg. C Delta-T process stability across process width
- Powerful 1.0 m/sec hot air velocity
- Air injection technology (offsets harsh ramp zone washover)
- Upper/lower process temp alarms (per zone)

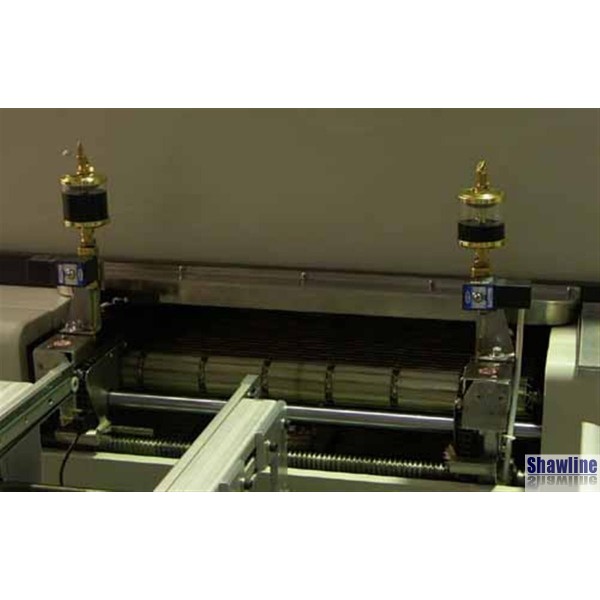

- Choice of combi edge pin and mesh belt or edge pin and centre board support

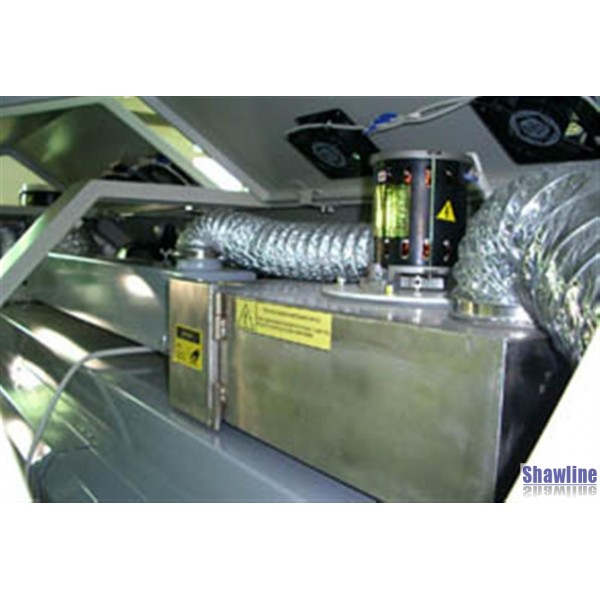

- Dual exhaust condenser flux filtration units (blown air type - no water required)
- Optional internal chiller
- Optional N² atmoshpere
- Windows 10© operating system
- 12 months ALL Parts + 36 months heaters & blowers Warranty
- Full installation and training available
|
Manufacturer: |
CRE Manufacturing Equipment |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Model: |
CR-8000 |
|
No of Heated Zones: |
8 vertical, with 16 independently controllable heaters |
|
Total Heated Length: |
270cm |
|
Active Temperature Range: |
50°C to 350°C |
|
Heat Up Time: |
Ambient to 300°C in 20 mins (with full power start) |
|
Cooling: |
2 zones, variable velocity ambient fans, optional chiller |
|

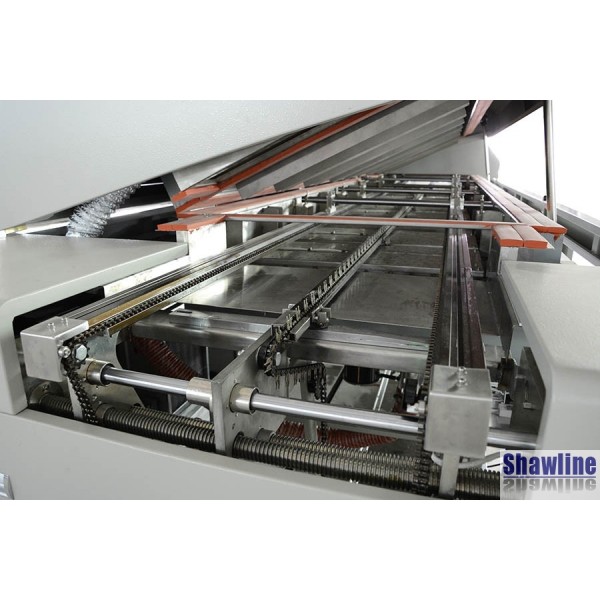

Conveyor Type: |
Combi mesh and edge pin with motor width adjust |
|
Conveyor Speed: |
40 to 180cm per min (L to R standard - R to L optional) |
|
Conveyor Width: |
Edge pin 50 to 450mm, mesh only 570mm, combi 480mm |
|
Conveyor Height: |
900 ±20mm standard (950 ±20mm optional) |
|
PCB Clearance (Edge Pin): |
Topside: 30mm, Underside: 25mm |
|
Power Supply: |
415 v 3 phase 50/60 Hz 95A max draw Current: 68 KW full power start-up, 9-13KW running |
|
Air Supply: |
0.4/0.6 MPa, 6mmØ bore - 10mmØ OD, 0.8 - 4.0 CFM |
|
Exhaust: |
3 x 200mm Ø lip vents @ 400 CFM ea (1200 CFM Total) |
|
Recommended Extraction: |
200mm Ø duct with => 0.3 m³/sec @ 0 Pa boosters per 10m |
|
Approx. Dims (L x D x H): |
4.80 x 1.51 x 1.55m (WxDxH) excl. light tower |
|
Approx. Weight: |
NET 2000 kgs, SHIPPING 2330 kgs |
|
Availability: |
4 weeks build time + 4/6 weeks seafreight |
