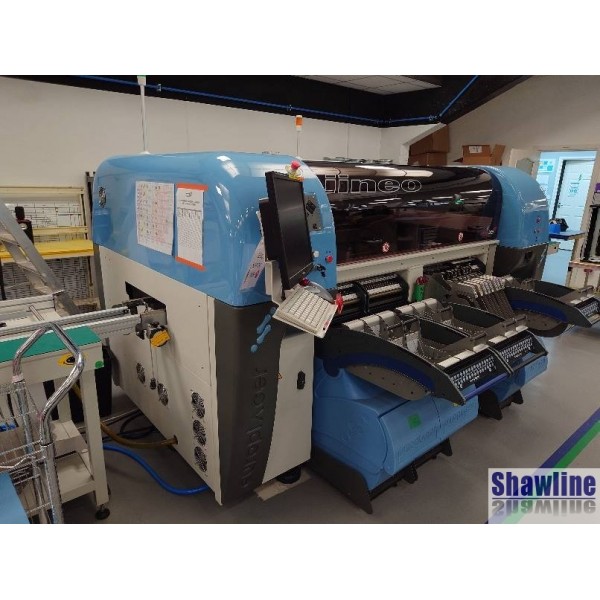

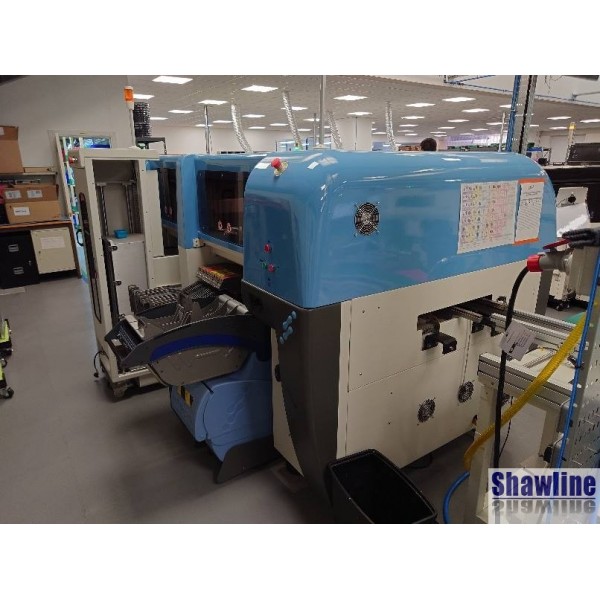

EUROPLACER Iineo 2
USED, EUROPLACER Iineo 2, 2016
Categories

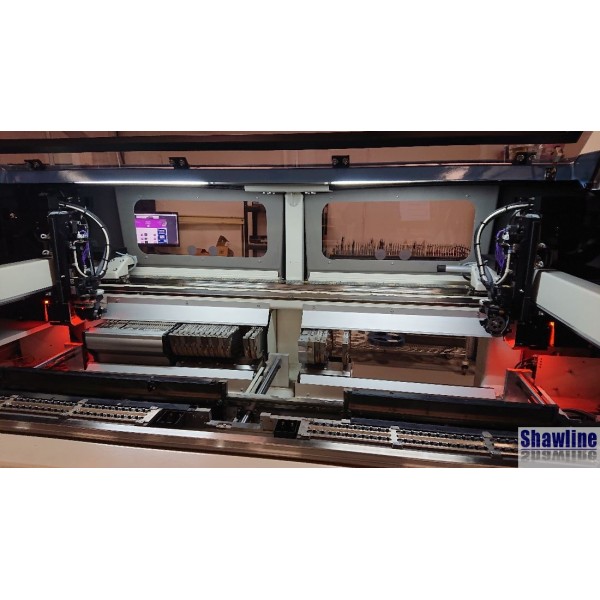

- Twin Placement Gantries (in series)
- Both gantries fitted with an 8 nozzle turret with 34mm component fly height

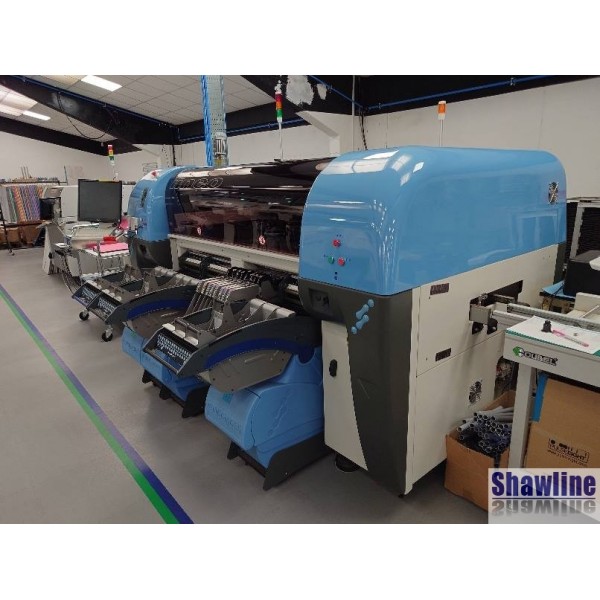

- Feeder zones config: 6 trolley clamps + sequencer clamp + small fixed base
- All intelligent feeders (allows random/dynamic set-ups)
- KNOWN FAULT - Initialisation issue with head 2 (machine runs but requires re-initialisation now and then)
- Very low hours
- Fantastic 'as new' condition otherwise, price commensurate with known fault

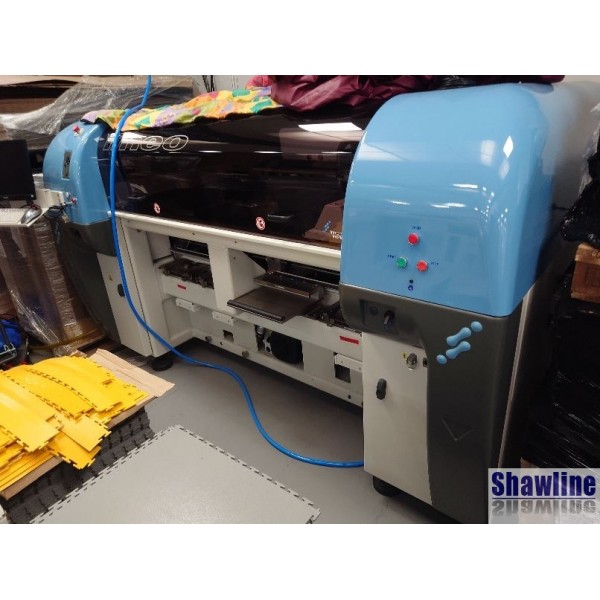

- Currently in storage, but can link to power and air for viewings
|
Manufacturer: |
Blakell Europlacer Ltd., Poole, UK www.europlacer.com |
|
UK Support From: |
Blakell Europlacer Ltd., Poole, UK www.europlacer.com |
|
Model: |
Iineo 2 |
|
Serial No: |
378 |
|
Date of Manufacture: |
Dec 2016 |
|
Software: |
RC 5.15.D2M15 on Windows 7©, CN 5.08.0921 |
|
CPU: |

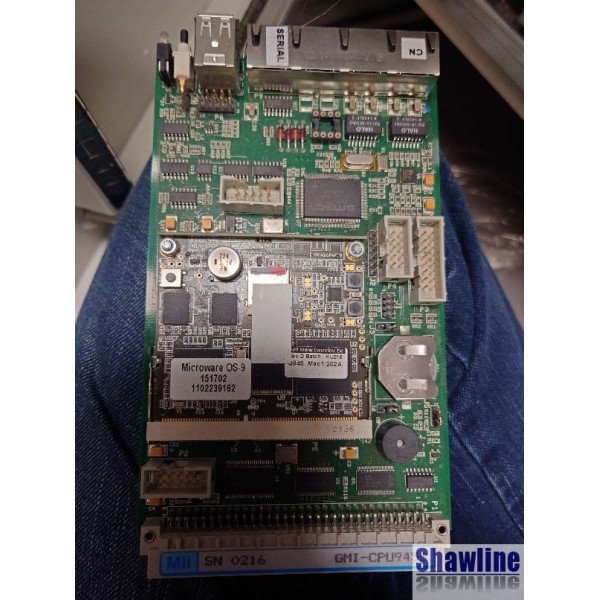

GMI-CPU945B - SN 0216 |
|
Production Hours: |
10,100 as at 13/08/26 |
|
Description: |
Flexible placer with intelligent feeders for fast changeover |
|
SMD Range: |
01005 to 50 x50mm (34mm max. component height) with BGA and 0.4mm lead pitch ability for QFP's on-the-fly |
|
Placement Speed: |
26,000 cph manufacturer's rated speed |
|
Accuracy (Chips): |
+/- 0.060mm (@ 3 sigma) |
|
Accuracy (QFP's): |
+/- 0.035mm (@ 3 sigma) |
|
Min. / Max. Board Size: |
50 x 50 x 0.5mm - 500 x 460 x 5.0mm (L x W x T) |
|

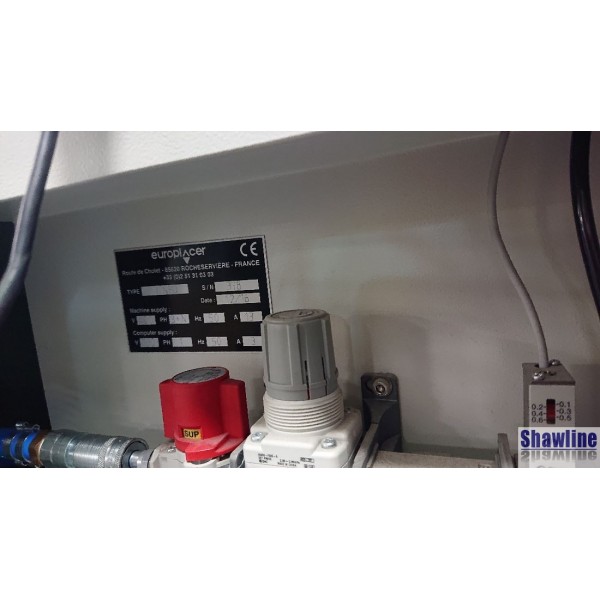

Power Supply: |
400 V three phase, 50/60 Hz, 13A Peak, 5kVA 3PH + N + E |
|
Air Supply: |
6 bar (88 psi), 20 l/min (machine has on-board vac pump) |
|
Approx. Dims (L x D x H): |
2.90 x 2.25 (without feeder trolleys) x 1.5m (L x D x H) |
|
Approx. Weight: |
2,500 kgs dry weight (without trolleys or feeders) |
|
Availability: |
2/3 weeks EXW UK South |
|
Price: |
Excludes feeders/delivery etc. Shawline will be pleased to quote for specific needs |
