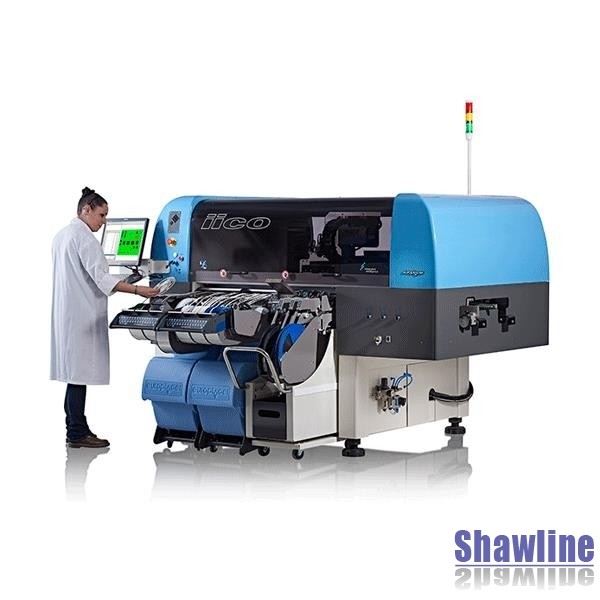

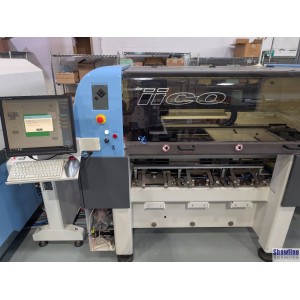

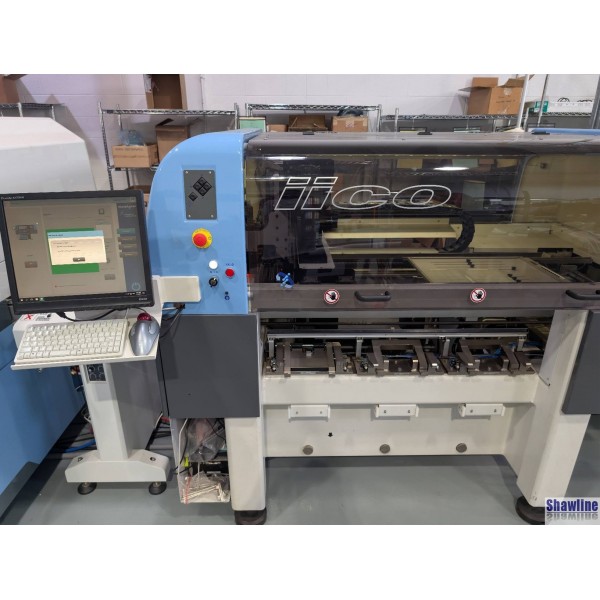

EUROPLACER iiCO
USED, EUROPLACER iiCO, 2014
Categories
- Single placement gantries equipped with 8 nozzle rotorary turret
- Optical component presence sensor

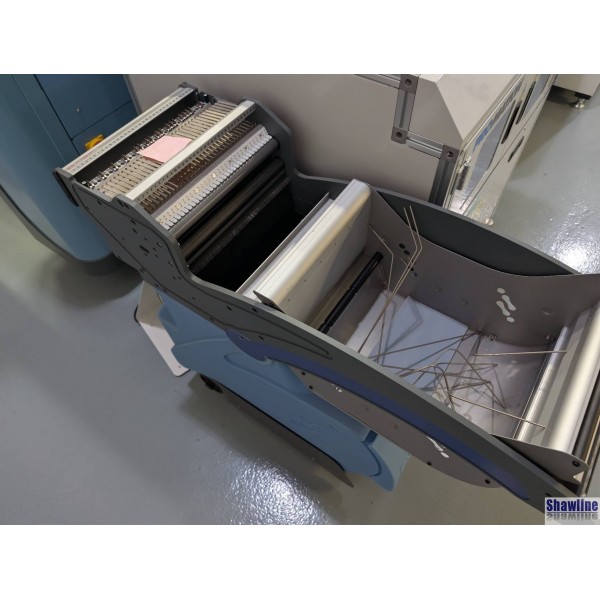

- Feeder zones config: 6 trolley clamps for fast changeover
- Matrix tray platform (up to 10 tray parts with no lost of feeder capacity or board size)
- All intelligent feeders (allows random/dynamic set-ups)
- Up to 198 x 8mm feeder capacity (feeders available at extra cost)
- Auto nozzle changer with SMART nozzle ID (NOTE: Nozzles not included)
- Component value testing (can verify passive values on each reel change)
|
Manufacturer: |
Blakell Europlacer Ltd., Poole, UK www.europlacer.com |
|
UK Support From: |
Blakell Europlacer Ltd., Poole, UK www.europlacer.com |
|
Model: |
iiCO |
|
Serial No: |
tba |
|
Date of Manufacture: |
2014 |
|
Software: |
tba - most likely RC 5.16.B1M12 on Windows XP© |
|
Production Hours: |
tba |
|
Description: |
Flexible placer with intelligent feeders for fast changeover |
|
SMD Range: |
01005 to 50 x50mm (17mm max. component height) with BGA and 0.4mm lead pitch ability for QFP's on-the-fly |
|
Placement Speed: |
9,100 cph rated speed (IPC 7,750 cph) |
|
Accuracy (Chips): |
+/- 0.060mm (@ 3 sigma) |
|
Accuracy (QFP's): |
+/- 0.040mm (@ 3 sigma) |
|
Min. / Max. Board Size: |
60 x 60 x 0.5mm - 500 x 460 x 5.0mm (L x W x T) |
|
Power Supply: |
210v three phase, 50/60 Hz, 20A Peak, 5kVA 3PH + N + E |
|
Air Supply: |
6 bar (88 psi), 20 l/min (machine has on-board vac pump) |
|
Approx. Dims (L x D x H): |
2.10 x 1.40 (without feeder trolleys) x 1.8m (L x D x H) |
|
Approx. Weight: |
1,400 kgs dry weight (without trolleys or feeders) |
|
Availability: |
2/3 weeks EXW USA |
|
Price: |
Excludes feeders/delivery etc. Shawline will be pleased to quote for specific needs |
