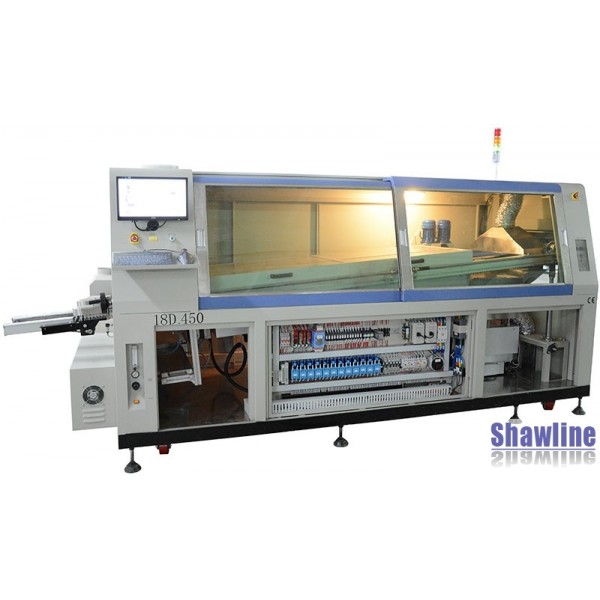

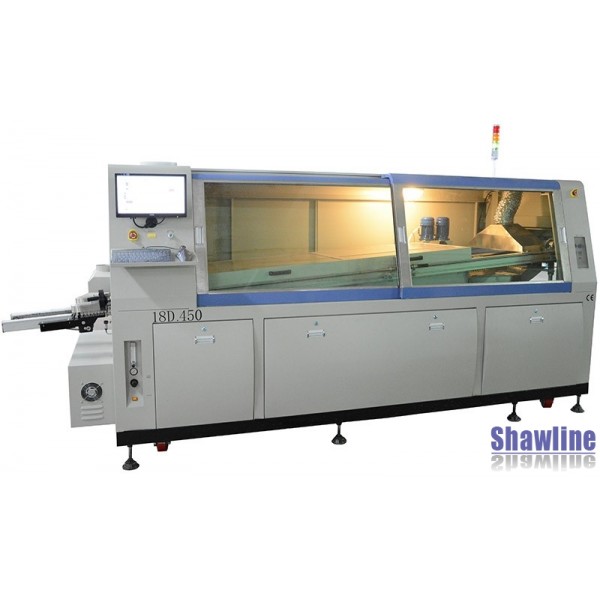

18D_400 Lead Free Wave Soldering Machine
NEW, built to order Twin Wave Solder machine with 1.8m pre heat
Categories
- Dual wave
- 420 kgs solder capacity

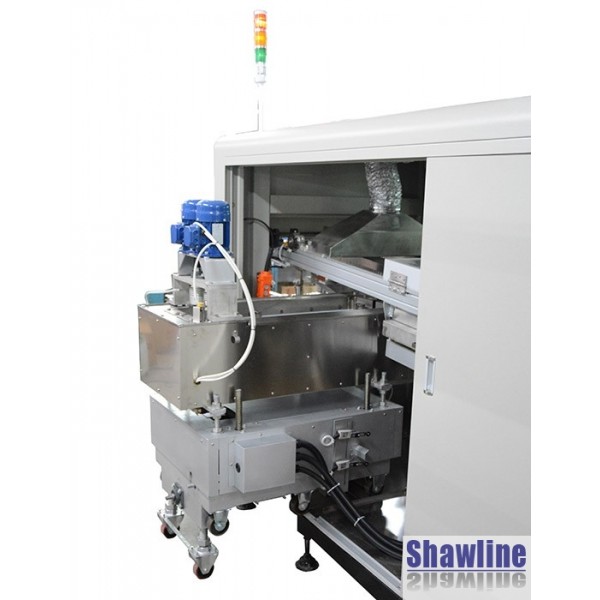

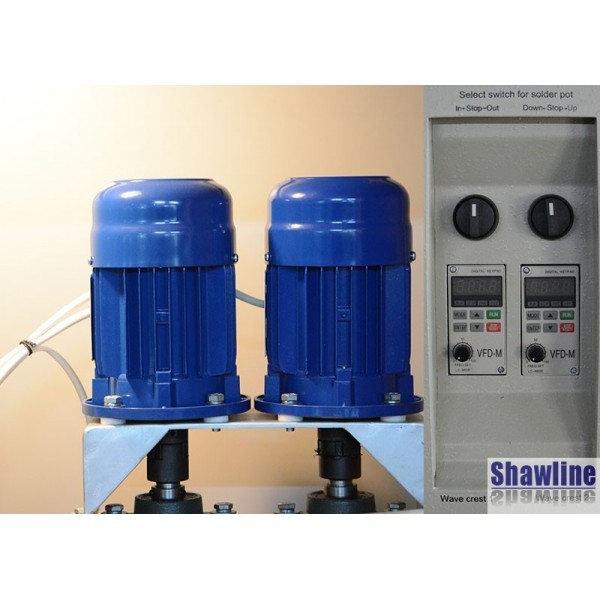

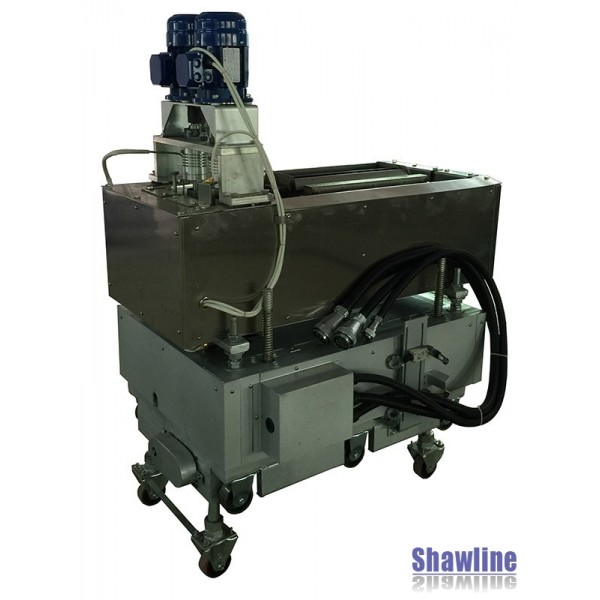

- Easily accessible motorised 'in-out', 'up-down' Titanium Alloy solder pot

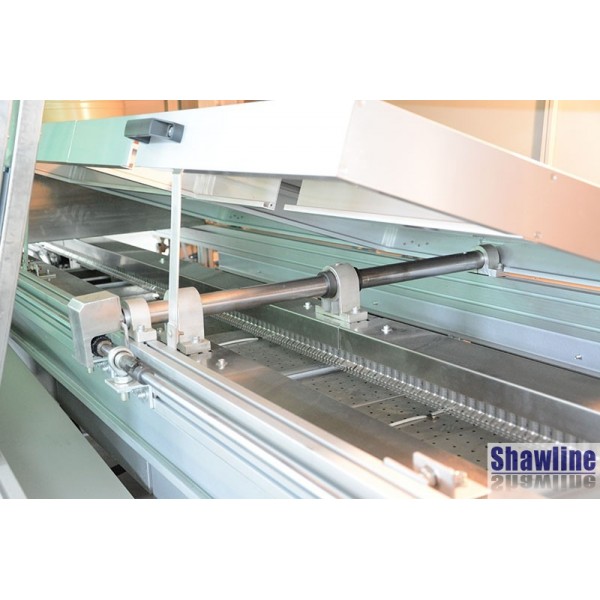

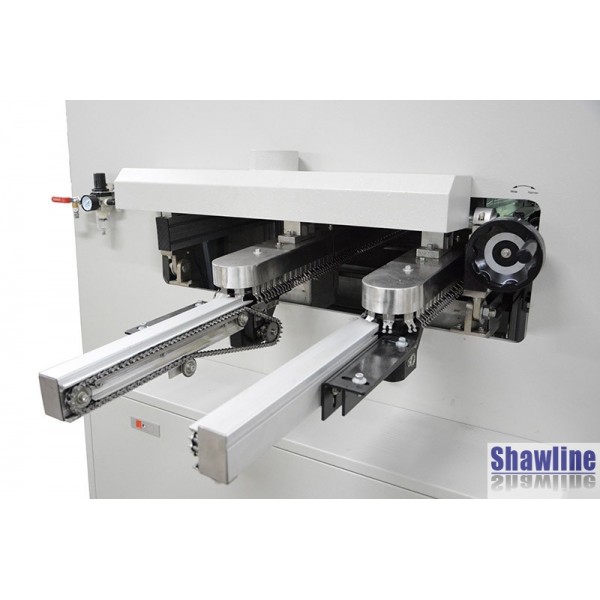

- Titanium alloy finger conveyor with manual width adjust and integral finger cleaner
- Automatic Spray Fluxer

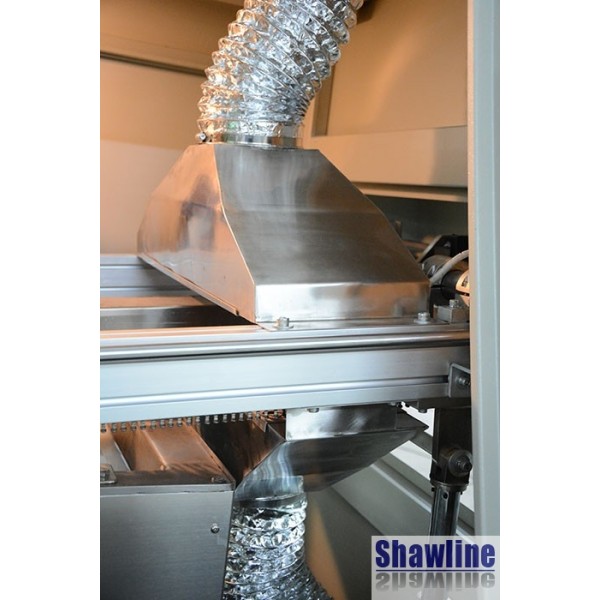

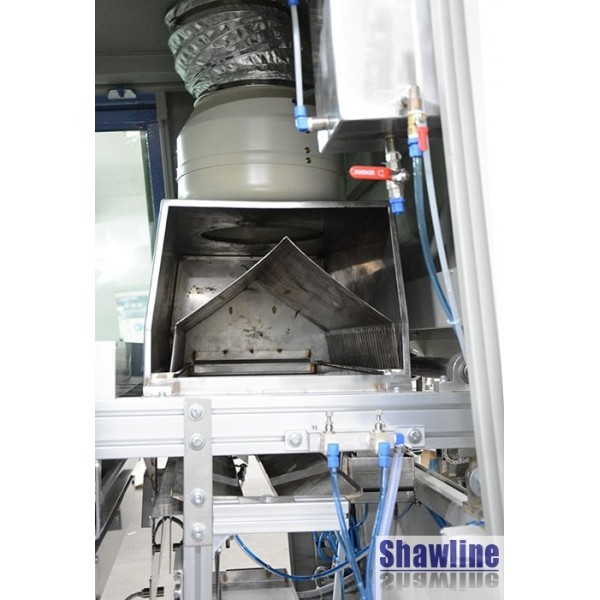

- Flux Fume Hood and Filter
- Energy saving mode, saves power and reduces solder dross
- 12 months parts warranty
|
Manufacturer: |
CRE Shenzhen, China |
|
UK Support From: |
Shawline, Weymouth UK www.shawline.co.uk |
|
Model: |
18D-400 |
|
Operating System: |

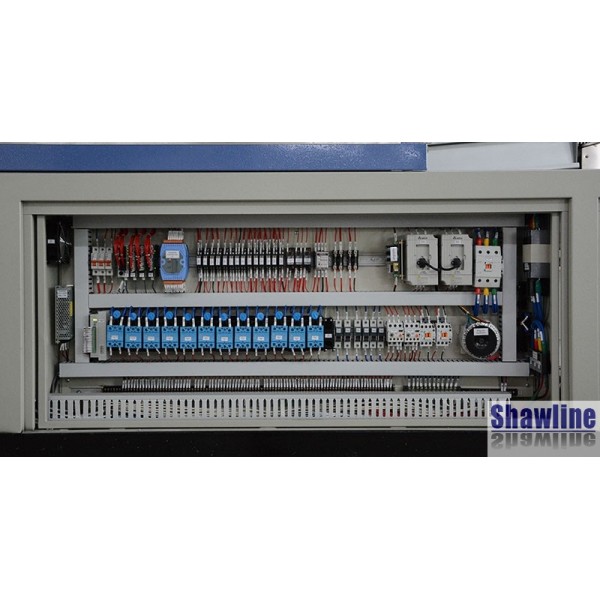

Windows 8 PC + PLC + SSR |
|
PCB/Conveyor Width: |
50 to 400mm manual width adjust (motorised option) |
|
Conveyor Speed: |
0.5 to 2.2m/min |
|
Conveyor Angle: |
4o to 7o adjustable |
|
Conveyor Type: |
Titanium edge finger with integral cleaner |
|

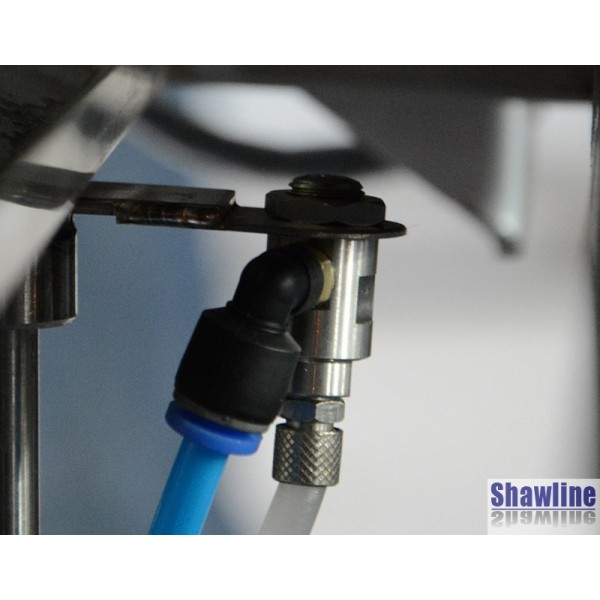

Spray Atomisation Fluxer: |
Stepper motor movement with self timed auto cleaning |
|

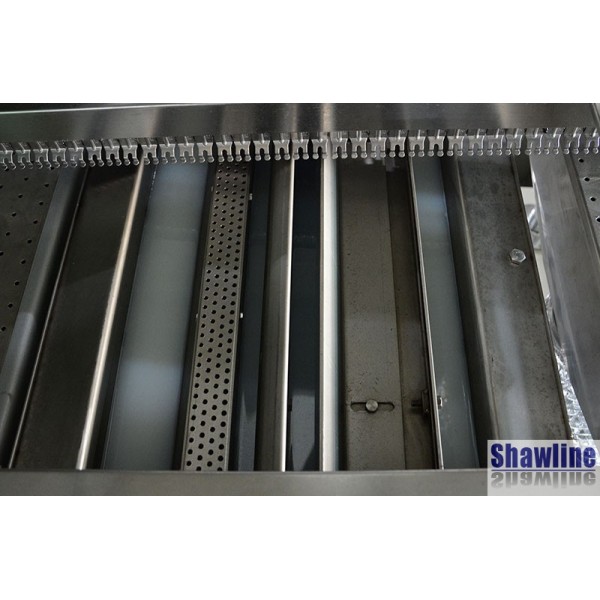

Pre Heat Length: |
1800mm split into 3 independently controllable zones |
|
Solder Foot Length: |
10mm |
|
Solder Pot Temperature: |
Ambient to 300oC |
|
Solder Bath Capacity: |
Dual Wave – 420 kgs (optional smaller size: 370 kgs) |
|
Exhaust: |
400W Fan |
|
Power Requirement: |
415V 3 phase 50/60 Hz Peak: 36.5KW - Running: 7-9KW |
|
Air Supply: |
60 PSI (0.4 MPa) 4/5 BAR |
|
Approx. Dims (L x D x H): |
3.95 x 1.41 x 1.68m (SHIPPING CRATE: 4.43 x 1.68 x 2.06m) |
|
Approx. Weight: |
1650 kgs dry weight NET (SHIPPING: 1850 KGS GROSS) |
|
Availability: |
4 weeks manufacture plus 4 weeks shipment |
|
Incoterms Delivery Point: |
DDP UK Mainland |
