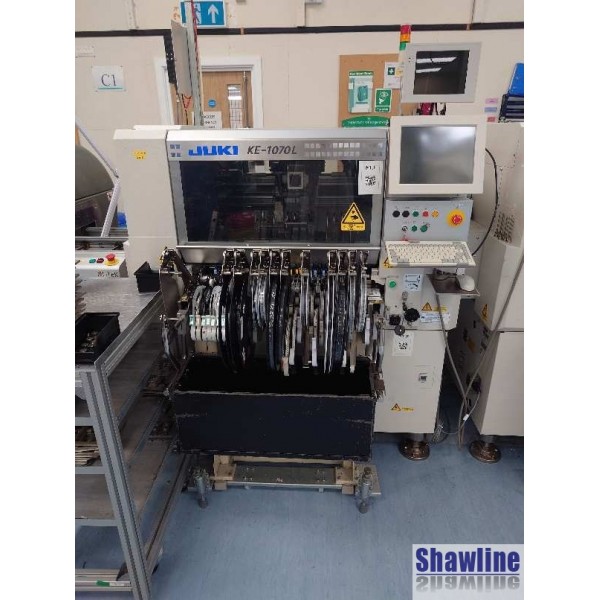

JUKI KE-1070L Assembler
USED, JUKI KE-1070L, 2011
Categories

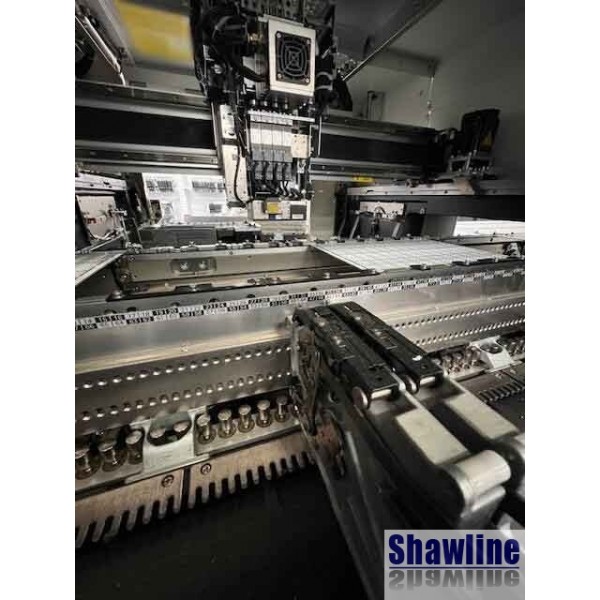

- Single Head with Four (4) placement spindles
- On-the-fly LNC60 laser touchless centering for 4 nozzles simultaneously up to 33.5mm
- Detachable trolley mounted feeder banks fr and re for fast changeover
- Fiducial recognition for auto teach of pick locations
- Up to 80 x 8mm feeder capacity
- Selection of mainly 8*4mm feeders available at extra cost
- Compact modular unit offering small chip (0201) capability (with correct nozzles)
- CE Marked - conforms to EU safety regulations
- Service contract maintained from new
|
Manufacturer: |
JUKI Automation Systems www.jas-smt.com |
|
UK Support From: |
JUKI Automation, Crawley, UK +44 1293 59 22 70 |
|
Model: |
KE-1070L |
|

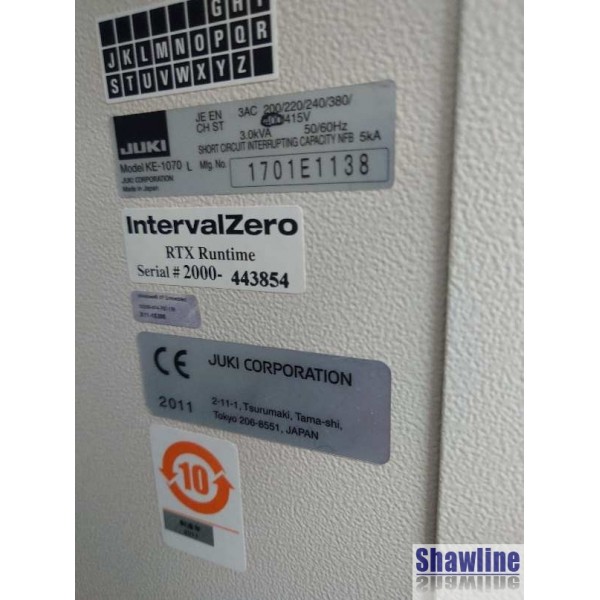

Serial No: |
1701E1138 |
|
Date of Manufacture: |
2011 |
|
Production Hours: |
tba |
|
Description: |
Fully automatic pick and place system |
|
SMD Range: |
0201 to 33.5 x 33.5mm (laser centering only) |
|
Placement Speed: |
13,500 cph rated speed (IPC 9850) |
|
Placement Accuracy: |
± 0.05mm (Cpk≥1) |
|
Min. / Max. PCB Size: |
50 - 410mm x 30 - 360mm (L x W) |
|
Min. / Max. PCB Thickness: |
0.4 - 4.0mm |
|
Power Supply: |
400v three phase, 50/60 Hz, 3.0kVA (5kA breaker) |
|
Air Supply: |
0.49 Mpa ± 10%, 5 bar (71 psi), approx. 230 l/min |
|
Approx. Dims (L x D x H): |
1.50 x 1.60 x 1.78m (L x D x H) incl. light tower |
|
Approx. Weight: |
1,530 kgs (without feeders) |
|
Availability: |
EXW West Country from Q4-2026 |
