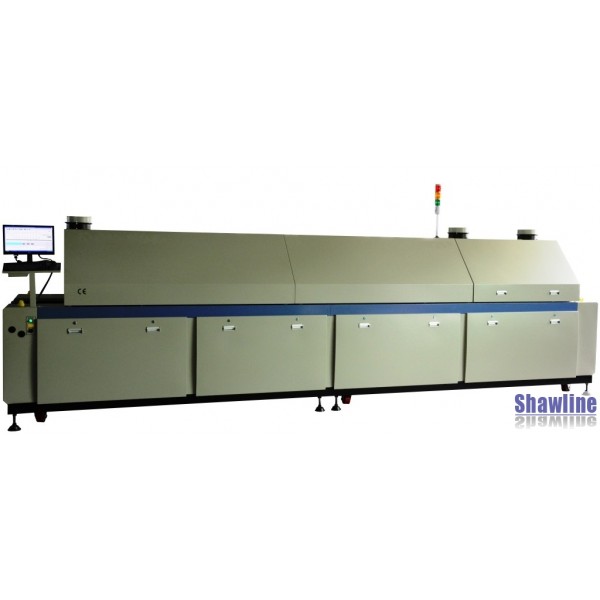

Low Energy 10 Zone Reflow Oven
NEW, 10 zone Low Energy Convection Reflow Oven
Categories
- 70KW FAST START-UP ≤ 25 mins
- 11 -16KW RUNNING
- RoHS Capable
- Fully CE Compliant
- 20 Independently PID controlled top and bottom heating
- ± 1 deg. C temperature stability
- ± 2 deg. C Delta-T process stability across process width

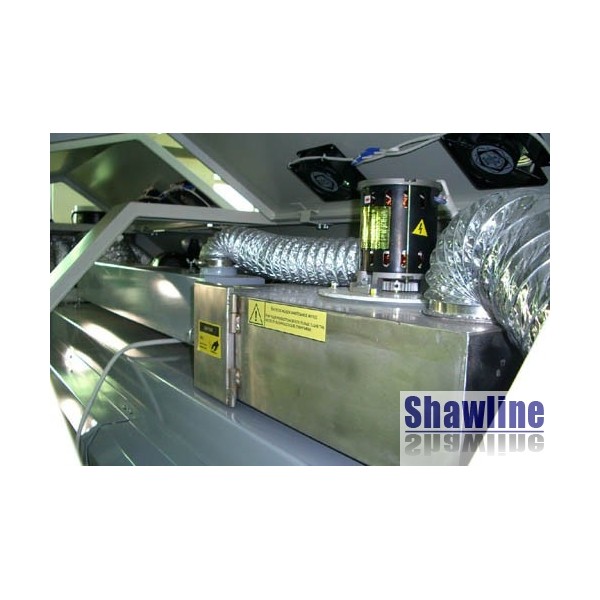

- Air injection technology (offsets harsh ramp washover)
- Upper/lower process temp alarms (per zone)

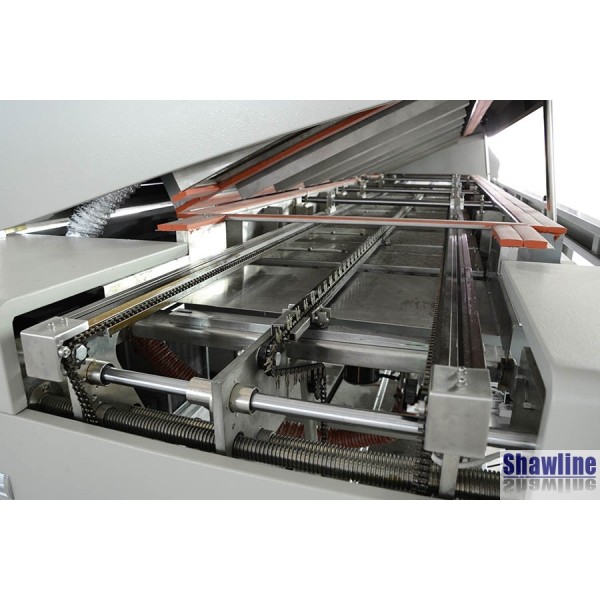

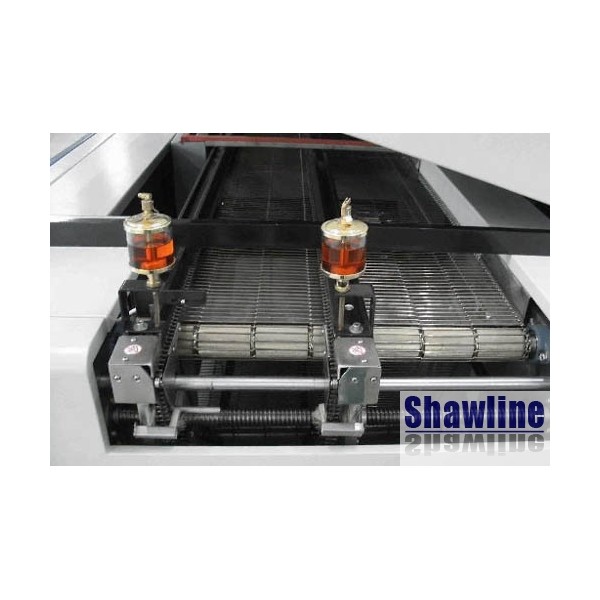

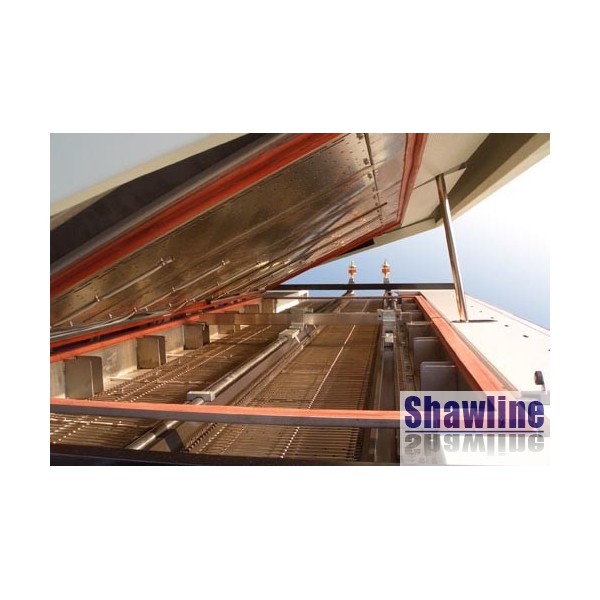

- Combination edge pin and mesh belt board transport system

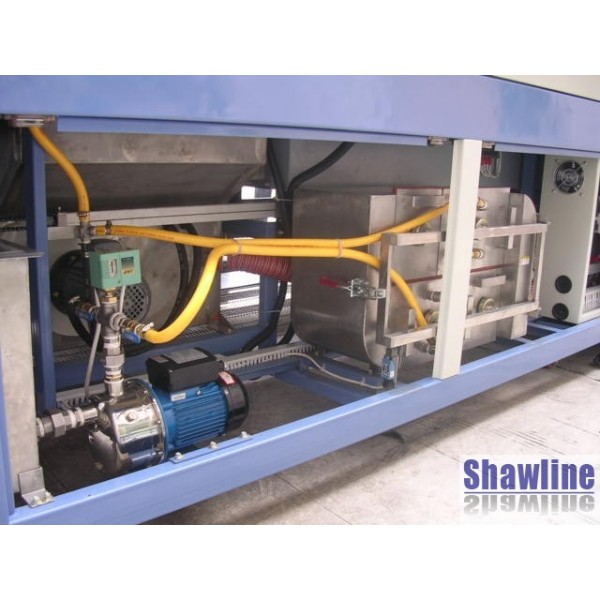

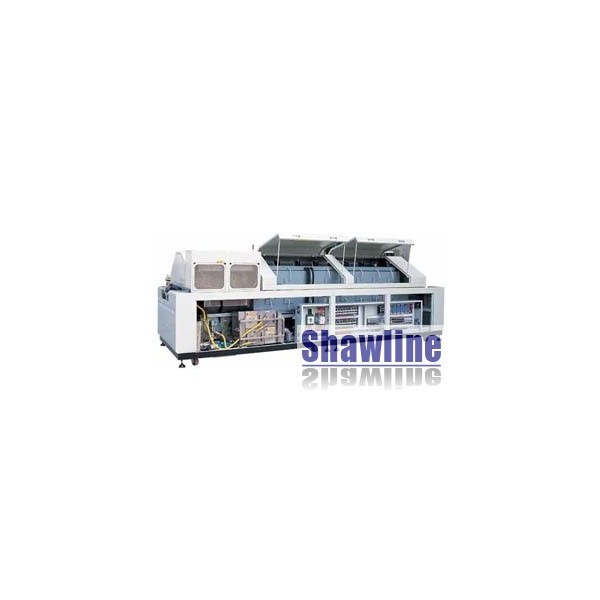

- Optional internal chiller
- Optional N² atmoshpere
- Windows 8© operating system
- 12 months ALL parts + 36 months heaters & blowers warranty
- Full installation and training available
|
Manufacturer: |
CRE Manufacturing Equipment |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Model: |
CR-10000 |
|
Description: |
Energy efficient forced convection reflow oven |
|
No of Heated Zones: |
10 vertical, with 20 independenlty controllable heaters |
|
Total Heated Length: |
340cm |
|
Active Temperature Range: |
50°C to 350°C |
|
Ramp Rate: |
Ambient to 300°C in 25 mins (with full power start) |
|
Cooling: |
120cm fan ambient with optional self contained chiller |
|
Conveyor Type: |
Combi mesh and edge with pin motor width adjust |
|
Conveyor Speed: |
40 to 180cm per min |
|
Conveyor Width: |
Edge pin 50 to 450mm, mesh only 570mm, combi 480mm |
|
Conveyor Height: |
900 ±20mm standard (950 ±20mm optional) |
|
PCB Clearance (Edge Pin): |
Topside: 30mm, Underside: 25mm |
|
Power Supply: |
415V three phase, 72A per phase max, 70 KW during heat up, approx. 11-16 KW running |
|
Air Supply: |
0.4/0.6 MPa, 6mmØ bore - 10mmØ OD, 0.8 - 4.0 CFM |
|
Exhaust: |
3 x 200mm Ø lip vents @ 400 CFM per vent (1200 CFM Total) |
|
Approx. Dims (L x D x H): |
5.50 x x 1.52 x 1.57(L x D x H) excl. light tower |
|
Approx. Weight: |
2100 kgs (2,430 kgs shipping weight) |
|
Availability: |
4 weeks build time + 4 weeks seafreight |
