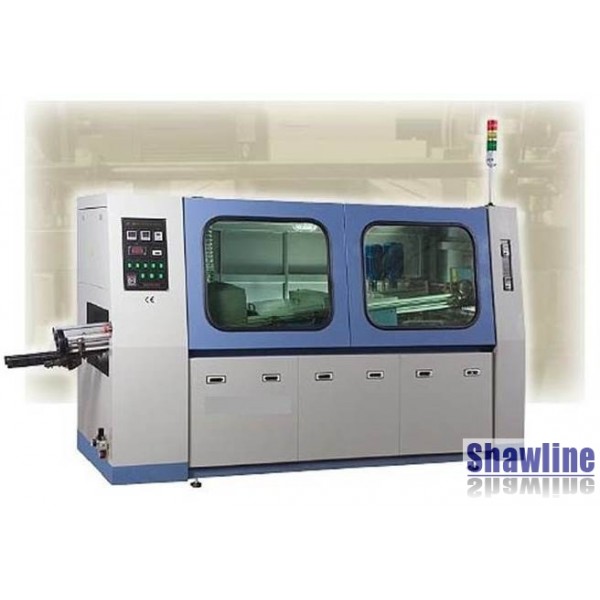

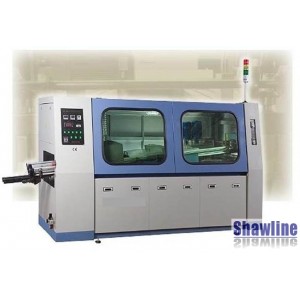

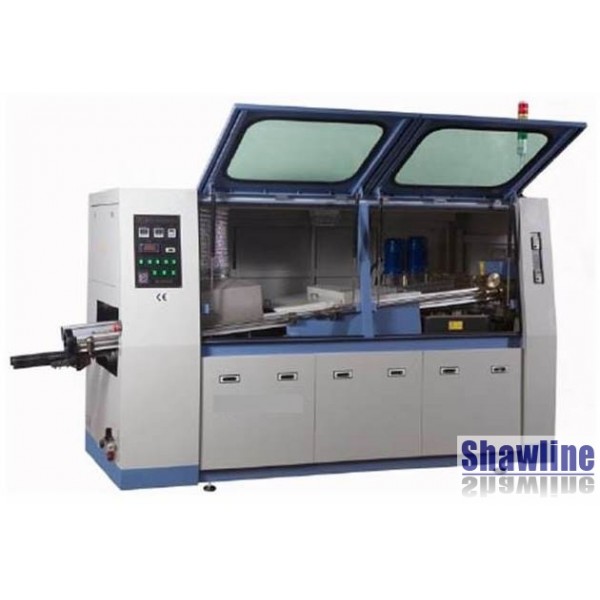

13D-400 Lead Free Wave Soldering Machine
NEW TO ORDER; Dual Wave Lead Free Soldering Machine
Categories

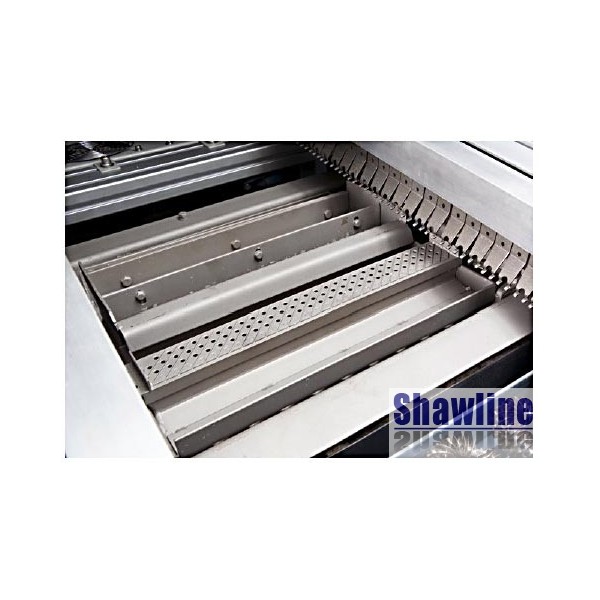

- Dual Wave Technology with Titanium Alloy Nozzles

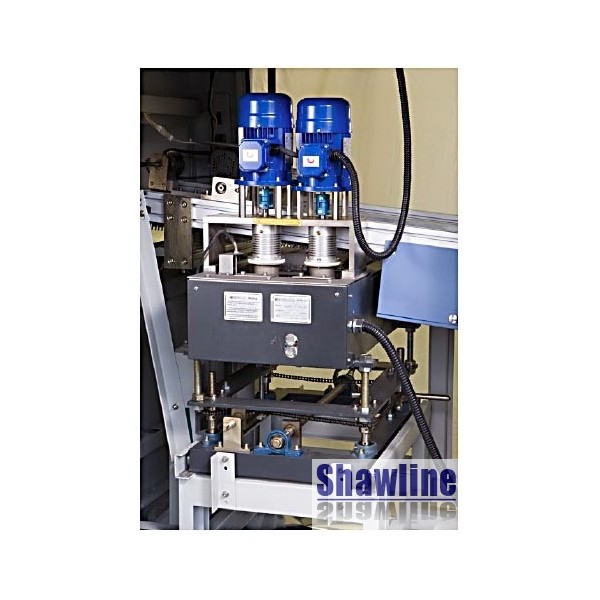

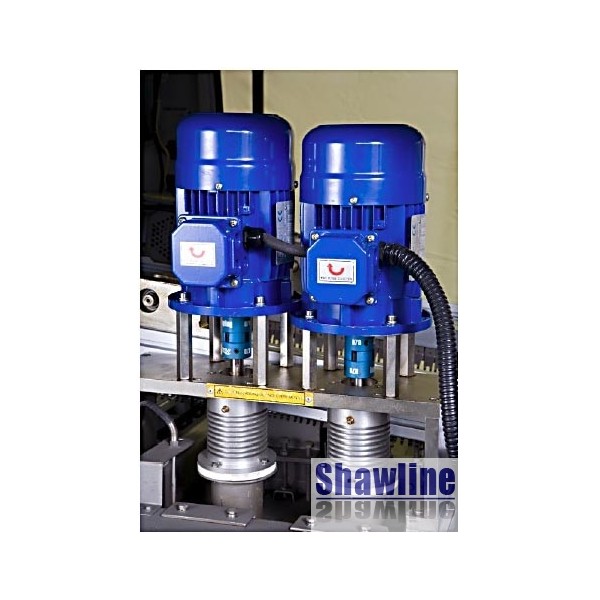

- Dual Pump Motors with transducer control

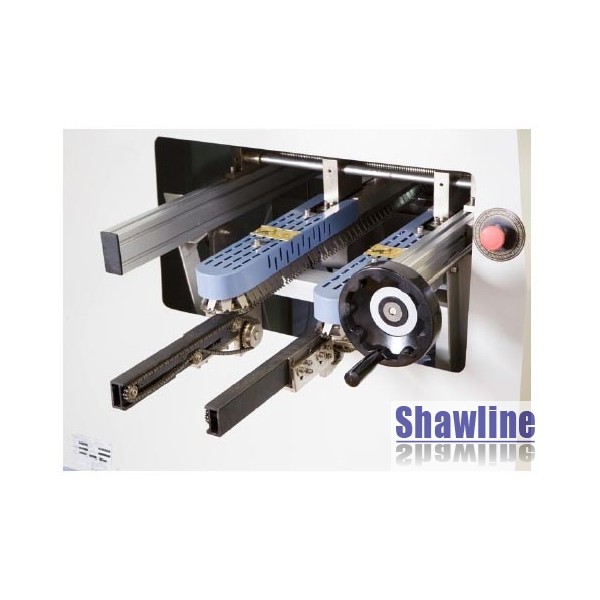

- Titanium Alloy Finger Conveyor with auto width adjust and integral finger cleaner

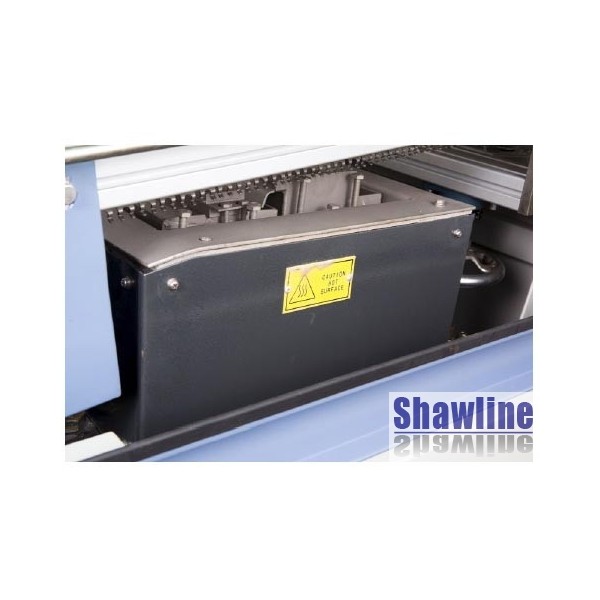

- Motorised 'in-out, up-down' Solderbath

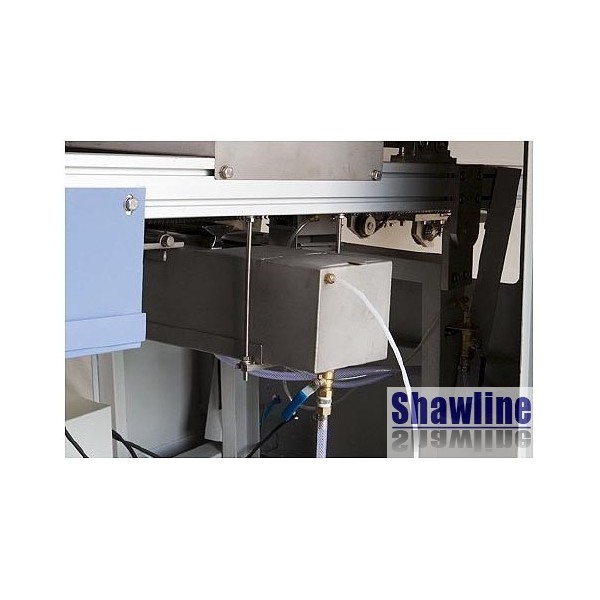

- Automatic 400mm Spray Fluxer

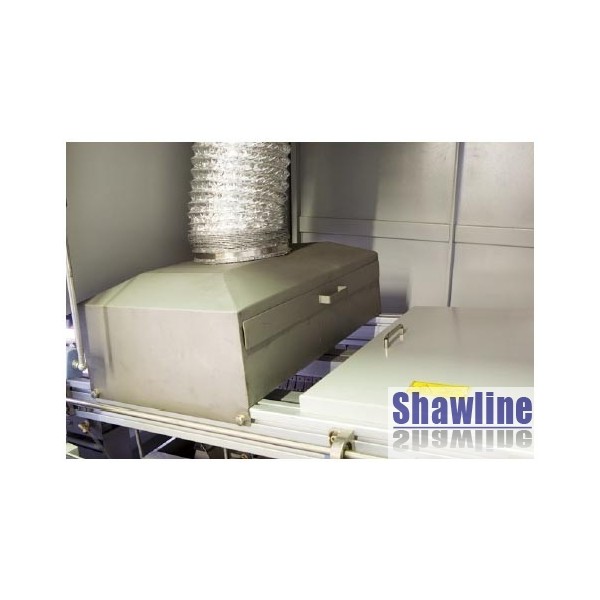

- Flux Fume Hood and Integral Filter
- 12 months parts warranty
|
Manufacturer: |
CRE Shenzhen, China |
|
UK Support From: |
Shawline, Weymouth UK www.shawline.co.uk |
|
Model: |
13D-400 |
|
PCB/Conveyor Width: |
30 to 400mm (1.2” to 15.75”) |
|
Conveyor Speed: |
0 to 900mm/min (0” to 35”/min) |
|
Conveyor Angle: |
4o to 6o adjustable |
|

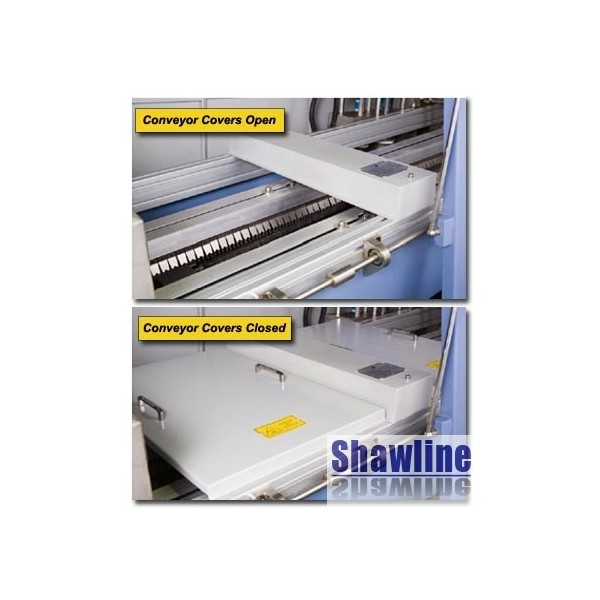

Conveyor Type: |
Titanium edge finger, integral cleaner, manual width adjust |
|

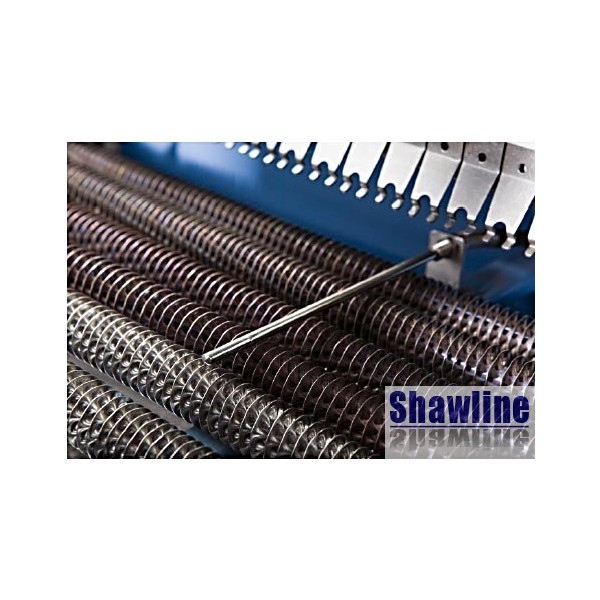

Pre Heat Length: |
800mm (35”) |
|
Pre Heat Power: |
7.5KW |
|
Pre heat Temperature: |
Ambient to 250oC |
|
Solder Bath Capacities: |
190 kgs |
|
Solder Heat Power: |
12 KW (220V) |
|
Solder Temperature: |
Ambient to 300oC |
|
Max. Wave Height: |
12mm (0.47”) |
|
Cooling: |

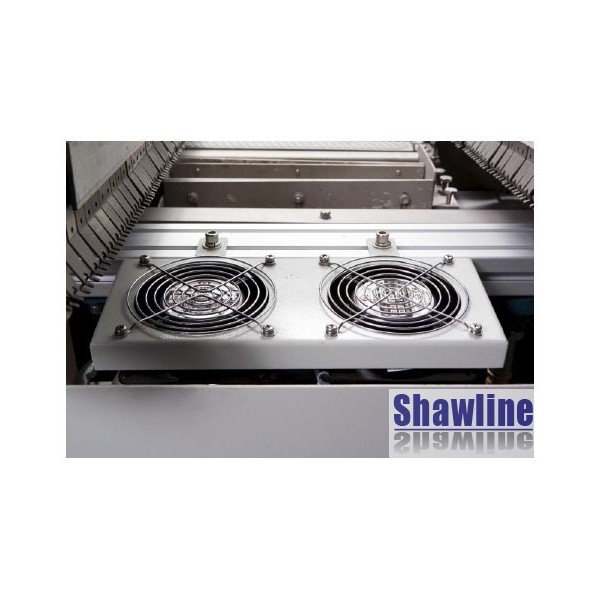

Twin 38W fans with fume hood and integral flux filter |
|
Power Requirement: |
380V 3 phase 50/60 Hz Current: Peak: 20KW |
|
Air Supply: |
60 PSI (0.4 MPa) |
|
Control Method: |
Panel control/SSR |
|
Approx. Dims (L x D x H): |
3.50 x 1.39 x 1.60m (11.5' x 4.56' x 5.25') |
|
Approx. Weight: |
1100 kgs dry weight (1300 kgs Shipping Weight) |
|
Availability: |
4 weeks manufacture plus 4 weeks shipment |
|
Incoterms Delivery Point: |
DDP UK Mainland |
