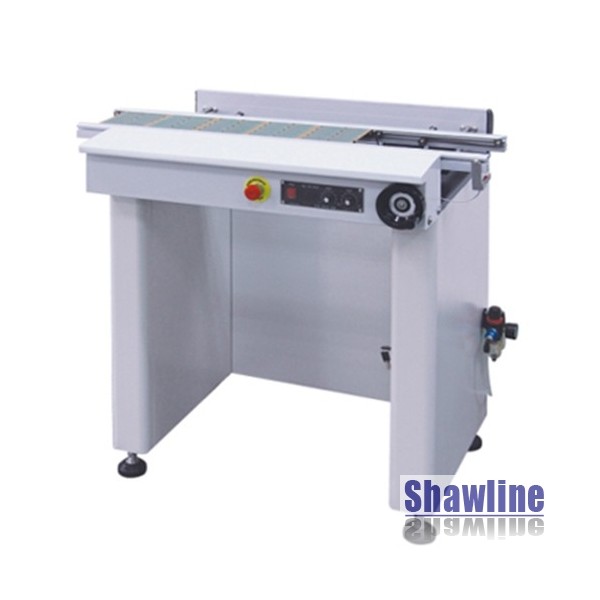

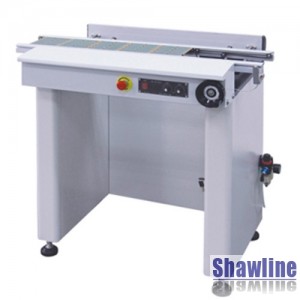

Accumulating Conveyors

NEW, 1.0m and 2.0m length Accumulating/Buffer Conveyors

More details

Please Login to view our prices

  • All metal solid design accumulating conveyor
  • Stainless steel lead screw width adjustment
  • Ergonomically designed arm rest
  • Adjustable Speed Control
  • SMEMA Compatible

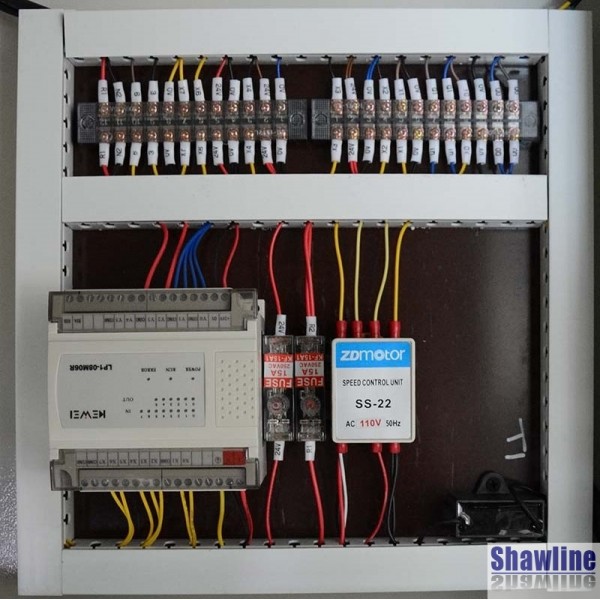

  • KEWEI PLC  (optional Omron PLC with Ethernet connectivity)
  • Keyence Japan sensor control
  • Fully CE compliant and CE marked
  • 2 year parts warranty
  • SMEMA Compatible with upline/downline cables supplied



Manufacturer:

Manufactured in China

UK support from:

   Shawline www.shawline.co.uk

Model:

1.0m - 100VMW2 - max pcb size 460 x 350mm

1.0m - 100VLW2  - max pcb size 535 x 400mm

1.0m - 100VXW2  - max pcb size 535 x 460mm

2.0m - 200VXW2  - max pcb size 535 x 460mm

Description:

Accumulating Buffer Conveyor
PCB transfer height:

950 +/- 30 mm
Min. PCB length:

50mm to (see 'Model' above)
Min. PCB width:

50mm to (see 'Model' above)

PCB thickness:

   0.4 - 2.5 mm
PCB edge clearance:

3mm (running on 4.8mm ESD flat section belts)

Transfer Speed Range:

1-12 m/min adjustable

Power Supply:

230v single phase 100VA max.

Air Supply:

N/A

Approx. Dims and Weights:

100VMW2 - 1.00 x 0.65 x 0.90m  -   78 kgs

100VLW2  - 1.00 x 0.70 x 0.90m  -   83 kgs

100VXW2  - 1.00 x 0.75 x 0.90m  -   88 kgs

200VXW2  - 2.00 x 0.85 x 0.90m  - 174 kgs

Availability:

4 weeks build + 6 weeks shipping DDP UK mainland
