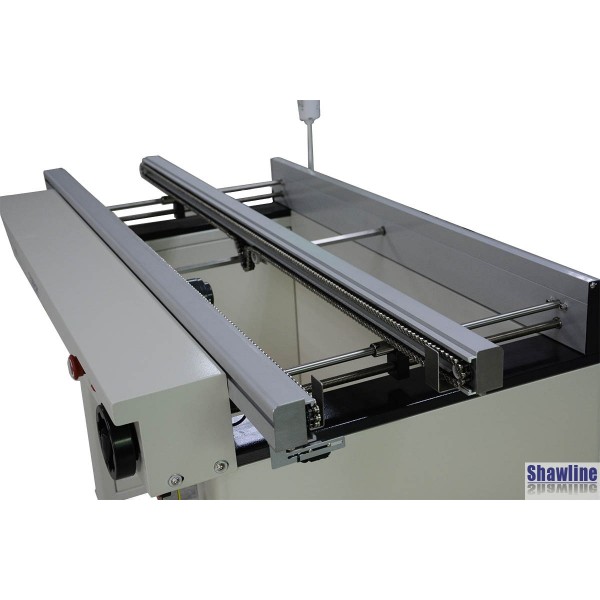

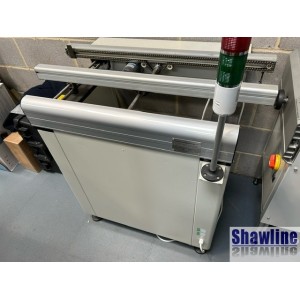

1.0m Edge Roller Conveyor
PRE OWNED, 1.0m Edge Roller/Accumulating Conveyor, 2018
Categories
- For handling high temperature PCB's (oven/wave solder output etc.)

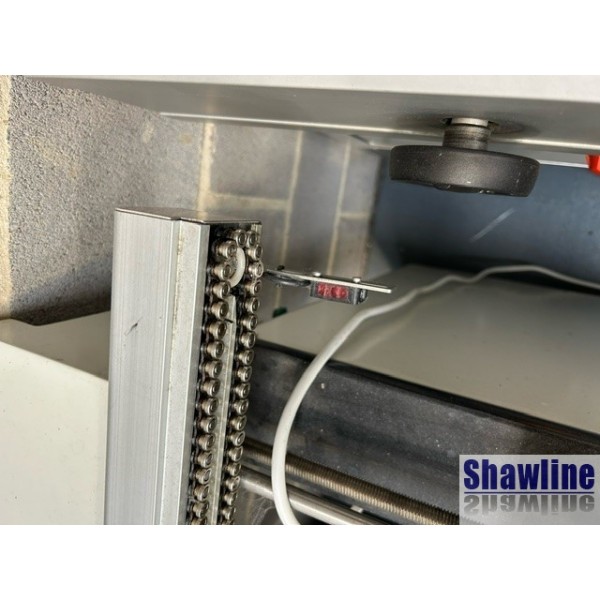

- Carbon steel 35B roller chain
- PCB's rest against hard stop at end of conveyor
- Chain rollers 'free wheel' beneath PCB's waiting against hard stop

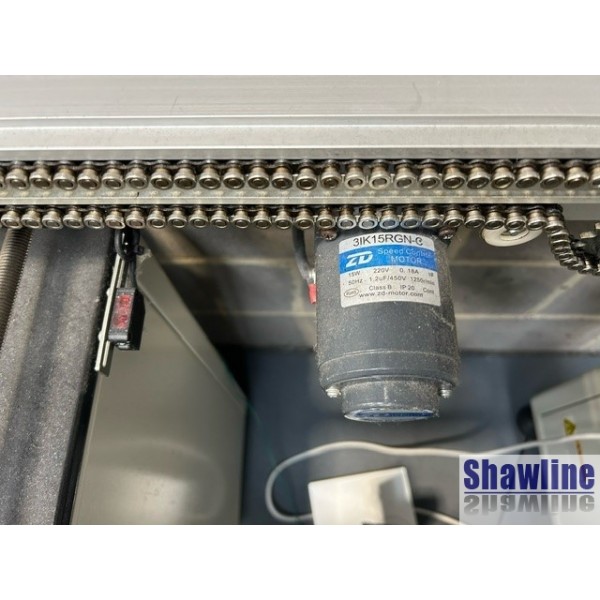

- Motor runs continuously until timeout or input sensor triggers conveyor is full

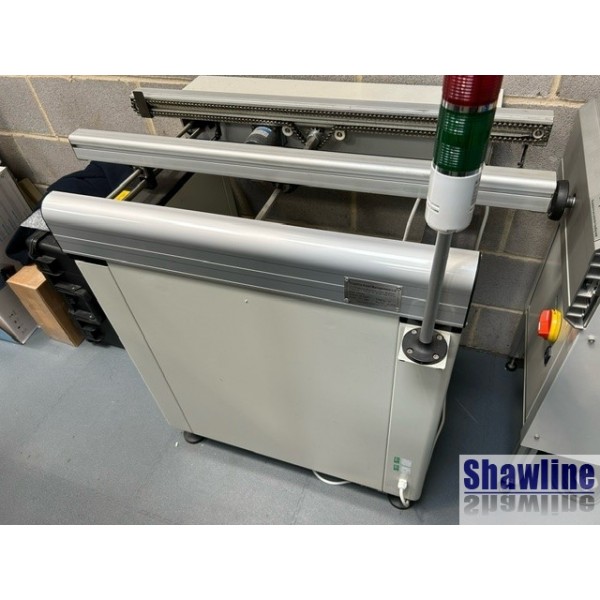

- Light tower plus audible alarm
- PLC logic controller not required
- Adjustable speed
- L to R running
- Light use only - in storage since Jun 2023
|
Manufacturer: |
Manufactured in China (WEC) |
|
UK support from: |
Shawline www.shawline.co.uk |
|
Model: |
1.0m - 100ERM |
|
Serial No: |
BP-00060 |
|
Date of Manufacture: |
Jun 2016 |
|
Description: |
Edge Roller Conveyor |
| Board transfer height: |
900 +50/-20mm |
| Board length: |
50mm - 460mm |
| Board width: |
50mm - 350mm |
|
Board thickness: |
0.4 - 5.0 mm |
|
Belt Dia: |
5mm wide flat rollers |
| Board edge clearance: |
5mm |
|
Transfer Speed Range: |
1-12 m/min adjustable |
|
Power Supply: |
230v single phase 100VA max. |
|
Air Supply: |
N/A |
|
Approx. Dims and Weights: |
100ERM - 1.00 x 0.74 x 0.90m - 74 kgs |
|
Availability: |
EXW 7/10 days |
