TRA I-F82S 8 Zone Reflow

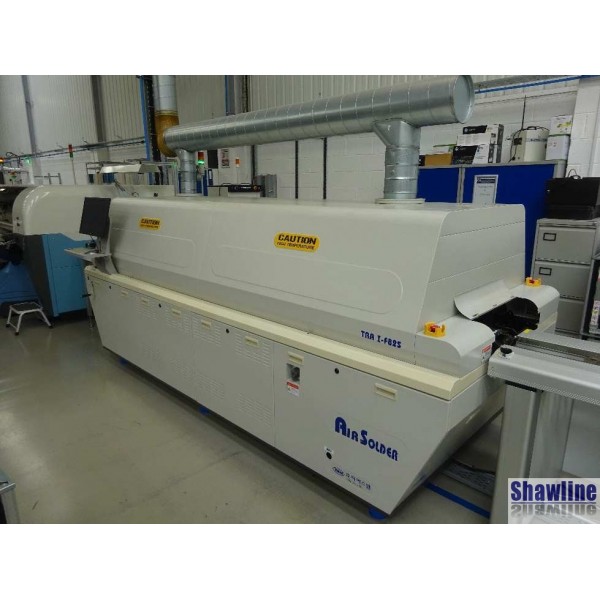

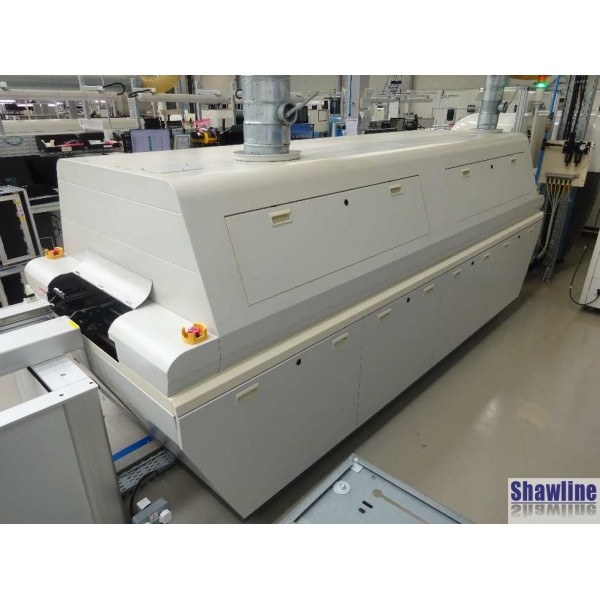

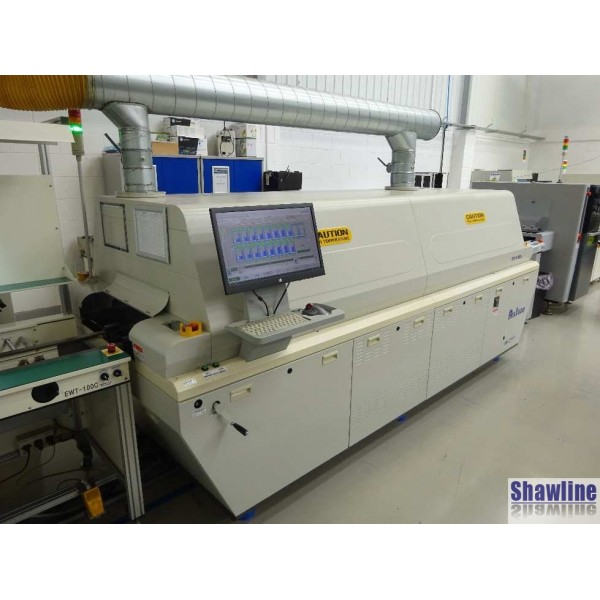

USED, TSM TRA I-F82S Compact Reflow Oven, 2017
Categories
- 8 zone with top side & underside heating (16 controllable zones)
- Pb free capability
- L to R (fixed front) Edge pin conveyor with motorised width adjust
- Centre Board Support (CBS) by hand crank width adjust
- Auto chain oilers (software controlled)
- Hard wearing steel conveyor rails
- Pnuematic hood lift
- Soft start capability
- Correct 5 wire STAR transformer 3 phase conversion (by Europlacer)
- Easy to use MMI software
- Board count/drop monitoring
- Compact footprint - just over 3.6m line length!
- TWO identical ovens available - price for each oven (not the pair!)
|
Manufacturer: |
TSM Co. Ltd., S. Korea www.tsms.kr |
|
UK Support From: |
Europlacer Ltd., Poole www.europlacer.com |
|
Model: |
TRA I-F82S |
|
Serial No: |
tba |
|
Date of Manufacture: |
2017 |
|
Production Hours: |
Full working order with no known faults |
|
Software: |
tba in Windows 8 (tbcf) |
|
No of Heated Zones: |
16, 8 topside, 8 underside |
|
Total Heated Length: |
220cm (86.6") |
|
Temp Accuaracy: |
± 1°C |
|
Cooling: |
Ambient, fan assisted, two zones |
|
Conveyor Type/Speed: |
Edge pin/cbs - 30 to 160cm per min |
|
Conveyor Width: |
80 to 410mm |
|
Power Supply: |
415V three phase 70A, 42kW approx. (10kW running) |
|
Air Supply: |
70 - 80 psi (6-7 BAR) for hood raise only |
|
Exhaust: |
2*Top Hood Lip Vents 150mmØ (input) 200mmØ (output) |
|
Approx. Dims (L x D x H): |
3.62 x 1.36 x 1.45m (L x D x H) excluding light tower |
|
Approx. Weight: |
1700 kgs approx. |
|
Availability: |
EXW Midlands UK, available Q3 or Q4 2026 |
