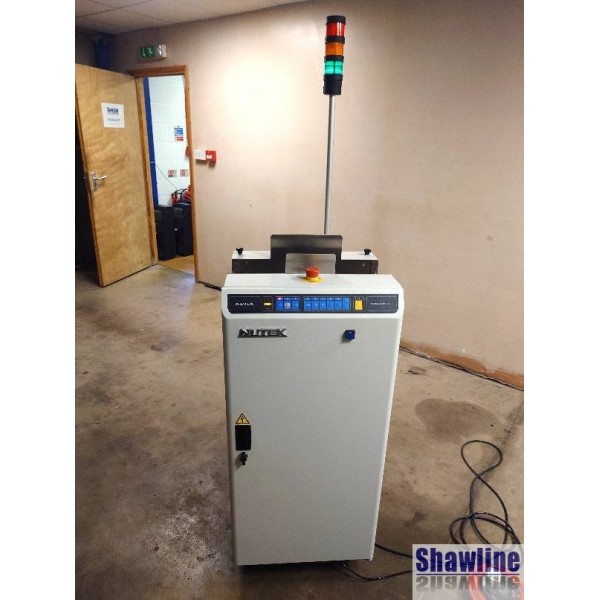

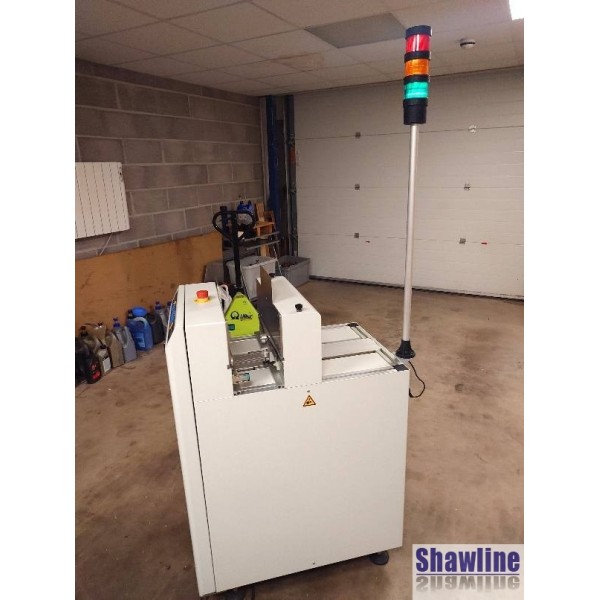

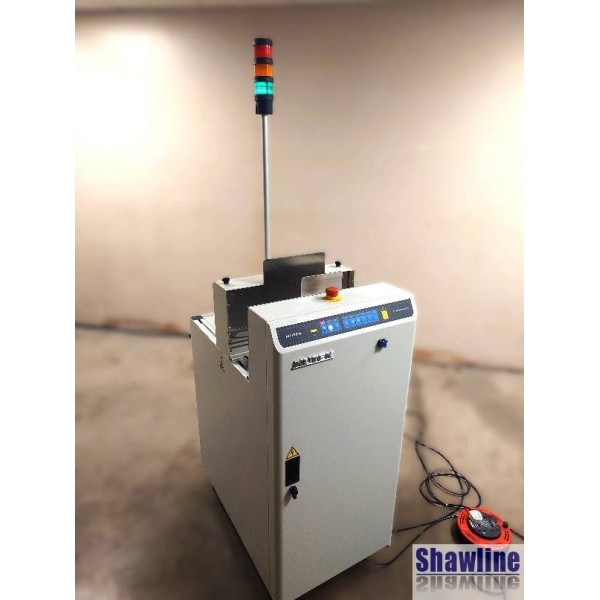

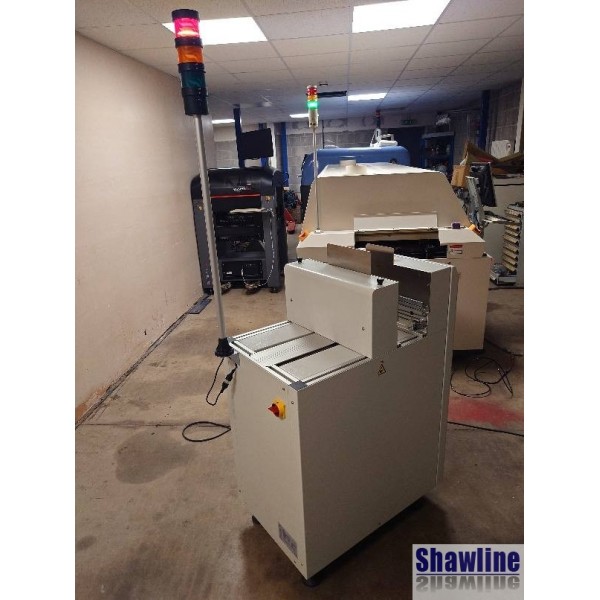

NUTEK Bare Board Destacker 'L' Size
USED, Nutek Bareboard De-stacker, 2013
Categories
- 'L' Size - max. PCB size 457 x 407mm (L x W)
- Small footprint (0.5m line length)
- Drop down board release action
- Fresh, 'as new' condition

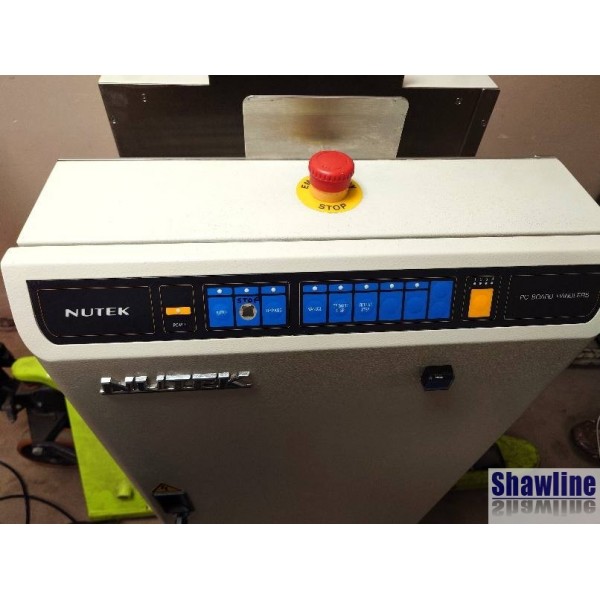

- Only evidence of wear = worn 'STOP' button (tactile key still works normally)
- By pass mode selectable without removing PCB stack
- SMEMA compatible
- Left to right running
- Front fixed rail
- CE marked
|
Manufacturer: |
Nutek Singapore PTE http://www.nutek.com/ |
|
UK support from: |
Nutek UK Ltd., Colchester www.nutek-uk.com |
|
Model: |
NTE0220DSL |
|
Serial no: |
2012-0778A01 |
|
Date of manufacture: |
Jan 2013 |
|
Production hours: |
Unknown but little use last 18 months |
| Board transfer height: |
950 +/- 25 mm L to R front fixed rail |
| Board length: |
80 - 457 mm |
| Board width: |
80 - 407 mm |
|
Board thickness: |
0.4 - 4.2 mm |
|
Board clearance (for pass thru): |
30mm topside - 30mm underside |
|
Max. PCB stack height: |
200mm |
| Board edge clearance: |
3 mm |
|
Belt speed: |
12m/min |
|
Power Supply: |
230v single phase 350VA max. |
|
Air Supply: |
6 BAR (120 l/min max.) |
|
Approx. Dims (L x D x H): |
0.50 x 0.91 x 1.33m |
|
Approx. Weight: |
130 kgs dry weight |
|
Availability: |
Ex-stock Dorset UK |
