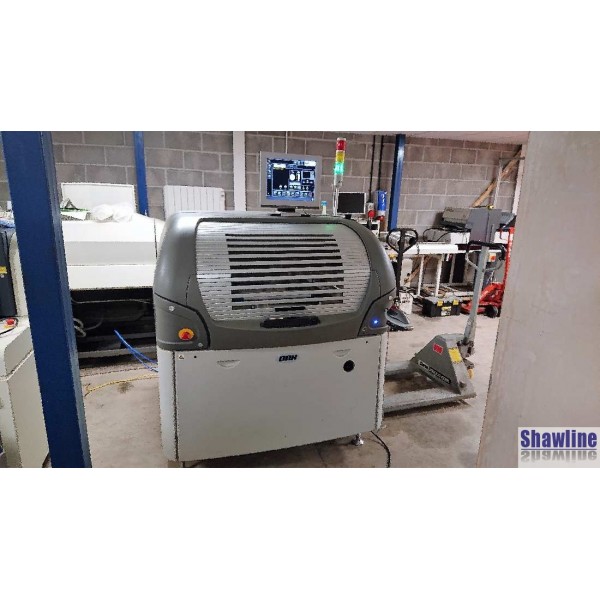

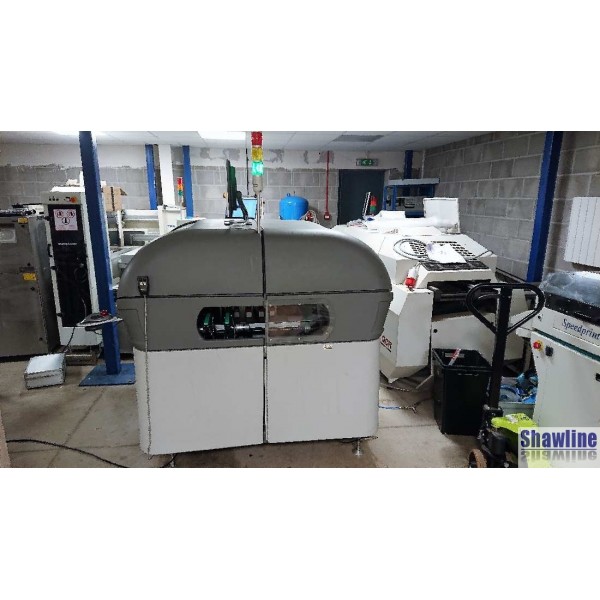

DEK Horizon 03
USED, DEK Horizon 03 (2007)
Categories
- Variable stencil width - 300 to 736mm (12" to 29")
- Twin Squeegees with metal blades (3 prs included 20, 40, 48cm)
- 'HawkEye' 750 graphite digital camera with 2D solder inspection activated
- 'GridLock' underboard support system (min. 3 lengths included)
- Magnetic post underboard tooling in addition
- Auto rail width adjust
- DEK 'blue' wet/dry/vac programmable USC
- Known fault - Internal spotlights (2) not working, no voltage to switch
- Seller describes as '.....appears to be a very reliable printer'
|
Manufacturer: |
ASM/DEK Printing Machines, Weymouth UK www.dek.com |
|
UK Support From: |
ASM/DEK Printing Machines, Weymouth UK www.dek.com |
|
Model: |
Horizon 03 |
|
Serial No: |
292993 - Sales Order No. M10-90078 |
|
Date of Manufacture: |
2007 |
|

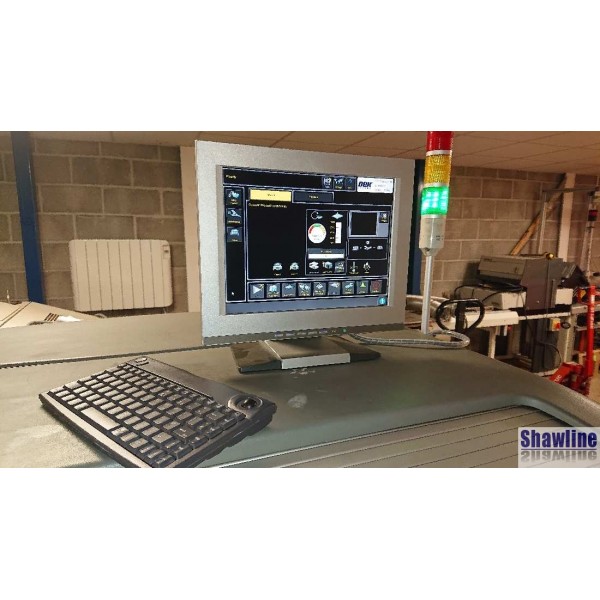

Software Rev: |
09-SP06-P06 running in Windows XP |
|
Stencil Size: |
max. 29” x 29” (736 x 736mm) adjustable |
|
Image Justification: |
Front/centre |
|
Min. / Max. Board Size: |
50mm x 40.5mm to 510mm x 508mm |
|
PCB Thickness: |
0.2 to 6.0mm with top clamping |
|
Print Speed: |
2.0 to 300mm/sec |
|
Print Pressure: |
0 to 20kgs programmable (closed loop feedback) |
|
Print Gap: |
0 to 6mm programmable |
|
Stencil Separation: |
Speed - 0.1 to 20mm/sec Distance - 0 to 3mm |
|
Conveyor Feed: |
Pass thru' L to R, R to L (programmable) fixed front rail |
|
Power Supply: |
Single Phase 230v 50/60Hz 7A |
|
Air Supply: |
5 – 8 BAR @ 5 litres per min (Air Quality to ISO 8573) |
|
Approx. Dims (L x D x H): |
1.32 x 1.61 x 1.49m |
|
Approx. Weight: |
760 kgs dry weight (excluding peripherals) |
|
Colour: |
2 tone Dark Grey/Ivory |
|
Availability: |
Ex stock Midlands UK |
