• Twin lanes on 8mm tape size
• Single lane on =>12mm
• Electronically variable pitch

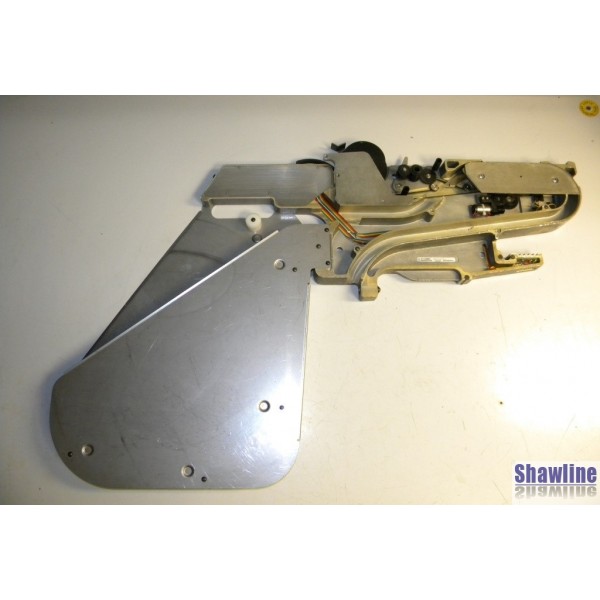

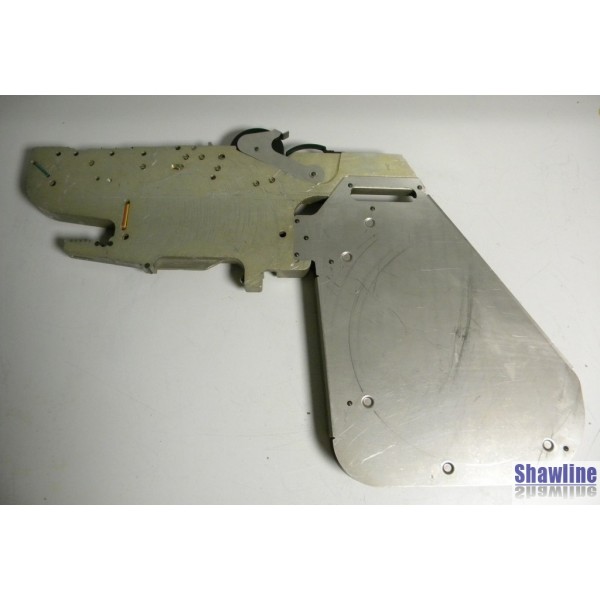

• The 'original' intelligent feeder

Manufacturer: Europlacer (France)

Machine Model: All from EP series through Access 4, Progress 6, Finesse, Vitesse, Xpress, Inneo 1 & 2

Date of Manufacture: from 2012

Production Hours: Unknown, cleaned and tested to index repeatedly

Sizes:

E112661: NTHP New Type High Precision Intelligent Tape Feeder 8mm (Twin lanes) 180mm reels - Max pocket depth: 4.0mm nominal

E113213HP: HIGH PRECISION 2mm step Intelligent Tape Feeder 8mm (Twin lane), NEW STYLE (with fiducials), 180mm reels - Max pocket depth: 4.0mm nominal

E112662: 8mm GEN 2 NT Intelligent Tape Feeder (Twin lane) with fiducials, 330mm reels - Max. pocket depth: 4.0mm nominal

E112667: 12mm GEN 2 NT Tapefeeder, with fiducial - Pocket depth: min. 10 - max. 14mm*

E112668: 16mm GEN 2 NT Tapefeeder, with fiducial - Pocket depth: min. 10 - max. 16mm*

E112669: 24mm GEN 2 NT Tapefeeder NEW STYLE (with fiducial) - Max. pocket depth 16mm*

E112675: 32mm GEN 2 NT Tapefeeder NEW STYLE (with fiducial) - Max. pocket depth 16mm*

E112676: 44mm GEN 2 NT Tapefeeder NEW STYLE (with fiducial) - Max. pocket depth 16mm*

E112677: 56mm GEN 2 NT Tapefeeder NEW STYLE (with fiducial) - Max. pocket depth 16mm*

E112679: 88mm GEN 2 NT Tapefeeder NEW STYLE (with fiducial) - Max. pocket depth 16mm*

*NB: some 'deep pocket' tapes may also be affected by the radii of drive spindles etc., where the pocket profile may 'clash' when turning. If in doubt, please send a sample of empty tape and we'll be pleased to try it (subject to holding the required size of feeder)

Please log-in to check current stock and pricing
