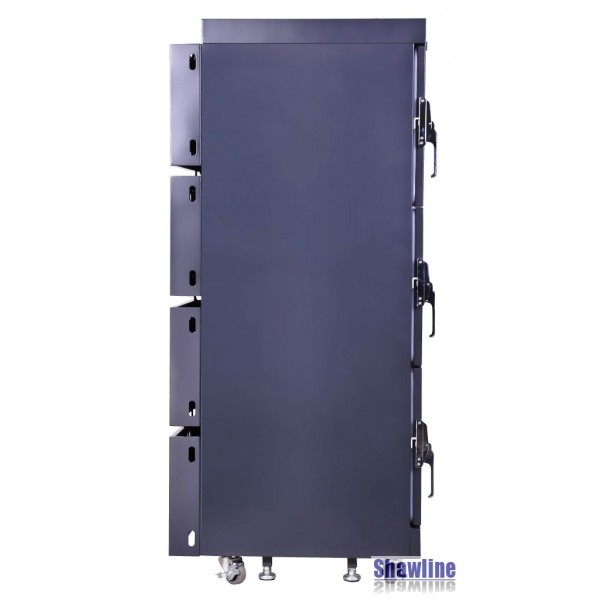

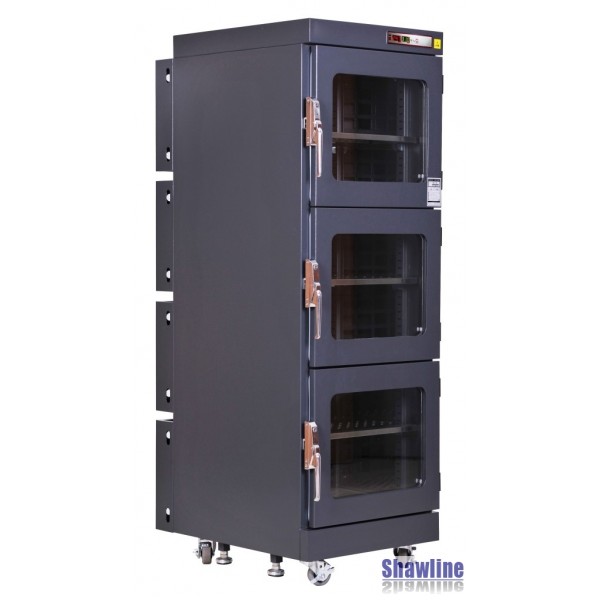

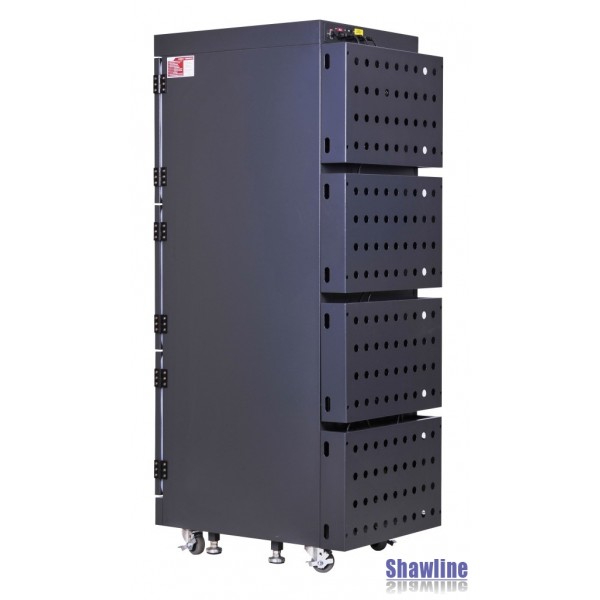

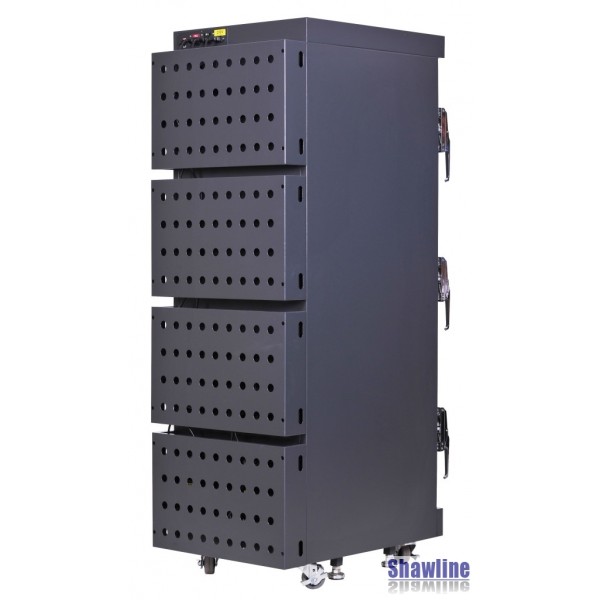

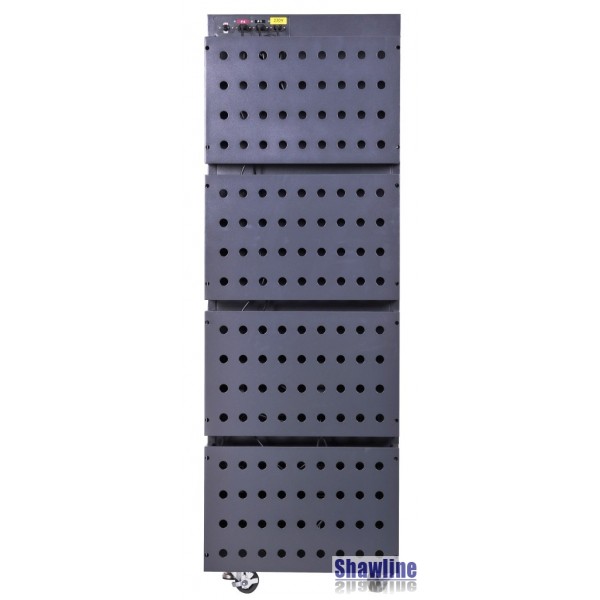

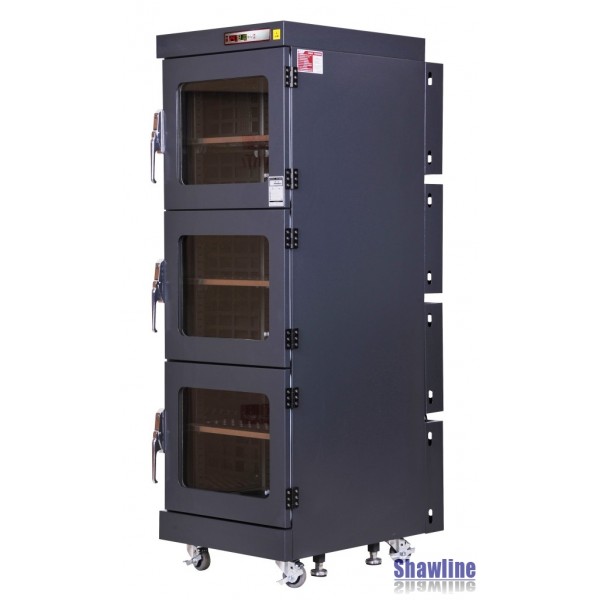

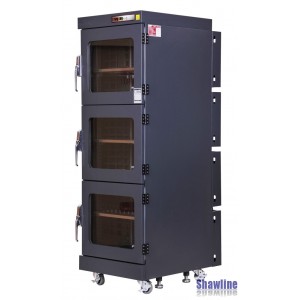

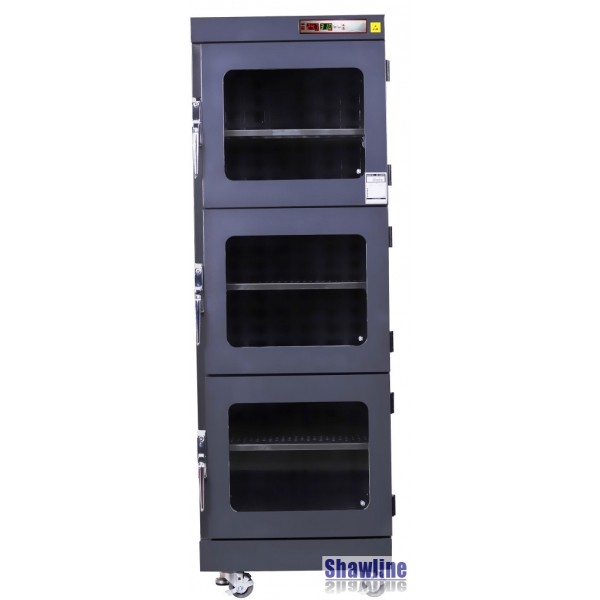

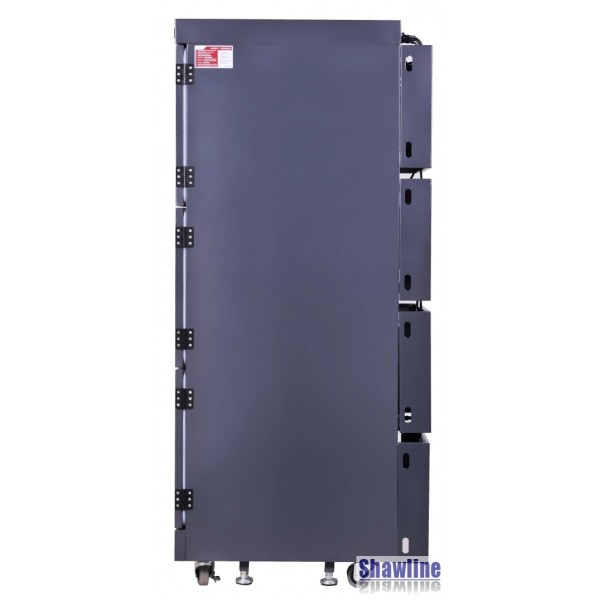

T40-790 BAKING DRY CABINET
NEW, 466L Baking Dry Cabinet
Categories
- Combined BAKING and low RH STORAGE
- Rugged 1.0mm carbon steel construction
- Compression handles and airtight magnetic sealers
- ESD paint 106~109Ω surface resistance
- 940mm 1MΩ Grounding Wire
- Desiccant automatically regenerates (user to manually maintain dessicant levels)
- Anti-static castors (2) w/ brake (2) unbraked
- LCD readout displays displays temperature and RH level
- Meets or exceeds J-STD-033B standards for component floor-life restoration and storage
- Modular design (plug and play) for later upgrades
|
Manufacturer: |
Manufactured in China |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Model: |
T40-790 |
|
Date of Manufacture: |
New - made to order |
|
Description: |
Baking Dry Cabinet |
|

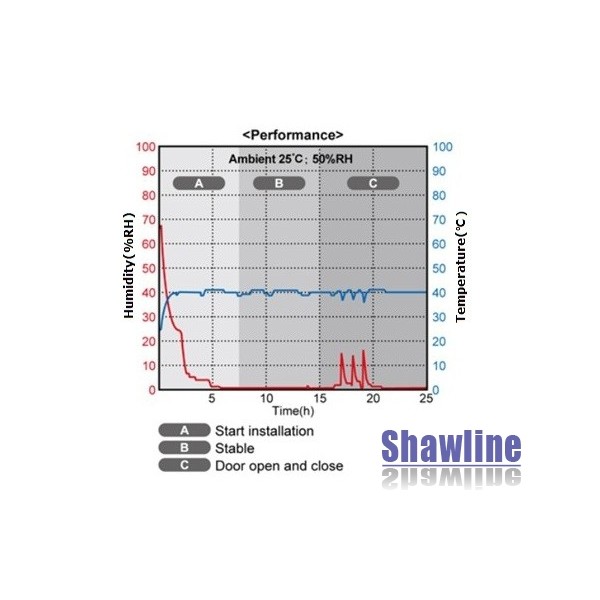

Max. Baking Temp: |
40oC ± 2oC ≤ 5% RH |
|
Post Bake Storage: |
≤ 5% RH (based on ambient 25oC, 50% RH) |
|

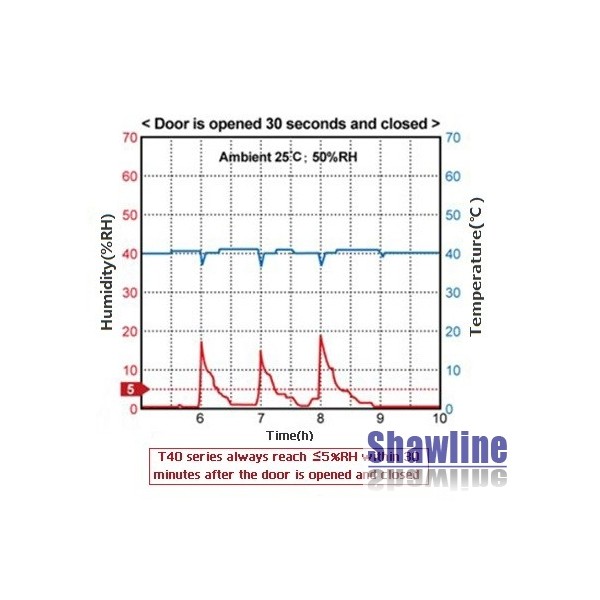

Recovery Time: |
≤ 5% RH within 30 mins (based on 30 secs door open/close) |
|
Internal Dimensions: |
544*576*1487mm (L*W*H) |
|
Available Volume: |
466L |
|

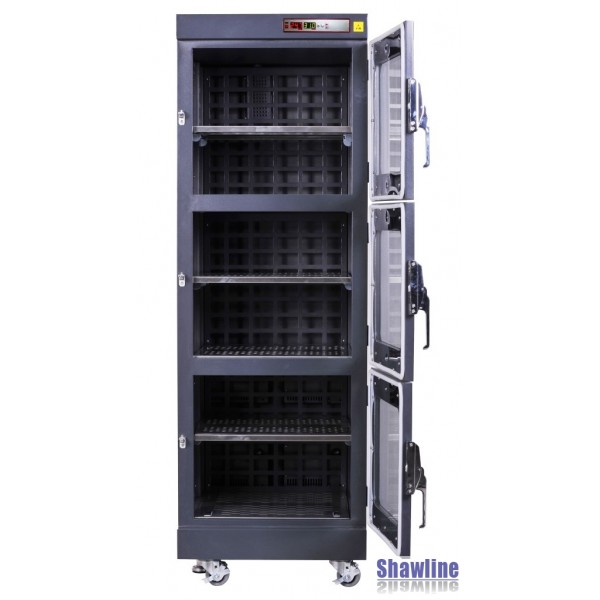

No Shelves/Shelf Size: |
(5) / 502*522*20mm |
|
Shelf Loading Capacity: |
45 kgs ea |
|
No. Turbo Dryer Modules: |
2 |
|
No. Heater Modules: |
2 |
|
External Dimensions: |
600*840*1820mm (L*W*H) |
|
Power Supply: |
220vAC Single phase 13A, Max. 600W, Av. 300Wh |
|
Shipping Size (L*D*H): |
730*980*1995mm (29"*39"*79"), crated with vac. pack |
|
Shipping Weight: |
214 kgs |
|
Availability: |
6/8 build + 4/6 weeks seafreight |
