INERTEC 3.3i Selective Solder

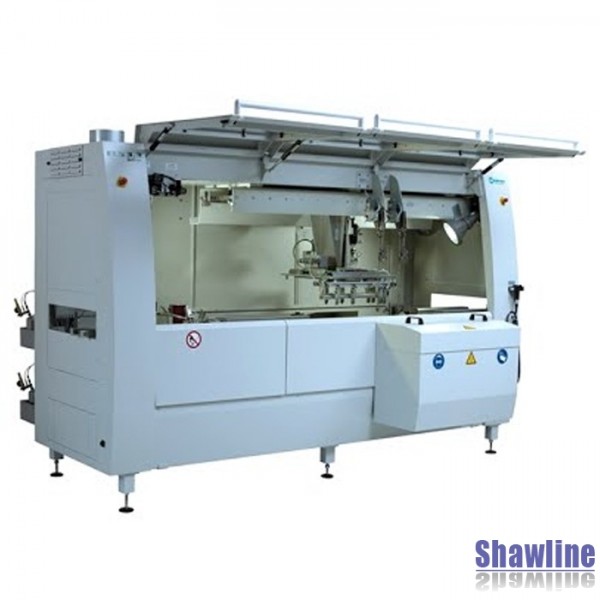

USED, INERTEC 3.3i Selective Soldering m/c, 2015
Categories
- High capacity twin nozzle selective solder
- Capability to solder 2 PCBs simultaneously
- Selective spray fluxer (minimises PCB cleaning)
- Full titanium solder pot construction
- Twin 3kW miniwave solder jets with independent control
- Interchangeable solder nozzles
- real-time camera to view soldering process
- 3 stage processing allows flux/preheat/solder on 3x2 PCBs simultaneously
- PillarGEN-80 N2 Generator available separately here
|
Manufacturer: |
Inertec Lottechnick GmbH - https://www.inertec.de/ |
|
UK Support From: |
Altus Group Ltd, Redditch - http://www.altusgroup.co.uk/ |
|
Model: |
ELE 3.3i |
|

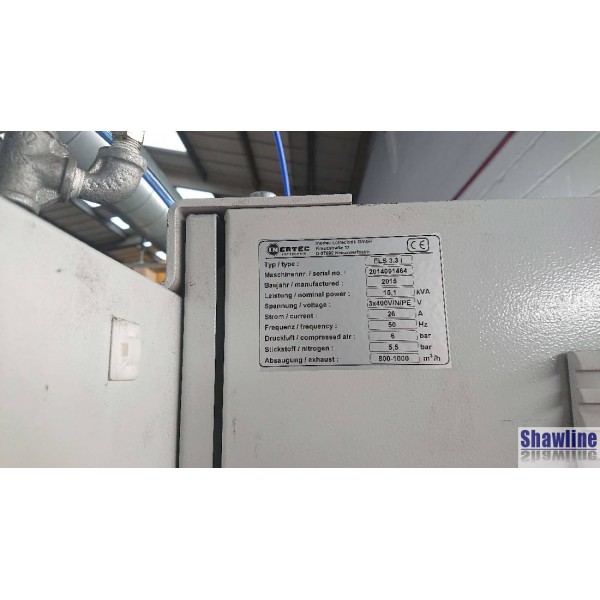

Serial No: |
2014091464 |
|
Date of Manufacture: |
First commissioned 2015 |
|
Production Hours: |
Single shift, recently serviced, unused last 12 months |
|
Description: |
Twin jet nozzle in-line selective solder system |
|
Fluxer: |
Selective spray flux system |
|
Pre Heat Power: |
3.6kW programmable |
|
Fluxer: |
Spray flux system 3 - 6mm spray width |
|
Nozzles: |
Titanium, various sizes available from 3mm dia. |
|
Solder Pot Capacity: |
45 kgs approx. |
|
Max. Solder Temp: |
350°C |
|
Max. Process Width: |
460mm |
|
Max. PCB Length: |
460mm |
|
Max. Solder Temp: |
400°C |
|
PCB Thickness Range: |
0.5 - 7.0mm |
|
Power Supply: |
380v 3PH 50/50 Hz 3-12kW |
|
Air Supply: |
6 BAR |
|
N2 Requirement: |
70-85 psi (5-6 BAR) 100 l/min per solder module |
|
Exhaust: |
2*150mm dia. vent @ 1000 m3/hr |
|
Approx. Dims (L x D x H): |
3.15 x 1.10 x 1.80m |
|
Approx. Weight: |
1,000 kgs empty of solder, dry weight |
|
Availability: |
Ex-stock UK Midlands |
