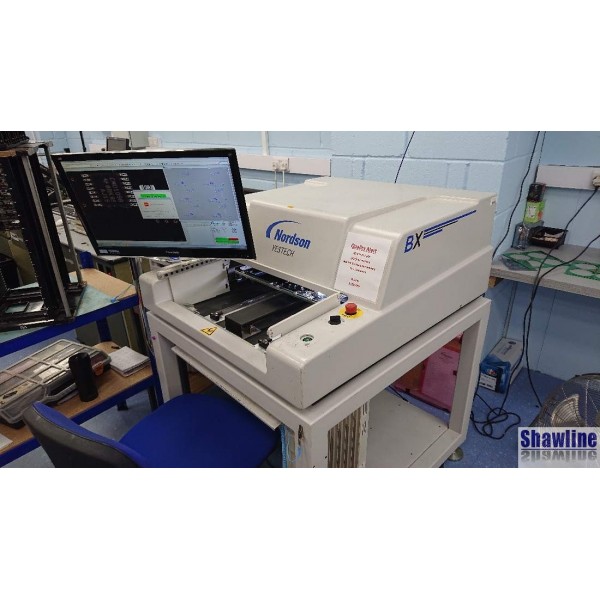

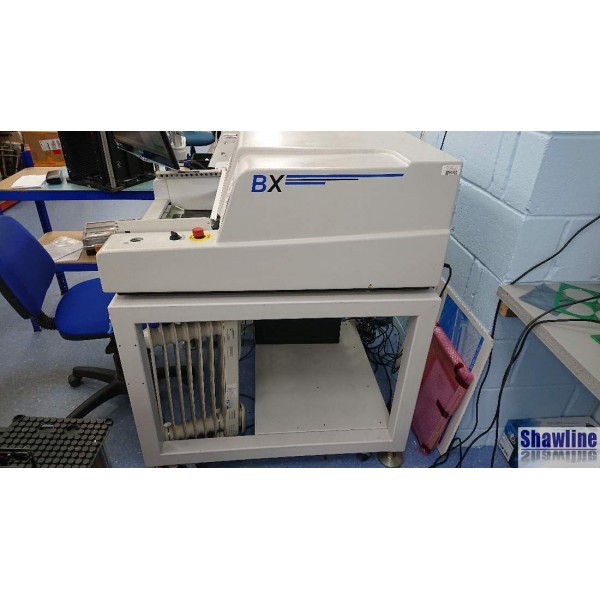

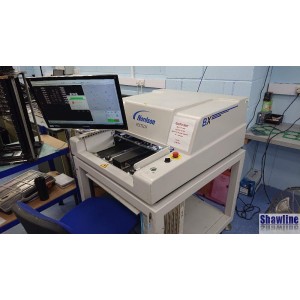

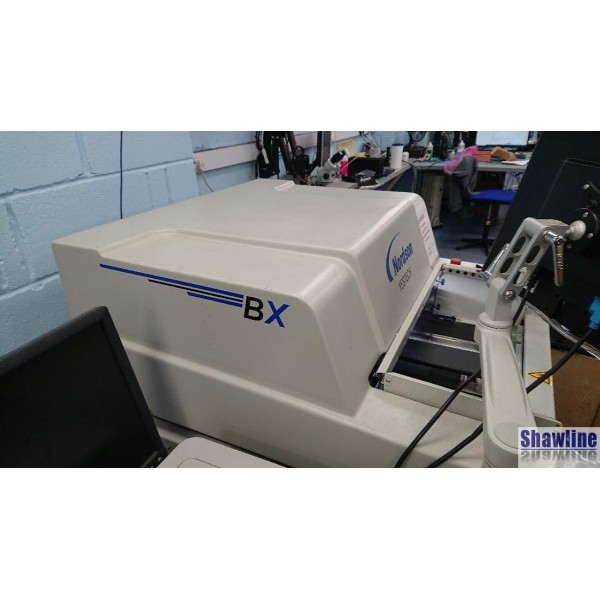

NORDSON YESTECH BX Benchtop AOI
USED, Nordson Yestech BX Benchtop AOI, 2013
Categories
- Latest generation 5 megapixel HDI inspection system
- Optional 4 no. side view cameras fitted
- 01005 capable
- Inspects components: presence, skew, tombstone, polarity, value, text, colour etc
- Inspects solder paste and CIP (components in paste)
- Inspects solder defects & lead defects
- Program from ASCII text, XY position, part no, circuit ref, polarity
- Price includes Windows 7 PC, licence, install discs, dongles and user manuals
|
Manufacturer: |
Nordson Yestech, USA http://www.nordson.com/en/divisions/yestech |
|
UK Distributor/Agent: |
INDUSTRIAL PRODUCTION PROCESSES (IPP) LTD., Bromsgrove |
|
Model: |
BX |
|
Serial No: |
BX13101741 |
|
Date of Manufacture: |
Oct 2013 |
|
Software: |
YesVision v2.8.3b Build 4049 on Win 7 Pro (Service pack 1) |
|
Production Hours: |
Not known - used as back up resource since 2021 |
|
Description: |
High resolution automatic optical inspection |
|
Max. PCB Size: |
457 x 508mm (18" x 20") |
|
Min. Component Size: |
0201 (01005 with high mag option) |
|
Throughput: |
Up to 25cm²/min > 500k components per hour |
|
Component Clearance: |
50mm top, 50mm bottom |
|
Data Outputs: |
Txt, SQL, ODBC, MS Access |
|
Power Supply: |
100-220 Vac / 10A |
|
Air Supply: |
n/a |
|
Approx. Dims (L x D x H): |
0.87 x 1.00 x 0.44m (34" x 39" x 17") excl. PC |
|
Approx. Weight: |
77kg (170 lbs) |
|
Availability: |
EXW UK South |
