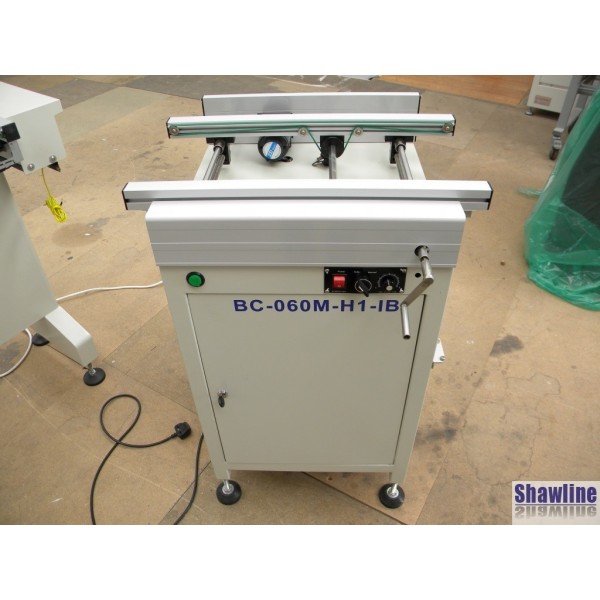

0.6m Link-Inspection Conveyor
NEW, 0.6m Link-Inspection Conveyor
Categories
- All metal solid design link conveyor
- Front fixed rail

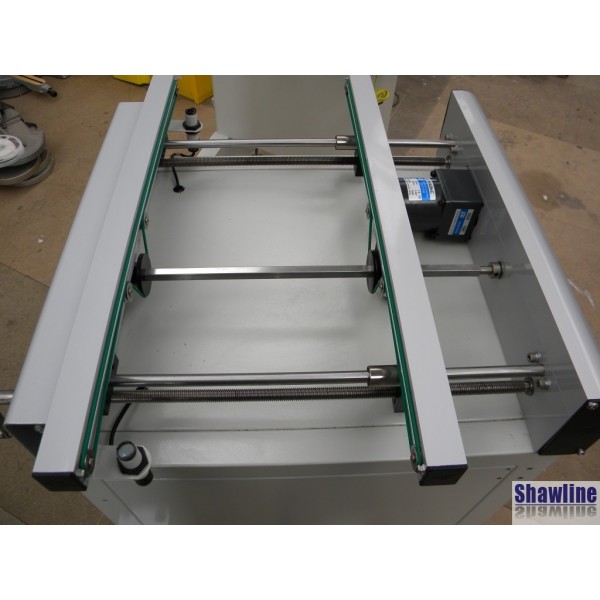

- Stainless steel lead screw rear rail manual width adjustment
- L to R running (optional R to L)

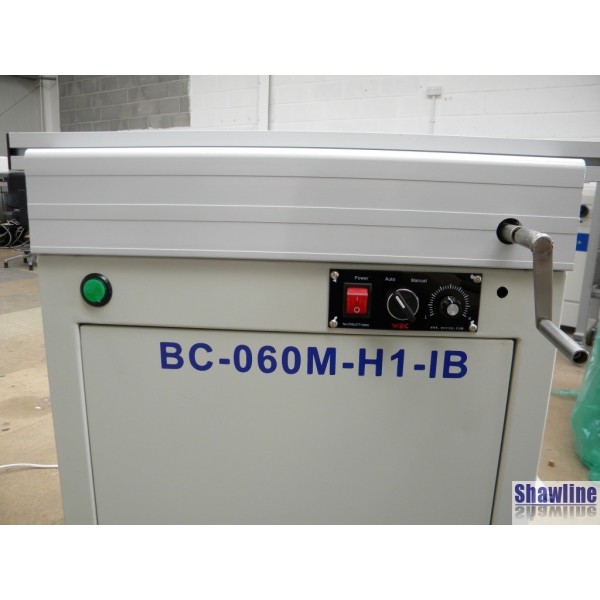

- Adjustable Speed Control
- KEWEI PLC (optional Omron PLC with Ethernet connectivity)
- CX-422 Panasonic sensor control (2 sensors fitted)
- CE compliance
- 2 year parts warranty
- SMEMA Compatible with upline/downline cables supplied
|
Manufacturer: |
Chinese Manufacture - made to order |
|
UK support from: |
Shawline www.shawline.co.uk |
|
Model: |
(a) 060BXW1 & (b) 060BXXW1-550 |
|
Description: |
0.6m Link & 0.6m Link 'XL' conveyor |
| Board transfer height: |
950 +/- 30mm |
| Board length: |
(a) 50 - 500mm (b) 50 - 580mm |
| Board width: |
(a) 50 - 460 mm (b) 50 - 550mm |
|
Board thickness: |
0.4 - 2.5 mm |
|
Belt width: |
4.8mm ESD flat section |
| Board edge clearance: |
3 mm |
|
Transfer Speed Range: |
1-12 m/min adjustable |
|
Power Supply: |
230v single phase 100VA max. |
|
Approx. Dims (L x D x H): |
(a) 0.60 x 0.78 x 0.90m (b) 0.60 x 0.85 x 0.90m |
|
Approx. Weight: |
(a) 44 kgs dry weight (b) 53 kgs dry weight |
|
Shipping Size (L*D*H): |
(a) 0.85 x 0.95 x 1.10m (b) 0.85 x 1.00 x 1.10m |
|
Shipping Weight: |
(a) 80 kgs (b) 90 kgs |
|
Availability: |
2/4 weeks build + 6 weeks shipping DDP UK mainland |
