JUKI 'Green' Style 5xx Series Nozzles
NEW, JUKI '5xx' Series Nozzles for 2000 series plus FX-1 and FX-3 series Assemblers
Categories
All our nozzles are pre-inspected by Shawline UK prior to delivery and come with a 6 months replacement warranty (excepting damage by machine failure and mis-use).
Please note: our minimum order charge is GBP £100.00
|
Model |
Part No |
Recommended Application |
Tip Type |
Outer Tip Size (mm)* |
|

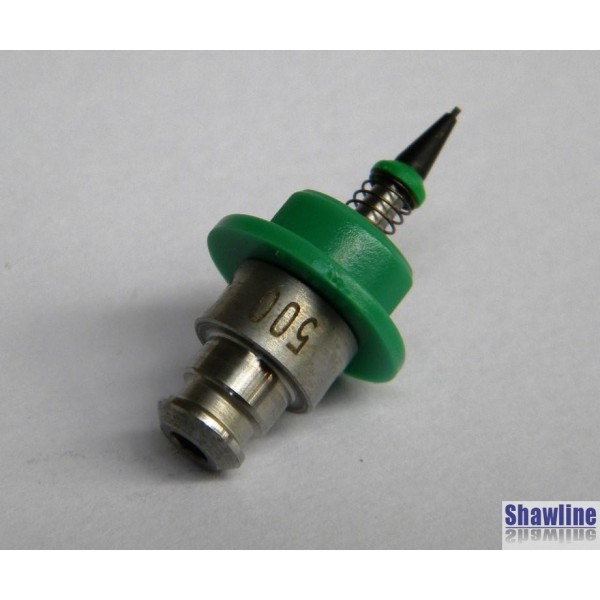

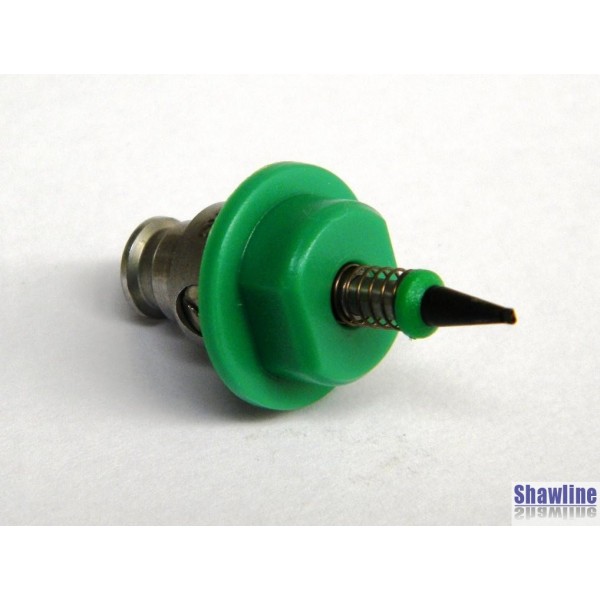

500 |
40011046 | 0402 & 0603 | BUFFER | 1.00*0.50 |
| 501 | 40001339 |
0201 |
BUFFER | 0.70*0.40 |
|
502 |
40001340 | 0402 | BUFFER | 0.70 dia |
|
503 |
40001341 | 0805, SOT, SOD, TANT A | BUFFER | 1.00 dia |
|
504 |
40001342 | 1206, SOT, TANT B | BUFFER | 1.50 dia |
|
505 |
40001343 | 1210 - 2512, TANT C | BUFFER rubber tipped | 3.50 dia |
|
506 |
40001344 | Med.Electrolytics/TANT/SOP/SOJ | BUFFER rubber tipped | 5.00 dia |
|
507 |
40001345 | Large Electrolytics/wide SOP/TSOP | BUFFER rubber tipped | 8.50 dia |
|
508 |
40001346 | PLCC/QFP/BGA/Connector/Sockts | BUFFER rubber tipped | 9.50 dia |
|
510 |
E36157290A0 | Mini Melf | BUFFER mini melf | 1.50 dia |
|
511 |
E36167290A0 | Melf | BUFFER mini melf | 2.00 dia |
*All nozzles are 100% inspected for OUTER TIP SIZE to be within dimensional limits, before being offered for resale.
