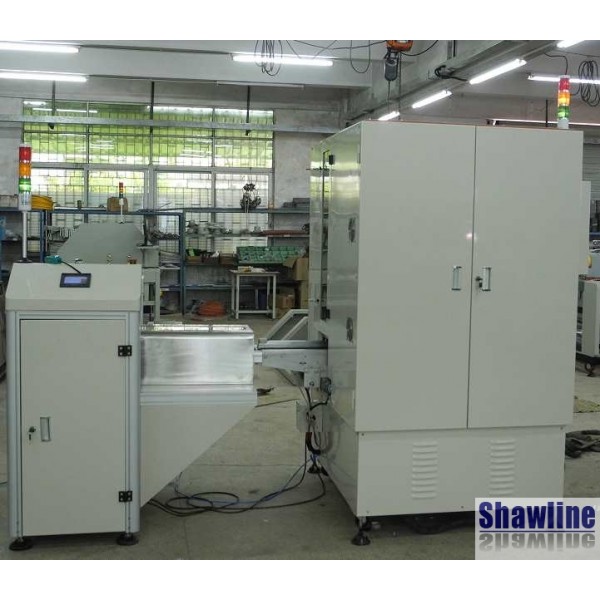

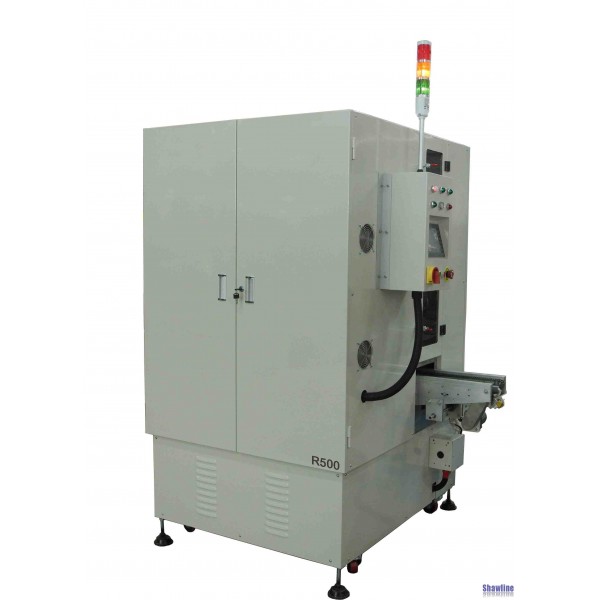

R500 Vertical Curing Oven
NEW, Forced Convection Vertical Curing Oven
Categories

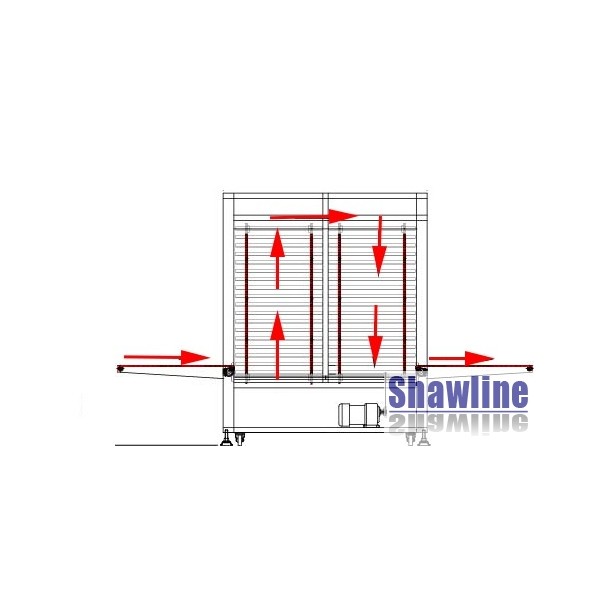

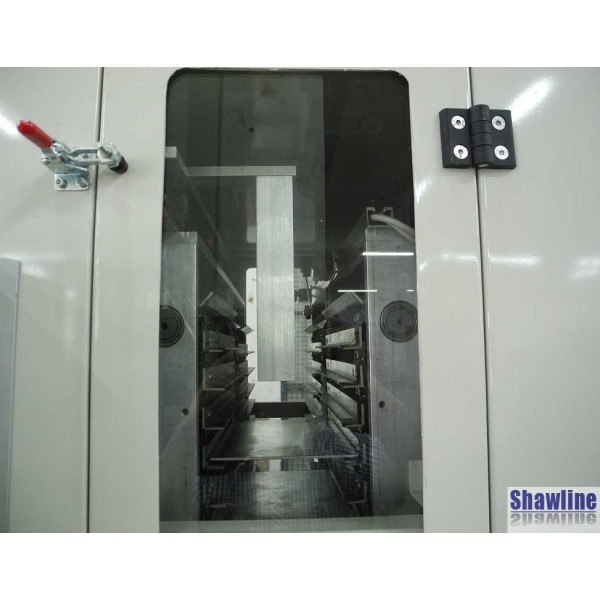

- Elevators configured to customer requirements
- Can accomodate bare substrates or carriers (jigs)
- Eliminates batch processing
- Constantly in profile (batch processes suffer door recovery/heat up times)
- Minimal footprint (2.5m nominal line length inc. input/output conveyors)

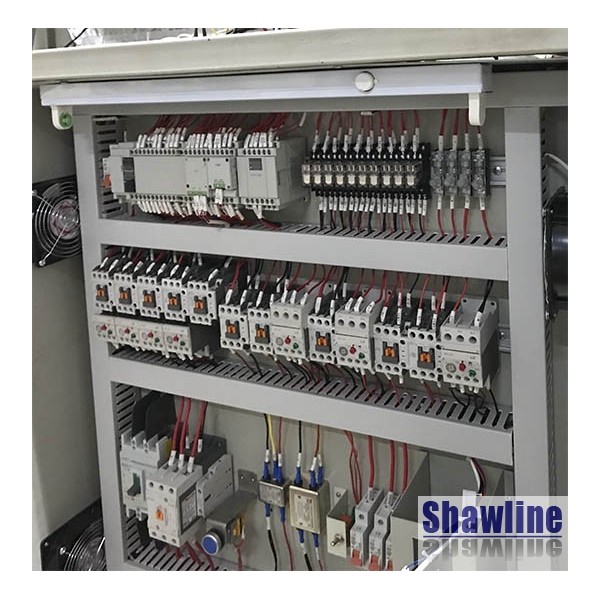

- Robust touch screen + PLC + SSR control

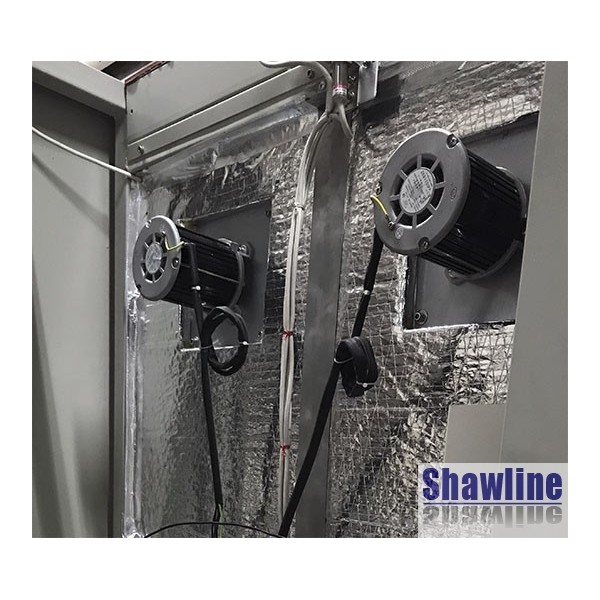

- 12 months ALL Parts + 36 months heaters & blowers Warranty
|
Manufacturer: |
WKK Gold, Dongguan, China |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Model: |
R-500 |
|
Cure Time Range: |
30 − 900 mins (may be customised) |
|
Active Temperature Range: |
Ambient to 130°C (optional 150°C factory upgrade) |
|
Temp Control Method: |
Closed loop PID + SSR |
|
Temp Control Accuracy: |
±2°C |
|
Temp Gradient: |
=<15°C Top to Bottom |
|

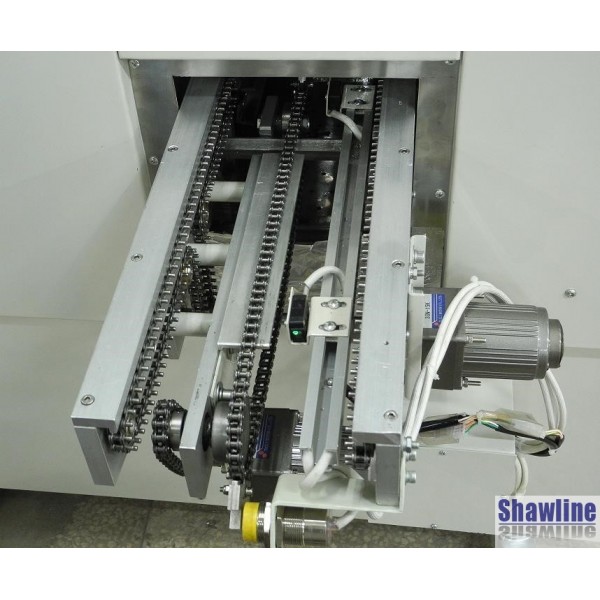

Conveyor Type: |
Edge pin with motorised width adjust (plus manual overide) |
|
Conveyor Speed: |
30 to 200cm per min (L to R standard - R to L optional) |
|
Conveyor Width Range: |
100 to 250mm (optional fixed width) |
|
Process Clearance: |
21mm above pins + 21mm below pins (may be customised) |
|
Min substrate size: |
100(W) x 150(L)mm |
|
Max substrate size: |
250(W) x 400(L)mm |
|
Max substrate weight: |
2.5 kgs (heavy duty motor options up to 8.5 kgs) |
|
Max. Substrate Capacity: |
Up to 25+25 (50) based on 38.1mm shelf pitch |
|
Conveyor Transfer Height: |
750 ±20mm standard (optional SMEMA 900 or 950mm) |
|
Power Supply (UK/EU): |
415v 3 phase 50/60 Hz, 55A max, 20kW |
|
Power Supply (USA): |
220v 3 phase 50/60 Hz, 92A max, 38kW |
|
Extraction Requirement: |
2 x 98mm Ø lip vent @ 100 CFM ea (200 CFM total) |
|
Approx. Dims (L x D x H): |
2.47 x 1.55 x 2.15m (WxDxH) excl. light tower |
|
Approx. Weight: |
NET 1060 kgs, SHIPPING 1320 kgs |
|
Availability: |
4/6 weeks build time + 4/6 weeks seafreight |
