Manual Insertion Line
NEW, Manual Insertion Line, made-to-order
Categories
- Heavy duty aluminium extrusion construction
- Suitable for PCB's or pallets
- Motor driven conveyor with Keyence sensor control
- Adjustable conveyor speed
- Manual width adjust with stainless steel lead screw drives

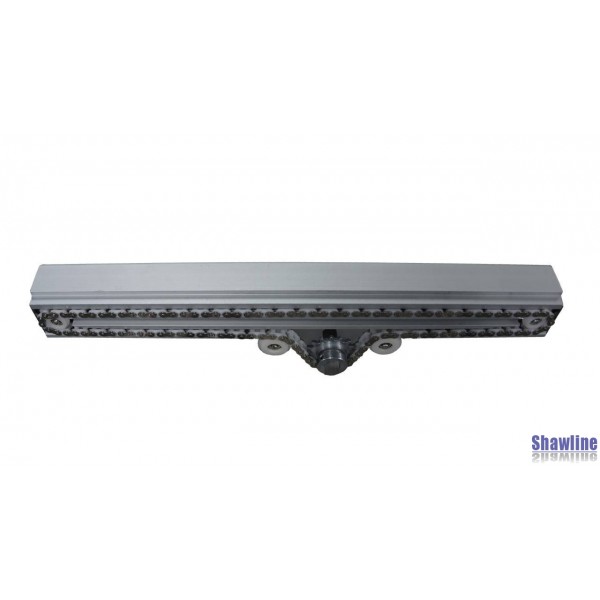

- Rugged FR35 plastic link conveyor
- Ergonomic arm rest
- A4 Eye level document holders
- Overhead lighting in 30w segments
- Auxillary power sockets
- CE marked
|
Manufacturer: |
GCR Production Equipment, Shenzhen |
|
UK Support From: |
Shawline Asset Management www.shawline.co.uk |
|
Model: |
MI240-L 2.4m Manual Insertion Line MI300-L 3.0m Manual Insertion Line MI450-L 4.5m Manual Insertion Line MI500-L 5.0m Manual Insertion Line |
|
Conveyor Transfer Height: |
900mm +50/-20mm |
|
Min/Max Workpiece Width: |
50 - 400mm (manual width adjust) |
|
Max Conveyor Loading: |
15 kgs |
|
Conveyor Speed Range: |
Adjustable 1 to 12 m/min (range configurable) |
|
Conveyor Flow Direction: |
L to R (optional R to L) Fixed front rail (optional fixed rear) |
|
Underside Clearance: |
30mm (configurable) |
|
Power Supply: |
220v 50/60 Hz 1PH |
|
Air Supply: |
Not required |
|
Approx. Dims (L x D x H): |
MI240-L 2.40 x 0.65 x 1.80m MI300-L 3.00 x 0.65 x 1.80m MI450-L 4.50 x 0.65 x 1.80m MI500-L 5.00 x 0.65 x 1.80m |
|
Shipping Dims (L x D x H): |
MI240-L 2.55 x 0.80 x 1.10m MI300-L 3.15 x 0.80 x 1.10m MI450-L 4.65 x 0.80 x 1.10m MI500-L 5.15 x 0.80 x 1.10m |
|
Availability: |
3/4 weeks build + 4/6 weeks ship (excluding Chinese holidays) |
