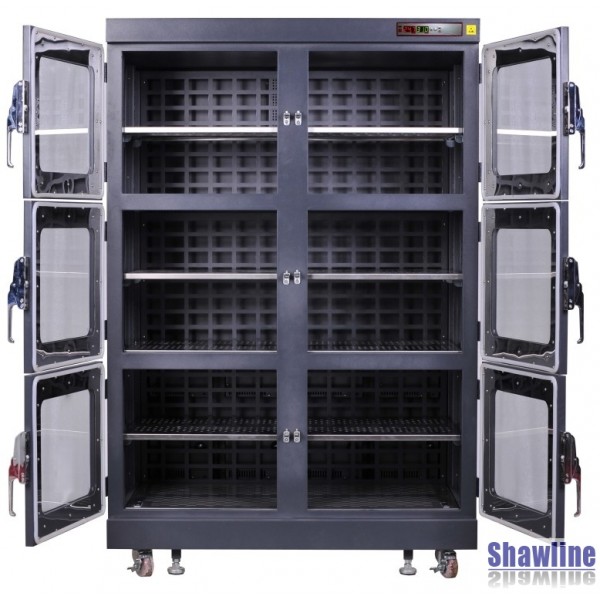

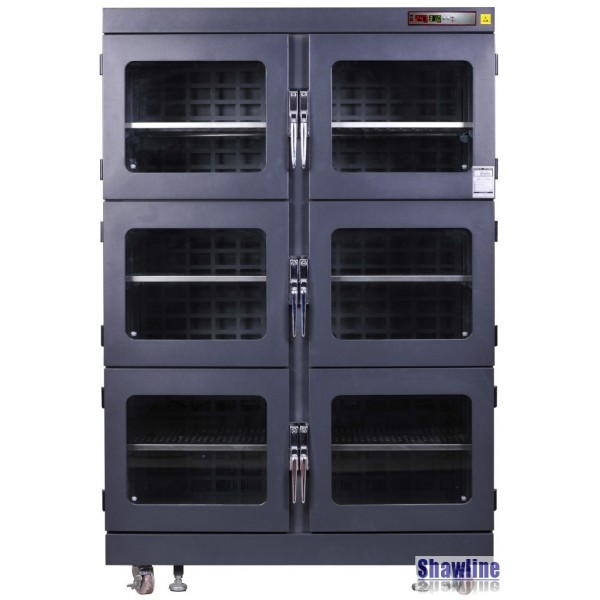

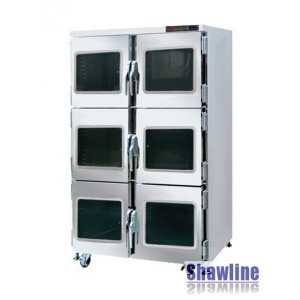

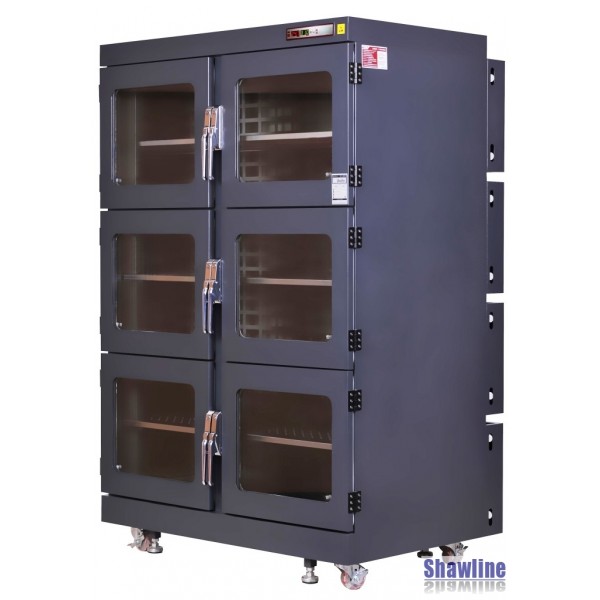

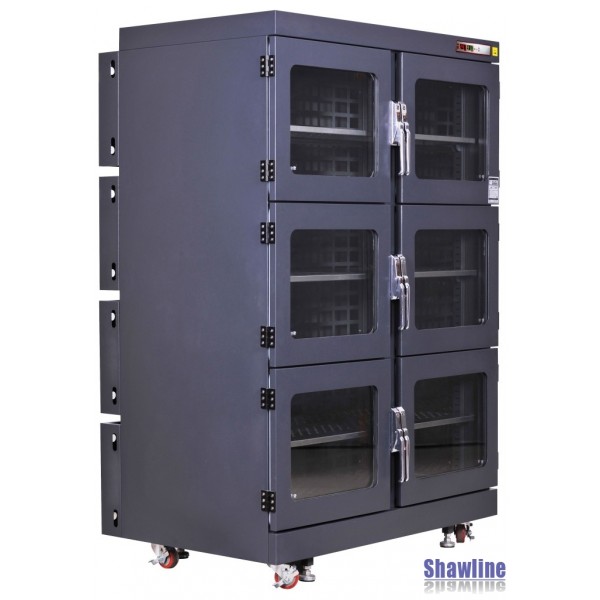

Q-1490 NITROGEN BAKING DRY CABINET
NEW, Q-1490 Baking dry cabinet with intelligent Nitrogen control
Categories
- Combined BAKING and low RH STORAGE
- Intelligent Nitrogen management via on board QDN unit
- Nitrogen is introduced automatically when turbo dryers are activated
- Nitrogen is shut off when preset levels of RH stabilise

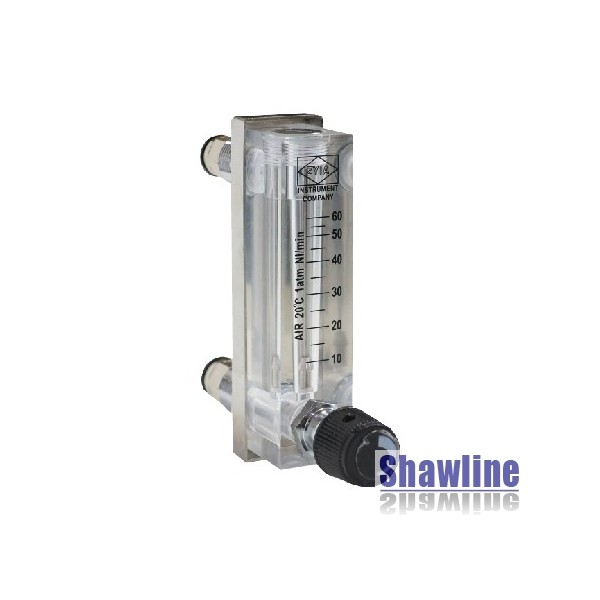

- Built in flowmeter further enhances Nitrogen economy

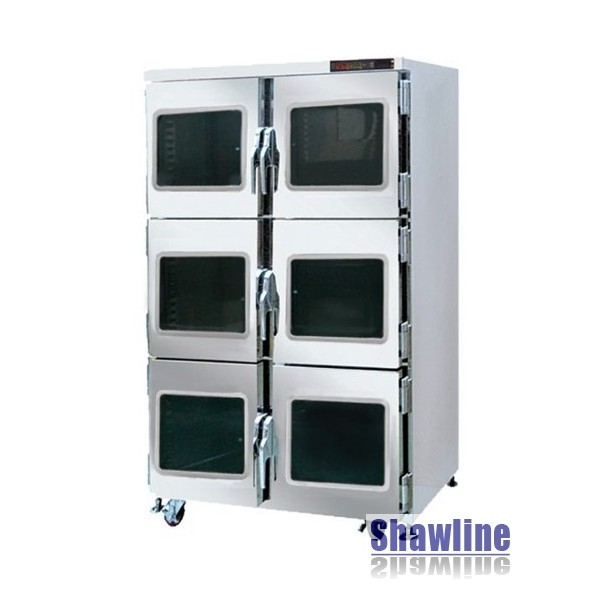

- Choice of ESD painted hi-carbon steel or brushed stainless steel construction
- Compression handles and gas tight magnetic sealers
- 940mm 1MΩ Grounding Wire
- Desiccant automatically regenerates (user to manually top-up dessicant levels)
- Anti-static castors (2) w/ brake (2) unbraked
- Meets or exceeds J-STD-033B standards for component floor-life restoration and storage
|
Manufacturer: |
Manufactured in China |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Model: |
Q-1490-220 |
|
Date of Manufacture: |
New - made to order |
|
Description: |
Baking Dry Cabinet with Intelligent Nitrogen Control |
|
Max. Baking Temp: |
40oC ± 2oC ≤ 5% RH |
|
Post Bake Storage: |
≤ 5% RH (based on ambient 25oC, 50% RH) |
|
Recovery Time: |
≤ 5% RH within 30 mins (based on 30 secs door open/close) |
|
Internal Dimensions: |
1198*645*1618mm (L*W*H) |
|
Available Volume: |
1250L |
|
No Shelves/Shelf Size: |
(5) adjustable / 1155*530*20mm (W x D x H) |
|
Shelf Loading Capacity: |
45 kgs ea |
|

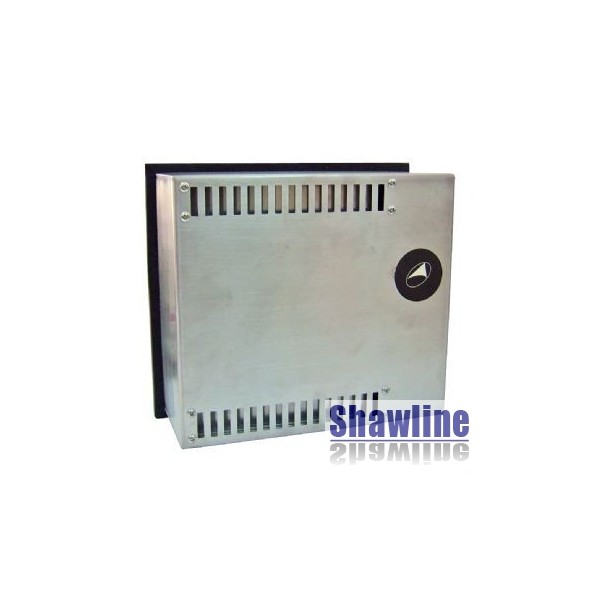

No. Turbo Dryer Modules: |
4 |
|
No. Heater Modules: |
4 |
|
External Dimensions: |
1200*840*1820mm (L*W*H) |
|
Power Supply: |
220vAC Single phase 13A, max 48.6Wh, max 145W |
|
Shipping Size (L*D*H): |
1380*855*2015mm skid crated with vac. pack |
|
Shipping Weight: |
340 kgs |
|
Availability: |
6/8 build + 4/6 weeks seafreight |
