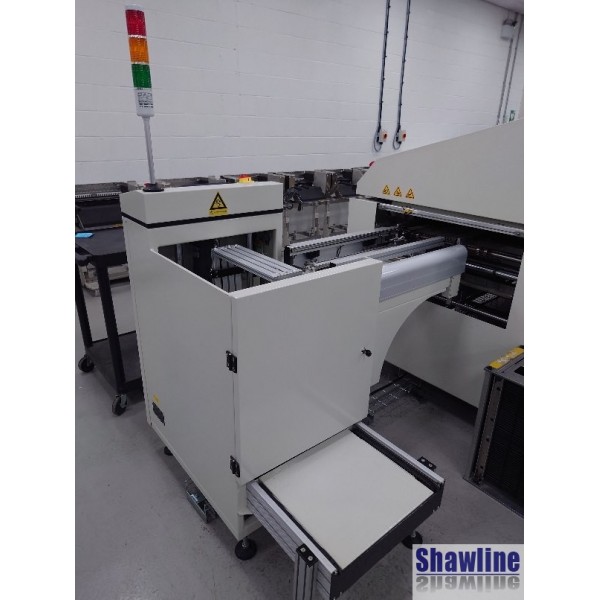

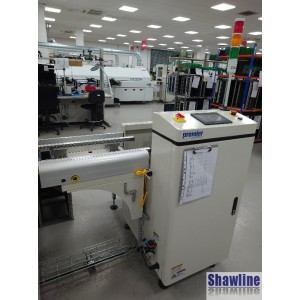

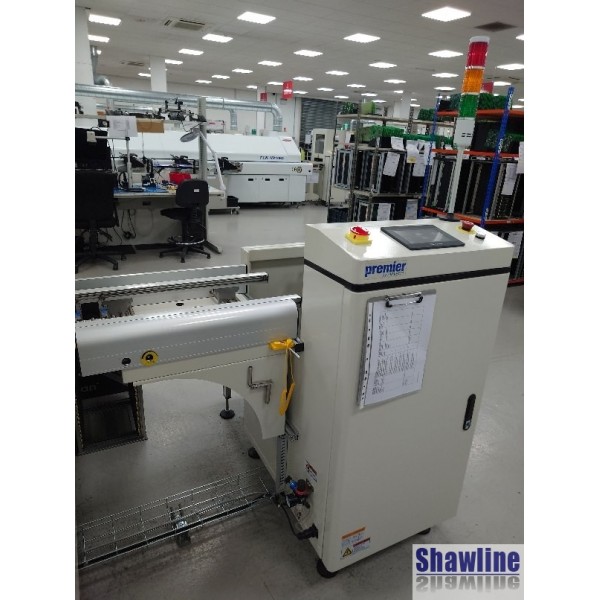

Single Mag Line Unloader 'M' Size
PRE OWNED, Single Mag Line Unloader (2011)
Categories
- Magazine ito the rear of the line
- SMC pneumatic pusher cylinder, pressure regulated
- Omron PLC
- Auto/Manual run modes
- LCD touch screen control
- 3-color light tower and audible alarm
- SMEMA compatible (upline cable supplied)
- Fully CE compliant & CE marked
|
Manufacturer: |
Manufactured in China |
|
UK support from: |
Shawline www.shawline.co.uk |
|
Model: |
UL330W-OT (same as our UL330S) |
|
Serial No: |
ULBT-110314 |
|
Date of Manufacture: |
Mar 2011 |
|
Description: |
Single Magazine Line Unloader |
| PCB transfer height: |
900 +/- 25 mm |
| PCB length: |
50 - 460 mm |
| PCB width: |
50 - 330 mm |
|
PCB thickness: |
0.4 - 2.5 mm |
|
Magazine size: |
Fixed 460 x 400 x 563 mm (L x W x H) see PCB-330C |
|
Pitch selection: |
10, 20, 30 or 40 mm |
|
Line feed direction: |
L to R standard |
|
Height clearance: |
Top:80mm, Bottom: 20mm |
|
Power Supply: |
230v single phase 50/60Hz 300 VA max. |
|
Air Supply: |
70-85 psi (5/6 BAR) 5-6 kg/cm2, 10 l/min (0.35 CFM) |
|
Approx. Dims (L x D x H): |
1.29 x 1.22 x 1.20 m (L x W x H) |
|
Approx. Weight: |
Net 210 KGS - Shipping 290 KGS |
|
Availability: |
EXW North East 1/2 weeks |
