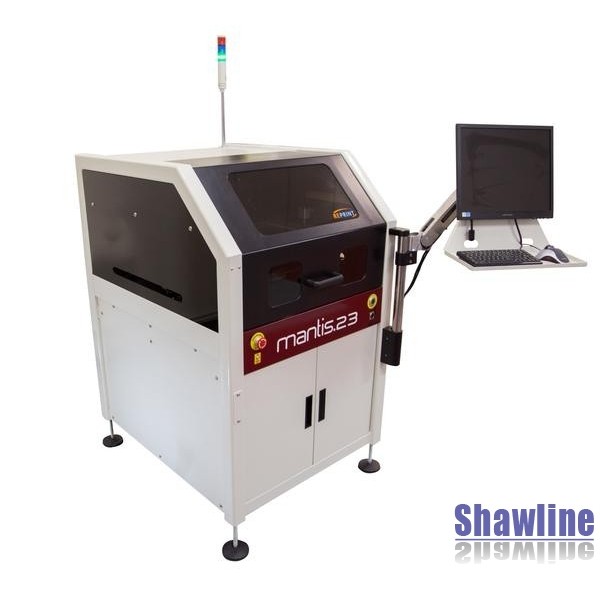

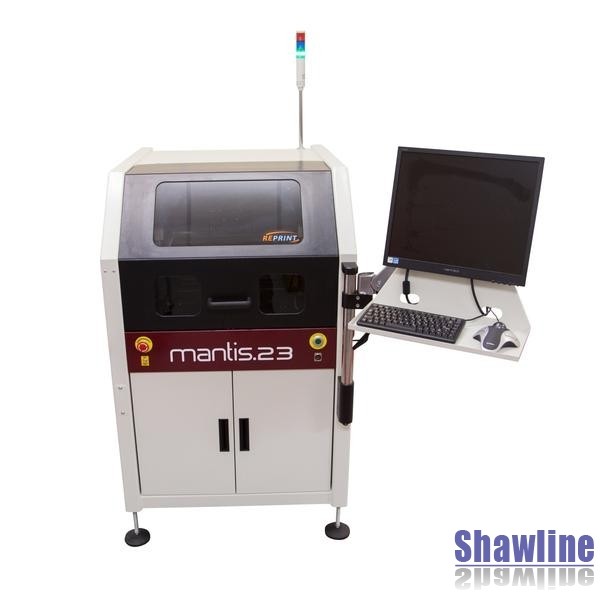

REPRINT Mantis 23 Fully Auto Stencil Printer
NEW, REPRINT Mantis 23 Fully Auto Stencil Printer
Categories
- 23" Compact fully auto in-line stencil printer
- Unique dual camera system with multi-coloured LED illumination
- Intuitive software with set-up wizards and fault diagnostics
- Camera assisted stencil positioning
- All moving axes powered by stepper motor control
- Optional solvent/dry/vac auto underside stencil cleaning
- Optional post print 2D inspection plus stencil blockage inspection
- Wide range of underboard tooling options available

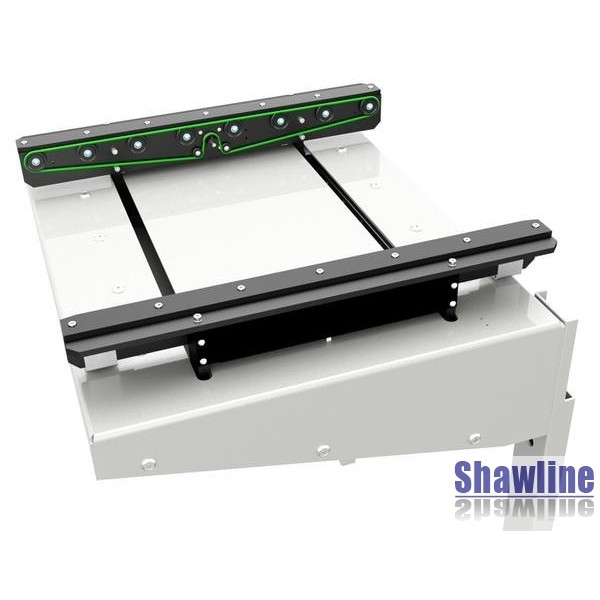

- SMEMA pass thru' or shuttling auto-width conveyor

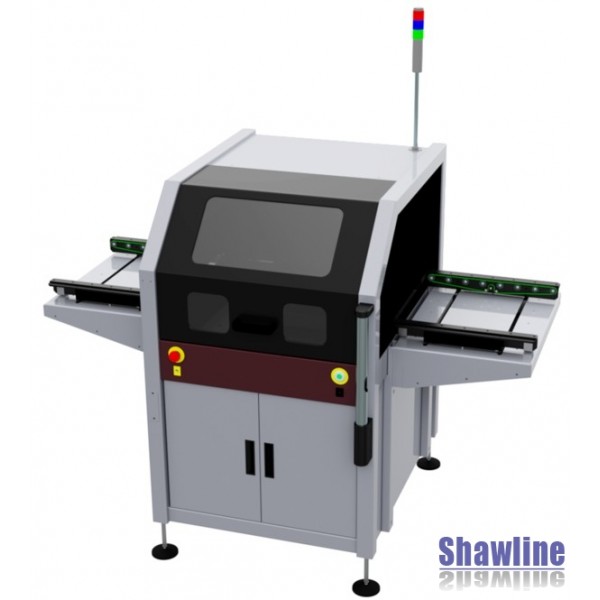

- Optional outrigger conveyors (auto width)
|
Manufacturer: |
Reprint Services Ltd, Dorchester, UK https://www.reprintinternational.com/ |
|
UK Support From: |
Reprint Services Ltd, Dorchester, UK https://www.reprintinternational.com/ |
|
Model: |
R23 Mantis |
|
Production Hours: |
Brand new, made to order |
|
Stencil Size: |
23” x 23” – 584 x 584 x 40mm with pneumatic clamping |
|
Image Justification: |
Front, with camera assisted stencil positioning |
|
Stencil Fiducials: |
Underside, also aligns on reference pads (teachable) |
|
Min. / Max. Board Size: |
50 x 50 x 0.2mm to 450 x 450 x 5.0mm |
|
Print Area: |
50mm x 50mm to 450mm x 450mm (borderless) |
|
Print Speed: |
5-200 mm/sec (1mm/sec increments) |
|
Print Pressure: |
0.1 to 20kg |
|
Snap-off Speed: |
0.1 to 10.0mm/sec |
|
Print Accuracy: |
±15 microns |
|
Print Repeatability: |
±10 microns |
|
Conveyor Feed: |
Pass thru' L to R or R to L, shuttling L to L or R to R |
|
Computer Platform: |
Windows 10™ |
|
Power Supply: |
Single Phase 110/230v 50/60Hz 5A (10A with vac stencil cleaner) |
|
Air Supply: |
4 – 6 BAR @ 0.3m3/min (8mm or 10mm O/D tube) |
|
Approx. Dims (L x D x H): |
0.85 x 1.03 x 1.43m (excl. light tower) |
|
Approx. Weight: |
250 kgs dry weight |
|
Colour: |
Cream/maroon |
|
Availability: |
6/8 weeks build to order |
