Manufacturer:

MYCRONIC AUTOMATION www.mycronic.com/smt

UK Support From:

MYCRONIC AUTOMATION LTD UK, Poole BH12 4QT

Model:

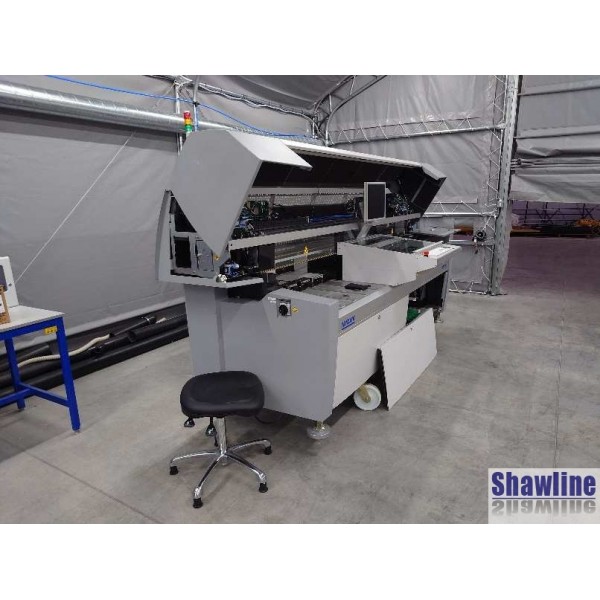

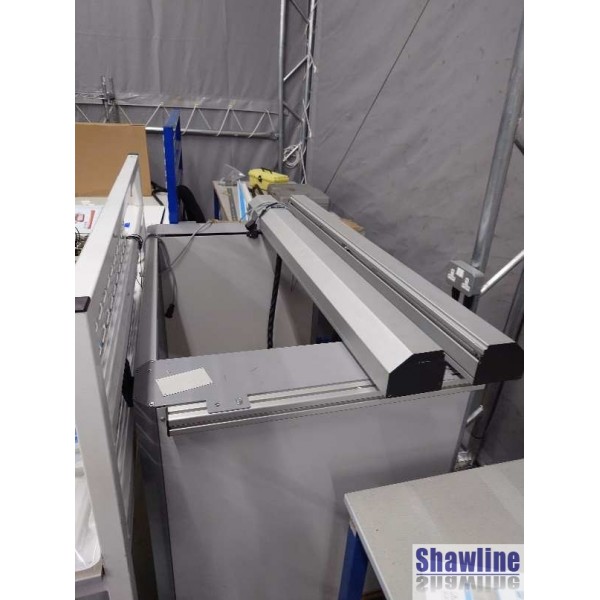

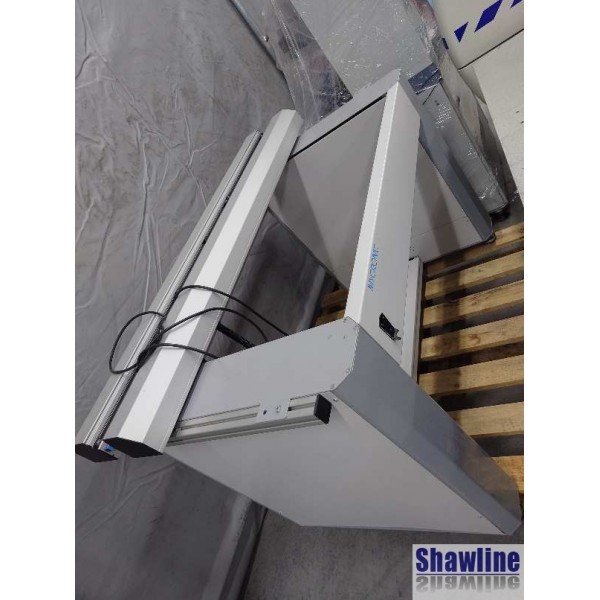

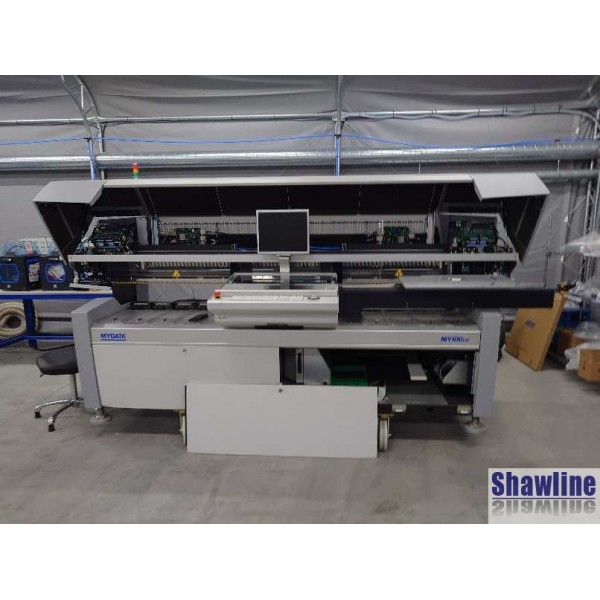

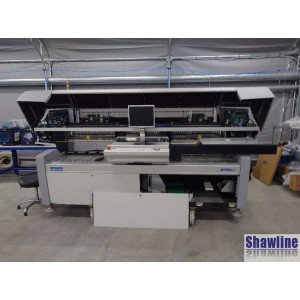

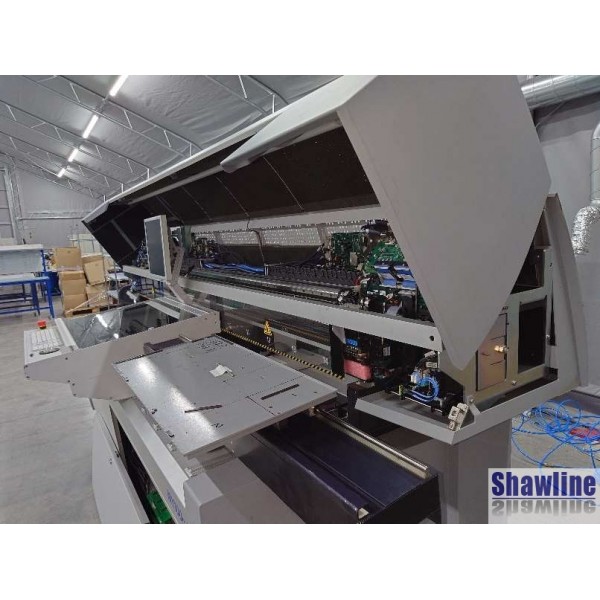

MY100-14 TWIN HYDRA with conveyor

Serial No:

Date of Manufacture:

20/03/2008

Software:

TPSys v.4 (tbcf)

SMD Range:

0201 up to QFP’s and BGA’s (max. 56 x 56 x 15mm)

Placement Speed:

CHIP - IPC 27,500 cph, Fine Pitch - IPC 4,400 cph

Placement Repeatability:

Fine Pitch - 21µm X-Y, 0.09^{oθ @ 3σ}

Max. Component Weight:

Min. / Max. Board Size:

70 x 50 x 0.4mm to 575 x 508 x 6.0mm

Power Supply:

415v±10% three phase, 3 x 2.2 kVA, 2.5kW average usage

Air Supply:

Not required (on board vac generator)

Dims (L x D x H):

3.41 x 2.29 x 1.45 height excl. monitor and light tower

Approx. Weight:

1700 kgs (without feeders)

Availability:

EXW Hants
