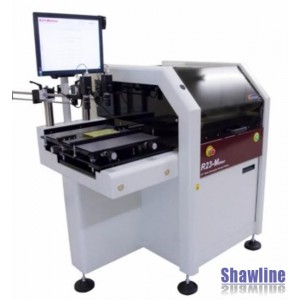

REPRINT Meteor Semi Auto Stencil Printer

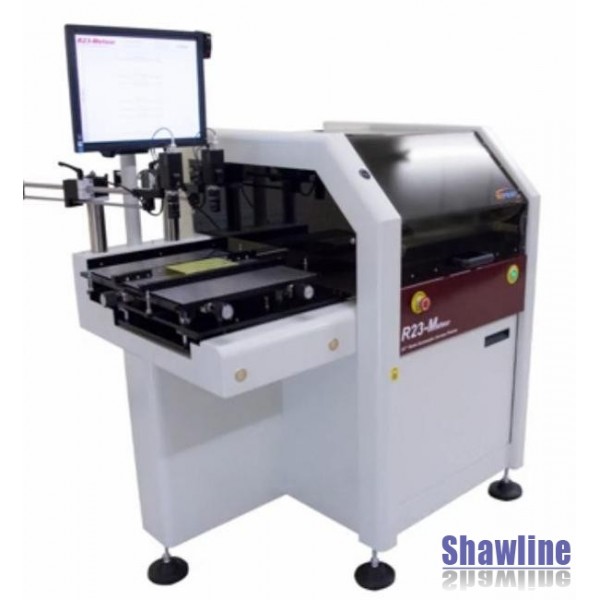

NEW, REPRINT Meteor R23 Semi Auto Stencil Printer
Categories
- 23" Compact semi-auto stencil printer with vision
- Twin cameras for GO/NO GO operator alignment check
- Mylar set-up alignment aid
- All servo motor controlled
- Tooling rails and 20mm tooling posts (10 pcs)
- Choice of squeegee lengths (150 - 460mm)
- One pr squeegees included (any size)

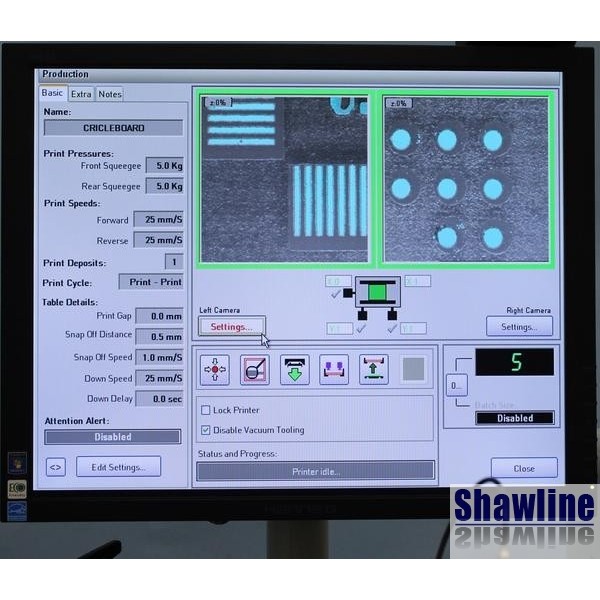

- Windows 7 PC and 17" LCD TFT flat screen monitor
- Optional vac. tooling
- Optional frame adaptor to accommodate smaller stencils
- Optional advanced self levelling frame adaptor
|
Manufacturer: |
Reprint Services Ltd, Dorchester, UK https://www.reprintinternational.com/ |
|
UK Support From: |
Reprint Services Ltd, Dorchester, UK https://www.reprintinternational.com/ |
|
Model: |
R23 Meteor |
|
Production Hours: |
Brand new, made to order |
|
Description: |
Semi-automatic stencil printer with vision |
|
Stencil Size: |
23” x 23” – 585 x 585 x 40mm std. with pneumatic clamping |
|
Image Justification: |
Centre |
|
Stencil Fiducials: |
Topside, also aligns on reference pads (teachable) |
|
Min. / Max. Board Size: |
50mm x 25mm to 400 x 460mm |
|
Print Area: |
50mm x 25mm to 400 x 460mm (borderless) |
|
Print Speed: |
5-200 mm/sec (1mm/sec increments) |
|
Conveyor Feed: |
Non pass thru' shuttling L to L, manual load/unload |
|
Computer Platform: |
Windows™ tba with easy intuitive software |
|
Power Supply: |
240v single phase 50/60 Hz Current: 3A |
|
Air Supply: |
2-6 BAR 30-80 psi clean and dry |
|
Dims (W x D x H): |
1.31 x 1.22 x 1.35m (approx.) |
|
Weight: |
300 kgs net (approx.) |
|
Colour: |
Cream/Maroon |
|
Availability: |
6/8 weeks built to order |
