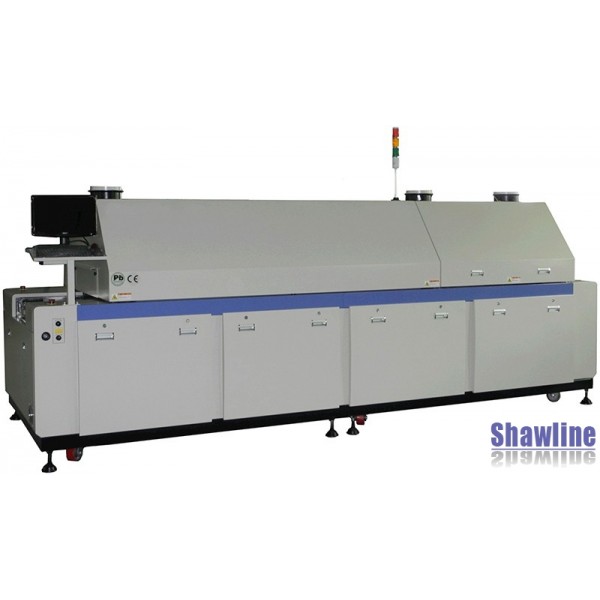

Low Energy 6 Zone Reflow Oven
NEW, 6 zone Low Energy Convection Reflow Oven
Categories
- 25KW FAST ≤15 min START-UP
- 8 -14KW RUNNING
- HEAT RECYCLING
- 12 Independently PID controlled top and bottom heaters
- ± 1 deg. C temperature stability
- ± 2 deg. C Delta-T process stability across process width
- Air injection technology (offsets harsh ramp washover)
- Upper/lower process temp alarms (per zone)

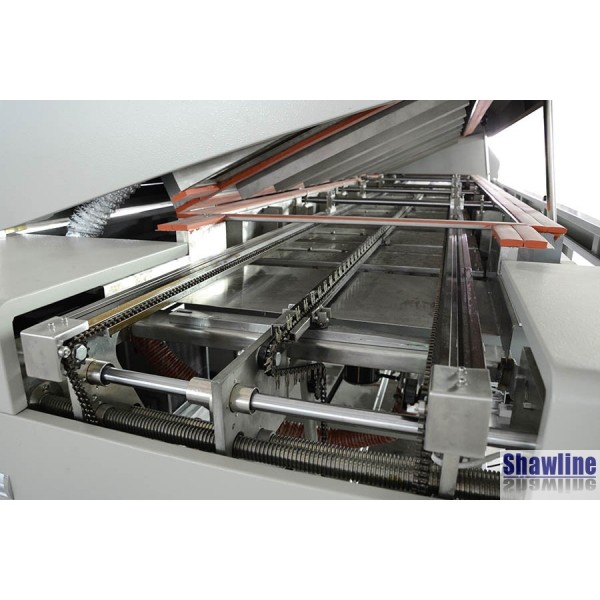

- Combination edge pin and mesh belt board transport system
- Optional internal chiller
- Windows 8© operating system
- 12 months ALL Parts + 36 months heaters & blowers Warranty
- Full installation and training available
|
Manufacturer: |
CRE Manufacturing Equipment |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Model: |
CR-6000 |
|
No of Heated Zones: |
6 vertical, with 12 independently controllable heaters |
|
Total Heated Length: |
270cm |
|
Active Temperature Range: |
50°C to 350°C |
|
Heat Up Time: |
Ambient to 300°C in 25 mins (with full power start) |
|
Cooling: |
2 zones, ambient fans with optional self contained chiller |
|

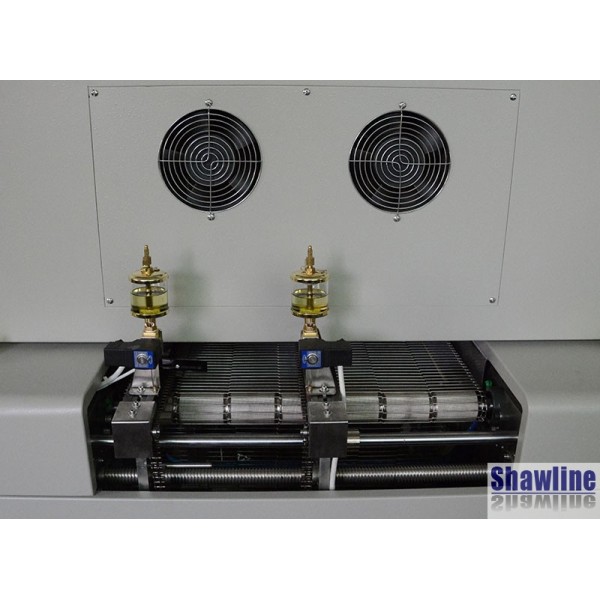

Conveyor Type: |
Combi mesh and edge pin with motor width adjust |
|
Conveyor Speed: |
40 to 180cm per min (L to R standard - R to L optional) |
|
Conveyor Width: |
Edge pin 50 to 450mm, mesh only 570mm, combi 480mm |
|
Conveyor Height: |
900 ±20mm standard (950 ±20mm optional) |
|
PCB Clearance (Edge Pin): |
Topside: 30mm, Underside: 25mm |
|
Power Supply: |
415 v 3 phase 50/60 Hz 75A max draw Current: 48 KW start-up, 7.5-10.5 KW running |
|
Air Supply: |
0.4/0.6 MPa, 6mmØ bore - 10mmØ OD, 0.5 - 3.5 CFM |
|
Exhaust: |
3 x 200mm Ø lip vents @ 400 CFM ea (1200 CFM Total) |
|
Approx. Dims (L x D x H): |
4.15 x 1.51 x 1.55m (WxDxH) excl. light tower |
|
Approx. Weight: |
NET 1680 kgs, SHIPPING 1880 kgs |
|
Availability: |
4 weeks build time + 4 weeks seafreight |
