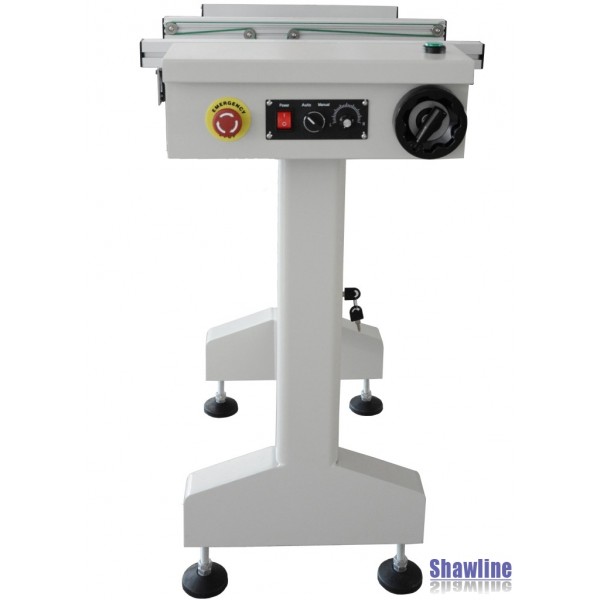

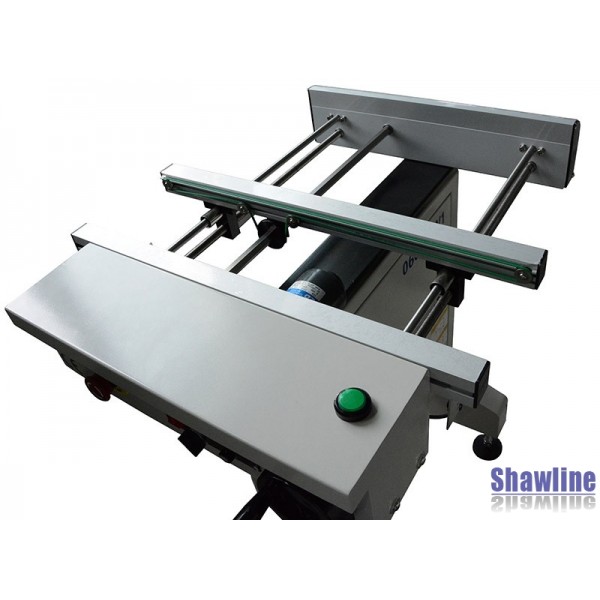

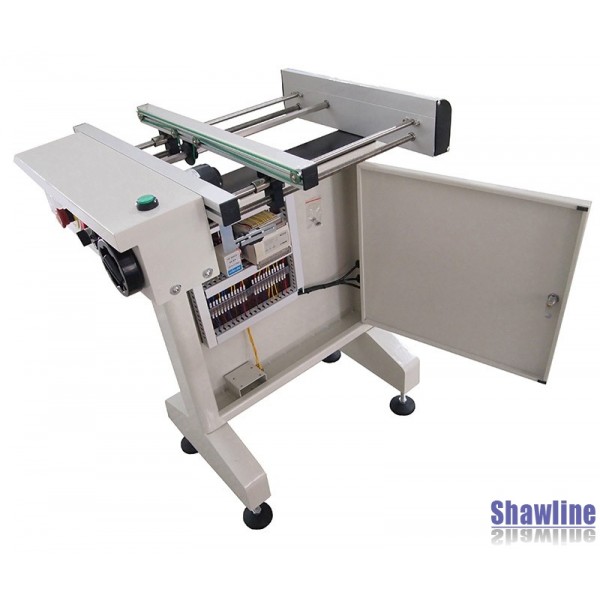

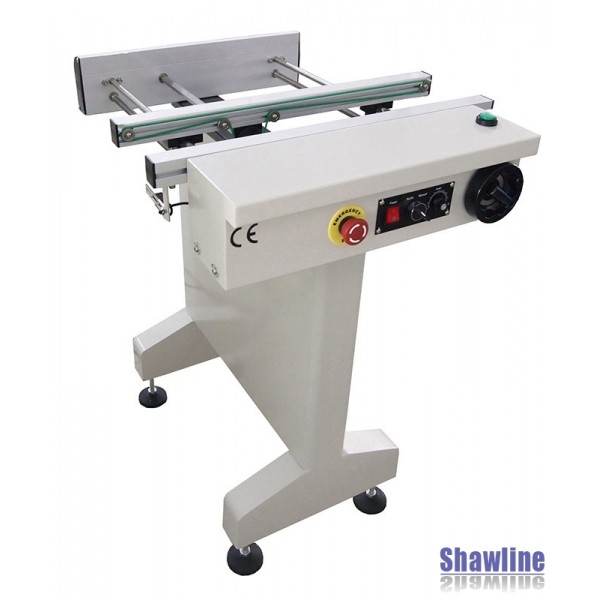

0.5m Link-Inspection Conveyor
NEW, 0.5m Link-Inspection Conveyor
Categories
- All metal solid design link conveyor
- Front fixed rail
- Stainless steel lead screw rear rail manual width adjustment
- L to R running (optional R to L)
- Adjustable Speed Control
- KEWEI PLC (optional Omron PLC with Ethernet connectivity)
- Keyence Japan sensor control (2 sensors fitted)
- CE compliance
- 2 year parts warranty
- SMEMA Compatible with upline/downline cables supplied
|
Manufacturer: |
Manufactured in China |
|
UK support from: |
Shawline www.shawline.co.uk |
|
Model: |
050BXW1 |
|
Description: |
0.5m Link conveyor |
| PCB transfer height: |
950 +/- 30 mm |
| PCB length: |
50 - 450 mm |
| PCB width: |
50 - 460 mm |
|
PCB thickness: |
0.4 - 2.5 mm |
|
Belt width: |
4.8mm ESD flat belt |
|
PCB edge clearance: |
3 mm |
|
Transfer Speed Range: |
1-12 m/min adjustable |
|
Power Supply: |
230v single phase 100VA max. |
|
Approx. Dims (L x D x H): |
0.50 x 0.78 x 0.90m |
|
Approx. Weight: |
54 kgs dry weight |
|
Shipping Size (L*D*H): |
0.65 x 0.95 x 1.13m |
|
Shipping Weight: |
83 kgs |
|
Availability: |
4 weeks build + 6 weeks shipping DDP UK mainland |
