1.2m Inspection/Link Conveyor
NEW, 1.2m Interface Conveyor
Categories
- All metal solid design inspection conveyor
- Front fixed rail
- Stainless steel lead screw rear rail manual width adjustment
- Inspection and bypass mode selectable
- Left to Right running
- Adjustable Speed Control

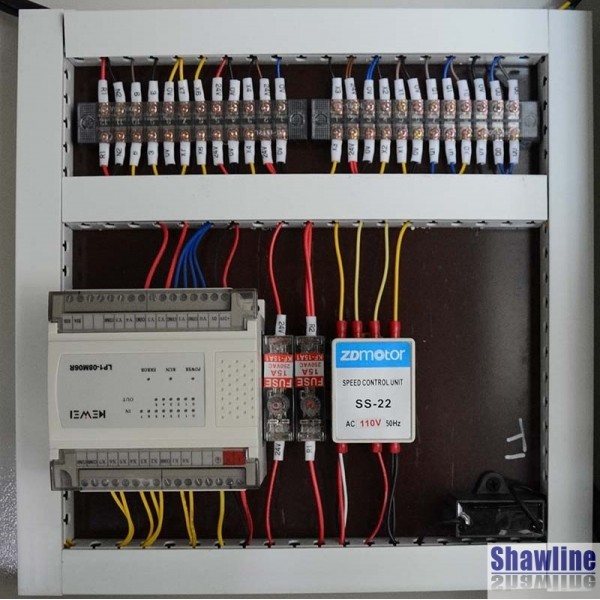

- KEWEI PLC (optional Omron PLC with Ethernet connectivity)
- Keyence Japan sensor control
- CE compliance
- 2 year parts warranty
- SMEMA Compatible with upline/downline cables supplied
|
Manufacturer: |
Manufactured in China |
|
UK support from: |
Shawline www.shawline.co.uk |
|
Model: |
120BXW1 |
|
Description: |
Interface link conveyor with inspection interrupt |
| Board transfer height: |
950 +/- 30 mm |
| Board length: |
50 - 950 mm |
| Board width: |
50 - 460 mm |
|
Board thickness: |
0.4 - 2.5 mm |
|
Belt width: |
4.8mm ESD flat section |
| Board edge clearance: |
3 mm |
|
Transfer Speed Range: |
1-12 m/min adjustable |
|
Power Supply: |
230v single phase 100VA max. |
|
Air Supply: |
N/A |
|
Approx. Dims (L x D x H): |
1.20 x 0.78 x 0.90m (shipping crate: 1.36 x 0.91 x 1.13m) |
|
Approx. Weight: |
98 kgs dry weight, 135 kgs shipping weight |
|
Availability: |
4 weeks build + 4/6 weeks shipping DDP UK mainland |
