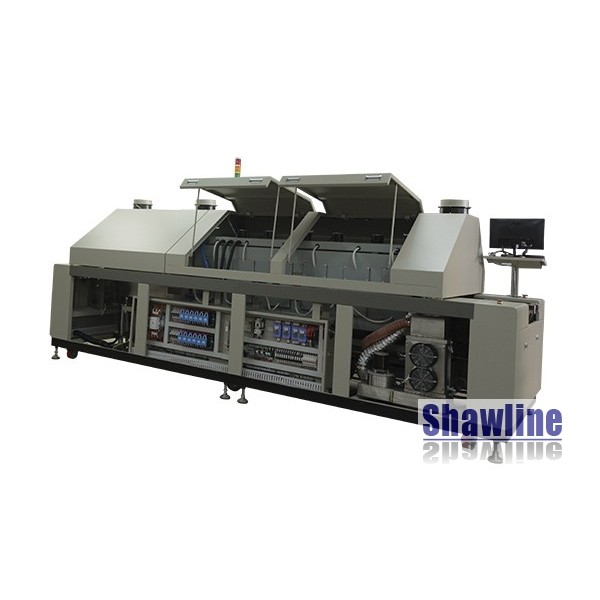

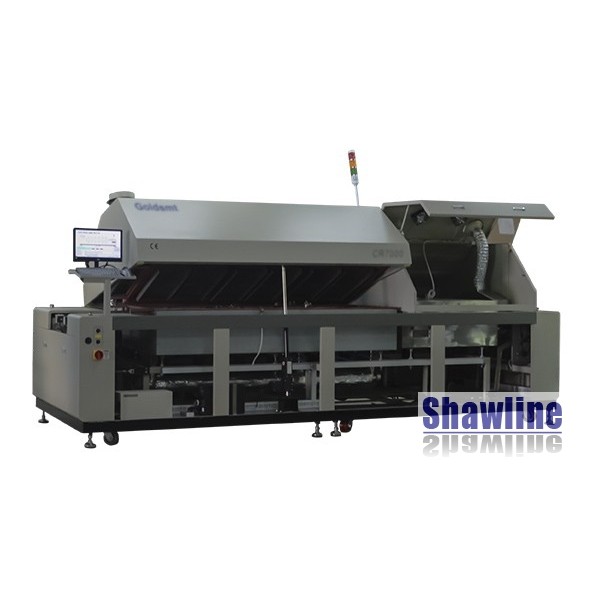

Low Energy 7 Zone Reflow Oven
NEW, 7 zone Low Energy Convection Reflow Oven
Categories
- 32KW FAST START-UP ≤ 15 mins to 300°C
- 8 -11.5KW RUNNING
- RoHS Capable
- Fully CE Compliant
- 14 Independently PID controlled top and bottom heating
- ± 1 deg. C temperature stability
- ± 2 deg. C Delta-T process stability across process width
- Air injection technology (offsets harsh ramp zone washover)
- Upper/lower process temp alarms (per zone)
- Combination edge pin and mesh belt board transport system
- Optional EXTERNAL chiller
- Optional N² atmoshpere

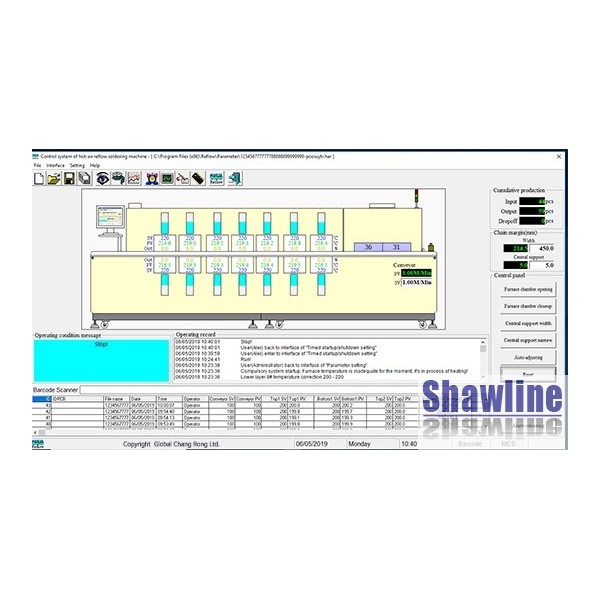

- Windows 10© operating system
- 12 months ALL Parts + 36 months heaters & blowers Warranty
- Full installation and training available
|
Manufacturer: |
CRE Equipment Manufacturing, China |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Model: |

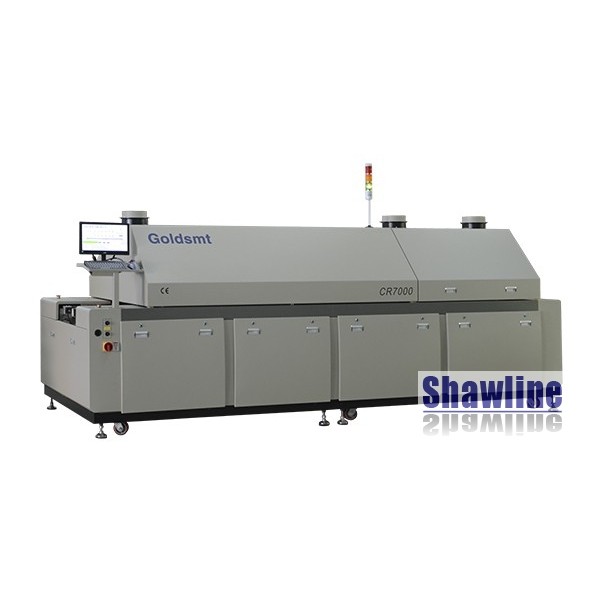

CR-7000 |
|
No of Heated Zones: |
7 vertical, with 14 independently controllable heaters |
|
Total Heated Length: |
205cm |
|
Active Temperature Range: |
50°C to 350°C |
|
Heat Up Time: |
Ambient to 300°C in 25 mins (with full power start) |
|
Cooling: |
2 zones, ambient fans with optional external chiller unit |
|
Conveyor Type: |
Combi mesh and edge pin with motor width adjust |
|
Conveyor Speed: |
40 to 180cm per min (L to R standard - R to L optional) |
|
Conveyor Width: |
Edge pin 50 to 450mm, mesh only 570mm, combi 480mm |
|
Conveyor Height: |
900 ±20mm standard (950 ±20mm optional) |
|
PCB Clearance (Edge Pin): |
Topside: 30mm, Underside: 25mm |
|
Power Supply: |
415 v 3 phase 50/60 Hz 95A max draw Current: 52 KW start-up, 8-11.5 KW running |
|
Air Supply: |
0.4/0.6 MPa, 6mmØ bore - 10mmØ OD, 0.8 - 4.0 CFM |
|
Exhaust: |
3 x 200mm Ø lip vents @ 400 CFM ea (1200 CFM Total) |
|
Approx. Dims (L x D x H): |
4.15 x 1.51 x 1.55m (WxDxH) excl. light tower |
|
Approx. Weight: |
NET 1810 kgs, SHIPPING 1900 kgs |
|
Availability: |
4/6 weeks build time + 6 weeks seafreight |
