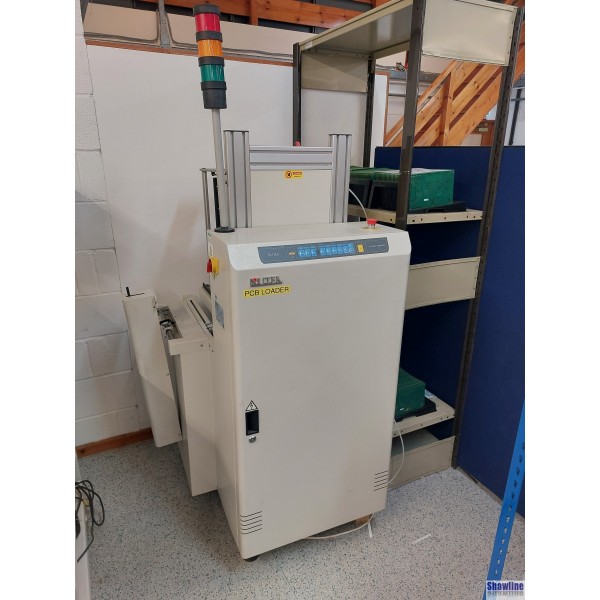

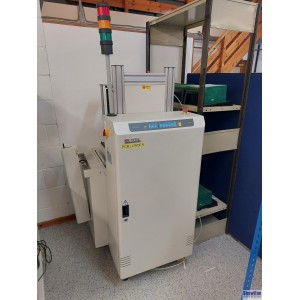

NUTEK Single Mag Line Loader 'L' Size
USED, Nutek Single Mag Line Loader, 2004
Categories
- Large PCB format 457 (L) x 407(W)mm
- Known Fault: Pitch selector button faulty - defaults to 'Pitch 1' (10mm)
- SMEMA working - enables repeat cycling until a PCB is 'delivered' to a downline machine
- Left to right running
- Front rail datum
- CE marked
|
Manufacturer: |
Nutek Singapore PTE http://www.nutek.com/ |
|
UK support from: |
Nutek UK Ltd., Colchester www.nutek-uk.com |
|
Model: |
NTE0710LL |
|
Serial no: |
2004-0190A01 |
|
Date of manufacture: |
April 2004 |
|
Production hours: |
Single shift unused since 2022 |
|
Description: |
Single Magazine Line Loader |
| Board transfer height: |
950 +/- 25 mm |
| Board length: |
80 - 457mm |
| Board width: |
80 - 407mm |
|
Components clearance: |
30mm topside, 30mm underside |
|
Pitch control: |
1 - 10mm (only pitch available as pitch selector not working) |
|
Max. magazine size: |
535 x 530 x 593mm (reduceable) |
| Max. magazine weight: |
50 kgs |
|
Power Supply: |
230v single phase, 50 Hz, 350VA max |
|
Air Supply: |
6 BAR (120 l/min approx.) |
|
Approx. Dims (L x D x H): |
1.33 x 1.05 x 1.33m |
|
Approx. Weight: |
180 kgs dry weight |
|
Availability: |
Jan 2026 |
