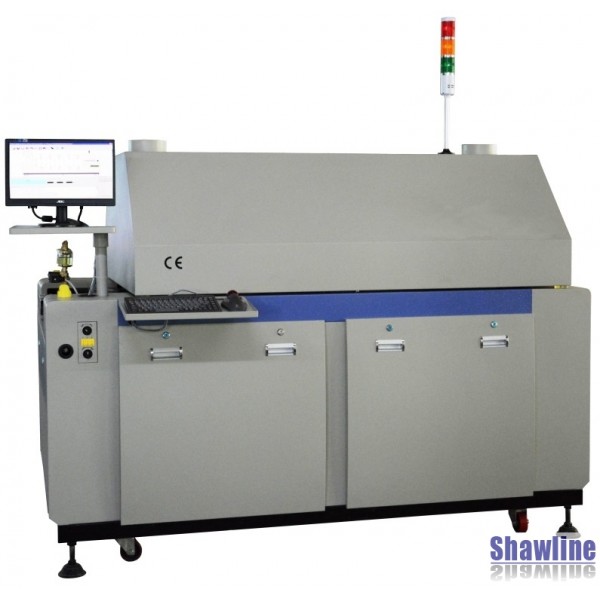

Low Energy 4 Zone Reflow Oven
NEW, 4 zone Low Energy Convection Reflow Oven
Categories
- RoHS Capable
- Fully CE Marked

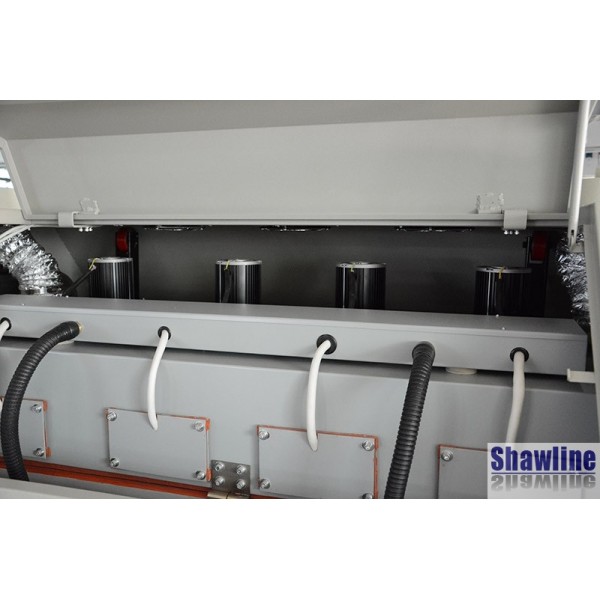

- 4 top and 2 bottom (controlled by top) PID controlled heaters
- ± 1 deg. C temperature stability
- ± 2 deg. C Delta-T process stability across process width
- Process temp alarms (per vertical zone)

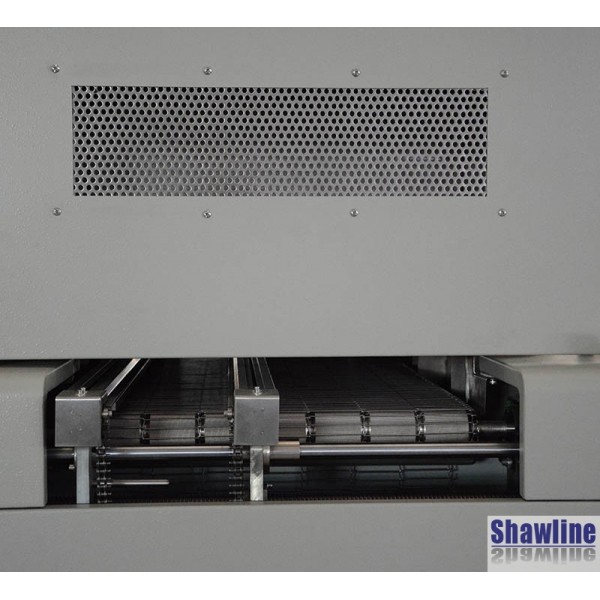

- Choice of edge pin or mesh belt with edge pin board transport system

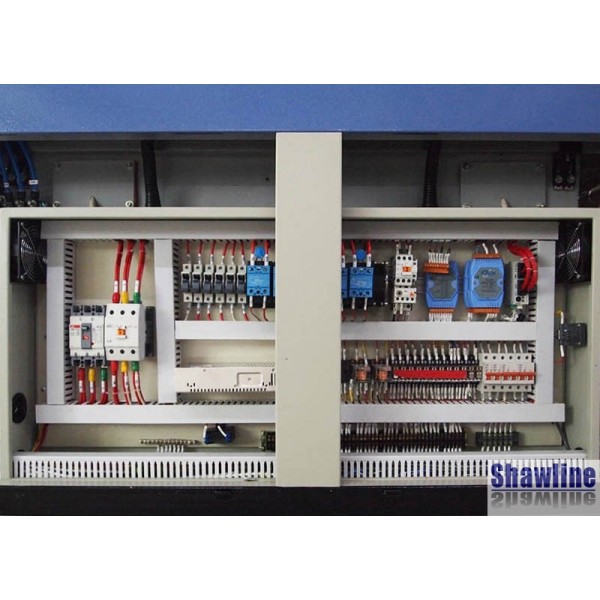

- PLC or Windows 10© Computer controlled
- On-board 3 channel profiling (with or without host PC)
- 15" LCD Monitor
- 12 months ALL Parts + 36 months heaters & blowers Warranty
- Full installation and training available
|
Manufacturer: |
CRE Manufacturing Equipment |
|
UK Support From: |
Shawline www.shawline.co.uk |
|
Models: |
CR-4000T (Mesh Belt) CR-4000C (Combi Mesh and Edge Pin) |
|
No of Heated Zones: |
4 vertical, with 4 top and 2 underside (controlled by top) |
|
Total Heated Length: |
132 cm |
|
Active Temperature Range: |
50°C to 300°C |
|
Heat Up Time: |
Ambient to 300°C in 25 mins (with full power start) |
|
Cooling: |
1 zone, ambient fan |
|
Conveyor Type: |
Mesh or edge pin with motor width adjust |
|
Conveyor Speed: |
20 to 900cm per min (L to R standard - R to L optional) |
|
Conveyor Width: |
Edge pin 50 to 400mm, mesh 500mm |
|
Conveyor Height: |
900 ±20mm standard (950 ±20mm with foot blocks) |
|
PCB Clearance (Edge Pin): |
Topside: 30mm, Underside: 25mm |
|
Power Supply: |
415 v 3 phase 50/60 Hz 60A max draw Current: 19 KW start-up, 4.0 - 4.5 KW running |
|
Air Supply: |
Not required |
|
Exhaust: |
2 x 200mm Ø lip vents @ 400 CFM ea (800 CFM Total) |
|
Approx. Dims (L x D x H): |
2.00 x 1.10 x 1.40m (WxDxH) excl. light tower |
|
Approx. Weight: |
NET 1030 kgs, SHIPPING 1100 kgs |
|
Availability: |
4 weeks build time + 4/6 weeks seafreight |
